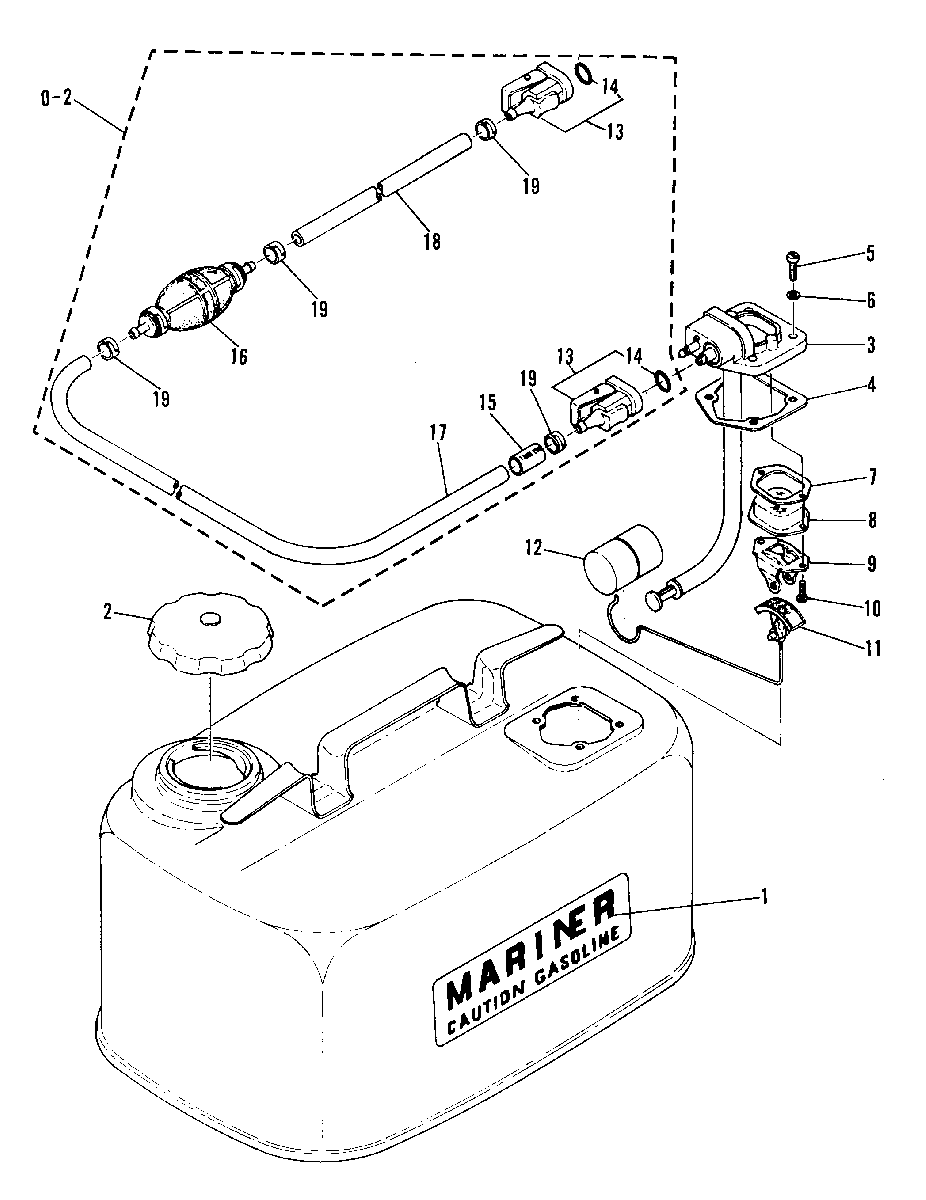

FUEL TANK-INTERNATIONAL ONLY (ORIGINAL EQUIPMENT) для Mariner - 48 670-34581 THRU 311995
-
№АртикулНазвание
-
0-11252-6836M FUEL TANK ASS'YFUEL TANK ASS'Y
-
137-82984M DECALDECAL
-
281694M FUEL TANK CAPFUEL TANK CAP
-
381321M HOUSING, FUEL CONNECTORHOUSING, FUEL CONNECTOR
-
427-81320M GASKET, HOUSING TO TANKGASKET, HOUSING TO TANK
-
510-83356M SCREW, HOUSING ATTACHINGSCREW, HOUSING ATTACHING
-
612-95501M WASHER, HOUSING SCREWWASHER, HOUSING SCREW
-
727-17540M GASKET, HOUSING TO LENS INDICATORGASKET, HOUSING TO LENS INDICATOR
-
880269M LENS, INDICATORLENS, INDICATOR
-
980268M SUPPORT, INDICATORSUPPORT, INDICATOR
-
1010-83523M SCREW, SUPPORT ATTACHINGSCREW, SUPPORT ATTACHING
-
1181318M INDICATORINDICATOR
-
1281319M FLOAT, INDICATORFLOAT, INDICATOR
-
0-232-877681Q8 FUEL HOSE ASS'YFUEL HOSE ASS'Y
-
1322-14213Q CONNECTOR HOUSINGCONNECTOR HOUSING
-
1425-82789M O-RINGO-RING
-
1523-81327M SLEEVE, HOSESLEEVE, HOSE
-
1689396Q01 BULB, PRIMERBULB, PRIMER
-
1732-94727M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
1832-94727M HOSE, BULB TO CONNECTORHOSE, BULB TO CONNECTOR
-
1954-16725M CLAMP, HOSECLAMP, HOSE
