CRANKSHAFT AND PISTON для Mariner - 48 670-34581 THRU 311995

  • №
    Артикул
    Название
  • 0-1
    1651-7978M GEAR HOUSING ASS'Y (SHORT SHAFT)
    GEAR HOUSING ASS'Y (SHORT SHAFT)
  • 0-1
    1651-7979M GEAR HOUSING ASS'Y (LONG SHAFT)
    GEAR HOUSING ASS'Y (LONG SHAFT)
  • 1
    1651-7971M GEAR HOUSING
    GEAR HOUSING
  • 2
    81449M GUIDE, SEAL
    GUIDE, SEAL
  • 3
    22-81924M SCREW
    SCREW
  • 4
    27-81987 GASKET
    GASKET
  • 5
    81445M COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 6
    25-82281M O-RING
    O-RING
  • 7
    26-82257M OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 8
    10-84368M BOLT
    BOLT
  • 9
    12-82214M WASHER
    WASHER
  • 10
    81408M ROD, SHIFT - LOWER
    ROD, SHIFT - LOWER
  • 11
    53-82334M SNAP RING
    SNAP RING
  • 12
    81409M CAM, SHIFT
    CAM, SHIFT
  • 13
    45-81678M DRIVESHAFT (SHORT SHAFT)
    DRIVESHAFT (SHORT SHAFT)
  • 13
    45-81679M DRIVESHAFT (LONG SHAFT)
    DRIVESHAFT (LONG SHAFT)
  • 14
    31-82319T BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 15
    15-81467M SHIM, DRIVESHAFT BEARING (.05 MM)
    SHIM, DRIVESHAFT BEARING (.05 MM)
  • 15
    15-81468M SHIM, DRIVESHAFT BEARING (.08 MM)
    SHIM, DRIVESHAFT BEARING (.08 MM)
  • 15
    15-19148002 SHIM, DRIVESHAFT BEARING (.12 MM)
    SHIM, DRIVESHAFT BEARING (.12 MM)
  • 15
    15-19148004 SHIM, DRIVESHAFT BEARING (.30 MM)
    SHIM, DRIVESHAFT BEARING (.30 MM)
  • 15
    15-19153M SHIM, DRIVESHAFT BEARING (.50 MM)
    SHIM, DRIVESHAFT BEARING (.50 MM)
  • 16
    23-81453M SLEEVE, DRIVESHAFT
    SLEEVE, DRIVESHAFT
  • 17
    31-82316T BEARING, NEEDLE
    BEARING, NEEDLE
  • 18
    12-81455M THRUST WASHER
    THRUST WASHER
  • 19
    11-81772M NUT, DRIVESHAFT
    NUT, DRIVESHAFT
  • 20
    43-81454M GEAR SET
    GEAR SET
  • 21
    43-84442T GEAR, PINION
    GEAR, PINION
  • 22
    43-84443T GEAR, FORWARD
    GEAR, FORWARD
  • 23
    43-84444T GEAR, REVERSE
    GEAR, REVERSE
  • 24
    15-81456M SHIM, FORWARD GEAR ADJUST (.05 MM)
    SHIM, FORWARD GEAR ADJUST (.05 MM)
  • 24
    15-81457M SHIM, FORWARD GEAR ADJUST (.08 MM)
    SHIM, FORWARD GEAR ADJUST (.08 MM)
  • 24
    15-19148003 SHIM, FORWARD GEAR ADJUST (.12 MM)
    SHIM, FORWARD GEAR ADJUST (.12 MM)
  • 24
    15-19158M SHIM, FORWARD GEAR ADJUST (.30 MM)
    SHIM, FORWARD GEAR ADJUST (.30 MM)
  • 24
    15-81460M SHIM, FORWARD GEAR ADJUST (.50 MM)
    SHIM, FORWARD GEAR ADJUST (.50 MM)
  • 25
    31-82320T BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 26
    52-81473T CLUTCH
    CLUTCH
  • 27
    81474M RING, CROSS PIN
    RING, CROSS PIN
  • 28
    17-81903M CROSS PIN, CLUTCH
    CROSS PIN, CLUTCH
  • 29
    92643M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 30
    81475M SLIDE, SHIFT
    SLIDE, SHIFT
  • 31
    24-82091M SPRING, SHIFT
    SPRING, SHIFT
  • 32
    44-92644M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 33
    12-81837M WASHER, REVERSE GEAR
    WASHER, REVERSE GEAR
  • 34
    15-81462M SHIM, REVERSE GEAR ADJUST (.05 MM)
    SHIM, REVERSE GEAR ADJUST (.05 MM)
  • 34
    15-81463M SHIM, REVERSE GEAR ADJUST (.08 MM)
    SHIM, REVERSE GEAR ADJUST (.08 MM)
  • 34
    15-19163002 SHIM, REVERSE GEAR ADJUST (.12 MM)
    SHIM, REVERSE GEAR ADJUST (.12 MM)
  • 34
    15-19163001 SHIM, REVERSE GEAR ADJUST (.30 MM)
    SHIM, REVERSE GEAR ADJUST (.30 MM)
  • 34
    15-19165M SHIM, REVERSE GEAR ADJUST (.50 MM)
    SHIM, REVERSE GEAR ADJUST (.50 MM)
  • 35
    12-81461M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 36
    30-82296T BEARING, BALL
    BEARING, BALL
  • 37
    25-82289M O-RING
    O-RING
  • 38
    81446M BEARING, CARRIER
    BEARING, CARRIER
  • 39
    28-81916M KEY
    KEY
  • 40
    31-82317M BEARING, NEEDLE
    BEARING, NEEDLE
  • 41
    26-854017 OIL SEAL, PROPELLER SHAFT
    OIL SEAL, PROPELLER SHAFT
  • 42
    14-81877M WASHER, CLAW
    WASHER, CLAW
  • 43
    11-8M0059031 NUT
    NUT
  • 44
    46-81416M BODY, WATER PUMP
    BODY, WATER PUMP
  • 45
    81672M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 46
    83131M INNER PLATE, CARTRIDGE
    INNER PLATE, CARTRIDGE
  • 47
    47-97108M IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 48
    28-81912M KEY
    KEY
  • 49
    27-81417 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 50
    81673M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 51
    27-81421M GASKET, CARTRIDGE OUTER PLATE
    GASKET, CARTRIDGE OUTER PLATE
  • 52
    46-81422M BASE, WATER PUMP
    BASE, WATER PUMP
  • 53
    27-81418M GASKET, WATER PUMP BASE
    GASKET, WATER PUMP BASE
  • 54
    25-82275M O-RING
    O-RING
  • 55
    26-82234M OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 56
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 57
    10-84057M BOLT
    BOLT
  • 58
    10-85277614 BOLT
    BOLT
  • 59
    12-82217M WASHER
    WASHER
  • 60
    26-81426M SEAL
    SEAL
  • 61
    81448M SEAL, RUBBER
    SEAL, RUBBER
  • 62
    19166M COVER, WATER INLET - PORT
    COVER, WATER INLET - PORT
  • 63
    19167M COVER, WATER INLET - STARBOARD
    COVER, WATER INLET - STARBOARD
  • 64
    10-82484M SCREW
    SCREW
  • 65
    11-8528165 NUT
    NUT
  • 66
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 67
    11-82395M NUT
    NUT
  • 68
    13-82218M WASHER, LOCK
    WASHER, LOCK
  • 69
    10-81706M BOLT
    BOLT
  • 70
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 71
    83859T TRIM TAB
    TRIM TAB
  • 72
    10-82801M BOLT, TRIM TAB ATTACHING
    BOLT, TRIM TAB ATTACHING
  • 73
    98937M GUIDE, REVERSE TAB
    GUIDE, REVERSE TAB
  • 74
    81410M CAM, REVERSE ROD
    CAM, REVERSE ROD
  • 75
    73345A1 THRUST WASHER, FORWARD
    THRUST WASHER, FORWARD
  • 75
    12-81477M THRUST WASHER, FORWARD (SEE NOTE)
    THRUST WASHER, FORWARD (SEE NOTE)
  • 76
    23-83193M SPACER, PROPELLER NUT (SEE NOTE)
    SPACER, PROPELLER NUT (SEE NOTE)
  • 77
    83064M CAP, THRUST PLATE (SEE NOTE)
    CAP, THRUST PLATE (SEE NOTE)
  • 78
    859935 NUT, PROPELLER
    NUT, PROPELLER
  • 79
    18-95295 PIN, COTTER
    PIN, COTTER
  • 80
    12-81852M WASHER, WATER TUBE
    WASHER, WATER TUBE
  • 81
    32-81674M TUBE, WATER (SHORT SHAFT)
    TUBE, WATER (SHORT SHAFT)
  • 81
    32-81675M TUBE, WATER (LONG SHAFT)
    TUBE, WATER (LONG SHAFT)
  • 82
    25-81989M GASKET, WATER TUBE
    GASKET, WATER TUBE
  • 83
    81428M SET PLATE, WATER TUBE
    SET PLATE, WATER TUBE
  • 84
    10-91772M BOLT
    BOLT
  • 85
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 86
    26-81427M SEAL, WATER TUBE - LOWER
    SEAL, WATER TUBE - LOWER
  • 87
    22-8M0121335 PLUG, WATER FLUSH (OPT)
    PLUG, WATER FLUSH (OPT)
  • 87
    27-84179M GASKET SET, LOWER UNIT
    GASKET SET, LOWER UNIT
  • 87
    84187T REPAIR KIT, WATER PUMP
    REPAIR KIT, WATER PUMP

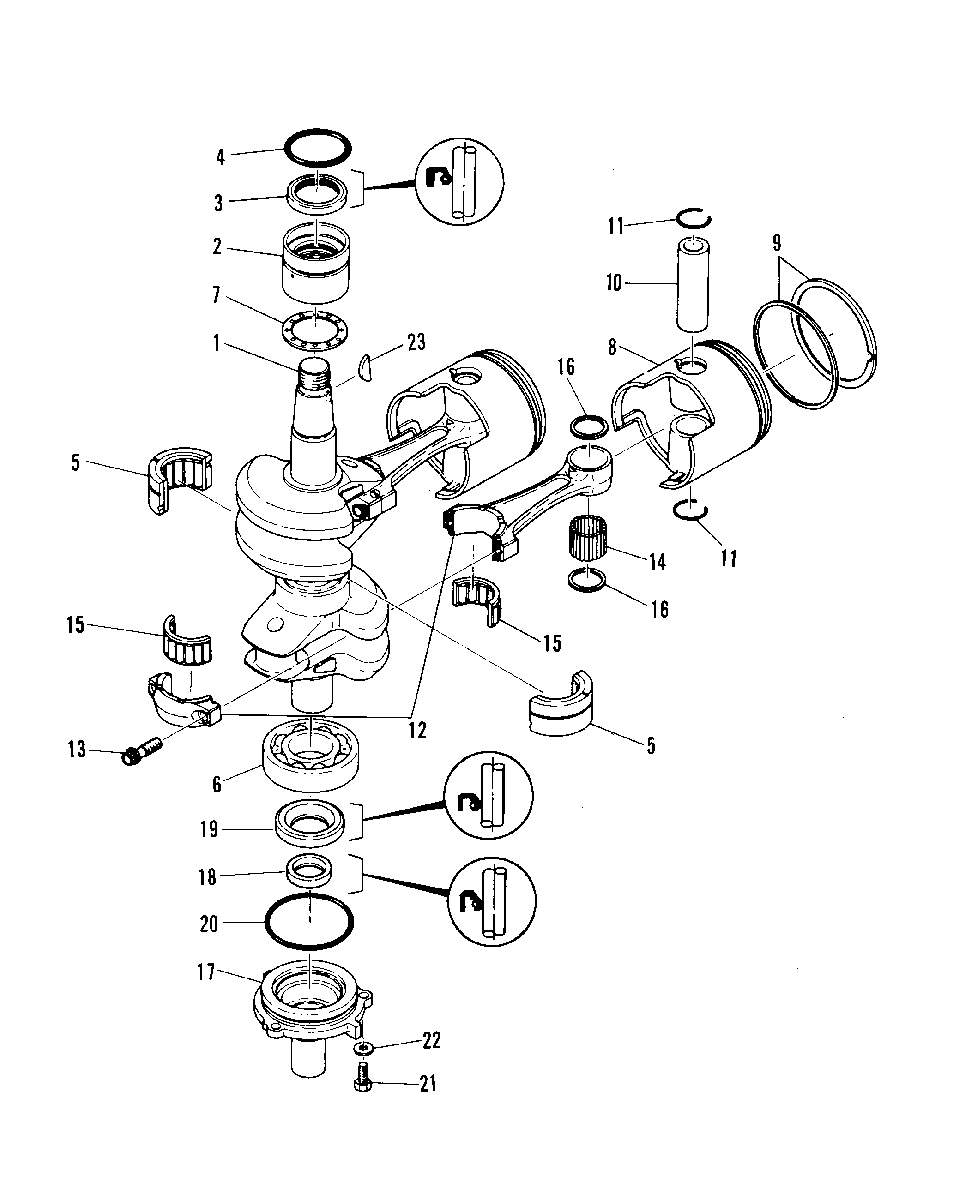

  • 1
    463-6825M CRANKSHAFT ASS'Y
    CRANKSHAFT ASS'Y
  • 2
    31-82312T BEARING, NEEDLE
    BEARING, NEEDLE
  • 3
    26-82249M OIL SEAL, CRANKSHAFT - UPPER
    OIL SEAL, CRANKSHAFT - UPPER
  • 4
    25-82276M O-RING, CRANKSHAFT - UPPER
    O-RING, CRANKSHAFT - UPPER
  • 5
    31-97837T BEARING, CENTER MAIN
    BEARING, CENTER MAIN
  • 6
    30-814560T BEARING, CRANKSHAFT - LOWER
    BEARING, CRANKSHAFT - LOWER
  • 7
    15-81259M SHIM, CRANKSHAFT
    SHIM, CRANKSHAFT
  • 8
    761-8462M PISTON (STD) (81.95 MM)
    PISTON (STD) (81.95 MM)
  • 8
    761-8462M PISTON (STD) (81.96 MM)
    PISTON (STD) (81.96 MM)
  • 8
    761-8462M PISTON (STD) (81.97 MM)
    PISTON (STD) (81.97 MM)
  • 8
    761-8463M PISTON (1ST O.S. - 82.25 MM)
    PISTON (1ST O.S. - 82.25 MM)
  • 8
    761-8464T PISTON (2ND O.S. - 82.50 MM)
    PISTON (2ND O.S. - 82.50 MM)
  • 9
    39-83195M PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 9
    39-83196M PISTON RING SET (1ST O.S. - 82.25 MM)
    PISTON RING SET (1ST O.S. - 82.25 MM)
  • 9
    39-83197T PISTON RING SET (2ND O.S. - 82.25 MM)
    PISTON RING SET (2ND O.S. - 82.25 MM)
  • 10
    41-81263T PIN, PISTON
    PIN, PISTON
  • 11
    53-81264M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 12
    629-8401M CONNECTING ROD ASS'Y
    CONNECTING ROD ASS'Y
  • 13
    10-81715M BOLT, ROD CAP
    BOLT, ROD CAP
  • 14
    29-82353M BEARING, NEEDLE - CONNECTING ROD
    BEARING, NEEDLE - CONNECTING ROD
  • 15
    31-97710M BEARING, CONNECTING ROD
    BEARING, CONNECTING ROD
  • 16
    12-81831M RETAINER
    RETAINER
  • 17
    41828M HOUSING, OIL SEAL
    HOUSING, OIL SEAL
  • 18
    26-82255M OIL SEAL, CRANKSHAFT - LOWER
    OIL SEAL, CRANKSHAFT - LOWER
  • 19
    26-82248M OIL SEAL, CRANKSHAFT - LOWER
    OIL SEAL, CRANKSHAFT - LOWER
  • 20
    25-82286M O-RING, OIL SEAL HOUSING
    O-RING, OIL SEAL HOUSING
  • 21
    10-826957M BOLT
    BOLT
  • 22
    12-82214M WASHER
    WASHER
  • 23
    28-81915M KEY, CRANKSHAFT TO FLYWHEEL
    KEY, CRANKSHAFT TO FLYWHEEL
