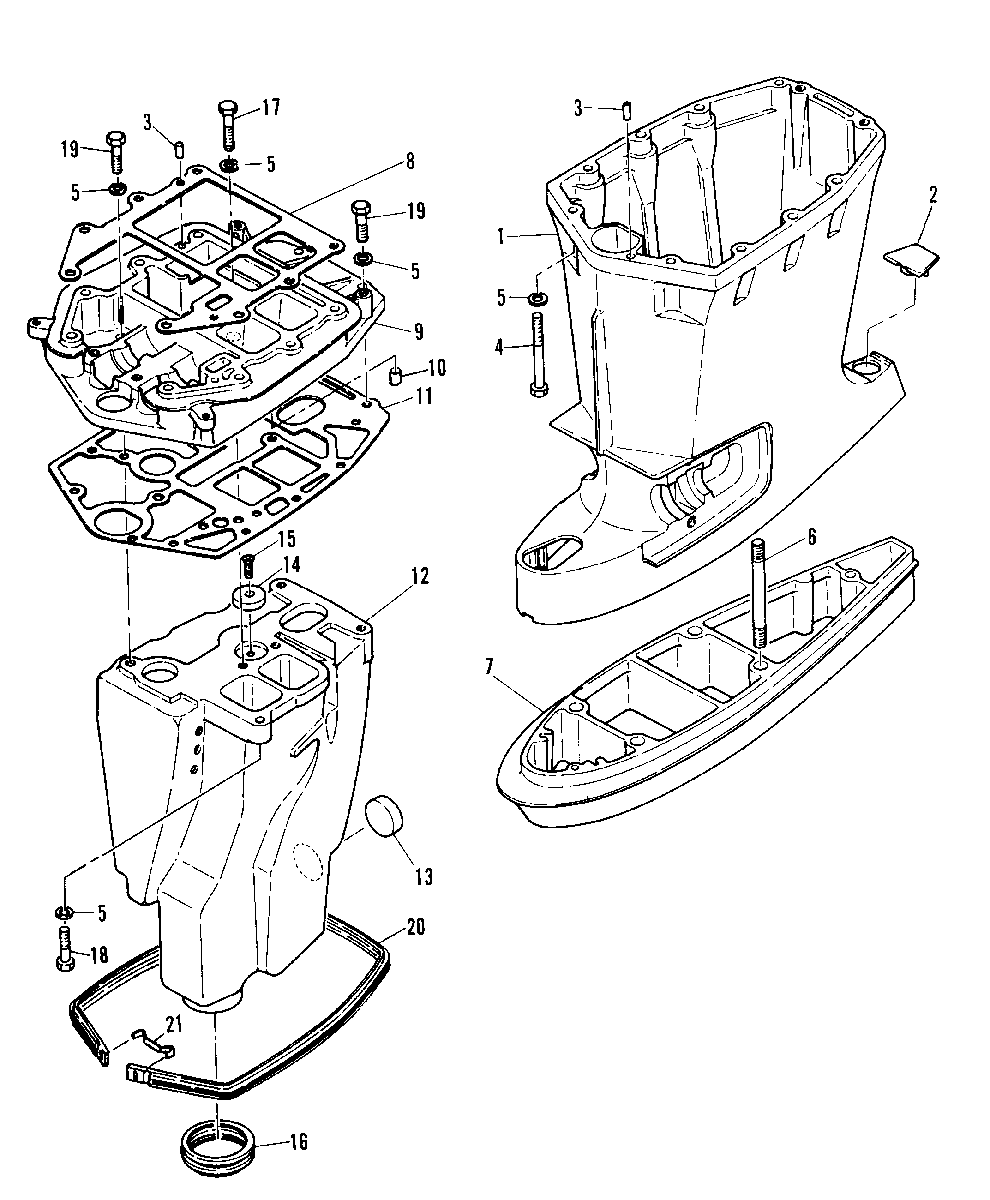

DRIVESHAFT HOUSING для Mariner - 48 670-34581 THRU 311995

  • №
    Артикул
    Название
  • 1
    1587-8615M DRIVESHAFT HOUSING (SHORT SHAFT)
    DRIVESHAFT HOUSING (SHORT SHAFT)
  • 1
    1587-8616M DRIVESHAFT HOUSING (LONG SHAFT)
    DRIVESHAFT HOUSING (LONG SHAFT)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
    CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (LONG SHAFT)
    CAP, DRIVESHAFT HOUSING (LONG SHAFT)
  • 3
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 4
    10-84427M BOLT
    BOLT
  • 5
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 6
    16-81744M STUD
    STUD
  • 7
    82559M EXTENSION
    EXTENSION
  • 8
    27-16717 GASKET, EXHAUST GUIDE - UPPER
    GASKET, EXHAUST GUIDE - UPPER
  • 9
    41849M GUIDE, EXHAUSE
    GUIDE, EXHAUSE
  • 10
    23-84426M BUSHING
    BUSHING
  • 11
    27-98952M GASKET, EXHAUST GUIDE
    GASKET, EXHAUST GUIDE
  • 12
    1587-8911M DRIVESHAFT HOUSING, INNER (SHORT SHAFT)
    DRIVESHAFT HOUSING, INNER (SHORT SHAFT)
  • 12
    1587-6833M DRIVESHAFT HOUSING, INNER (SHORT SHAFT)
    DRIVESHAFT HOUSING, INNER (SHORT SHAFT)
  • 12
    1587-8912M DRIVESHAFT HOUSING, INNER (LONG SHAFT)
    DRIVESHAFT HOUSING, INNER (LONG SHAFT)
  • 12
    1587-6834M DRIVESHAFT HOUSING, INNER (LONG SHAFT)
    DRIVESHAFT HOUSING, INNER (LONG SHAFT)
  • 13
    19-81922M PLUG
    PLUG
  • 14
    84422M ANODE
    ANODE
  • 14
    43107M ANODE
    ANODE
  • 15
    10-92679M SCREW
    SCREW
  • 15
    10-84367M SCREW
    SCREW
  • 16
    27-81440M SEAL, INNER TO OUTER HOUSING
    SEAL, INNER TO OUTER HOUSING
  • 17
    10-97749M BOLT
    BOLT
  • 18
    10-82442M BOLT
    BOLT
  • 19
    10-95416M BOLT
    BOLT
  • 20
    27-83033M SEAL, RUBBER
    SEAL, RUBBER
  • 21
    83034M HOOK, RUBBER SEAL
    HOOK, RUBBER SEAL
