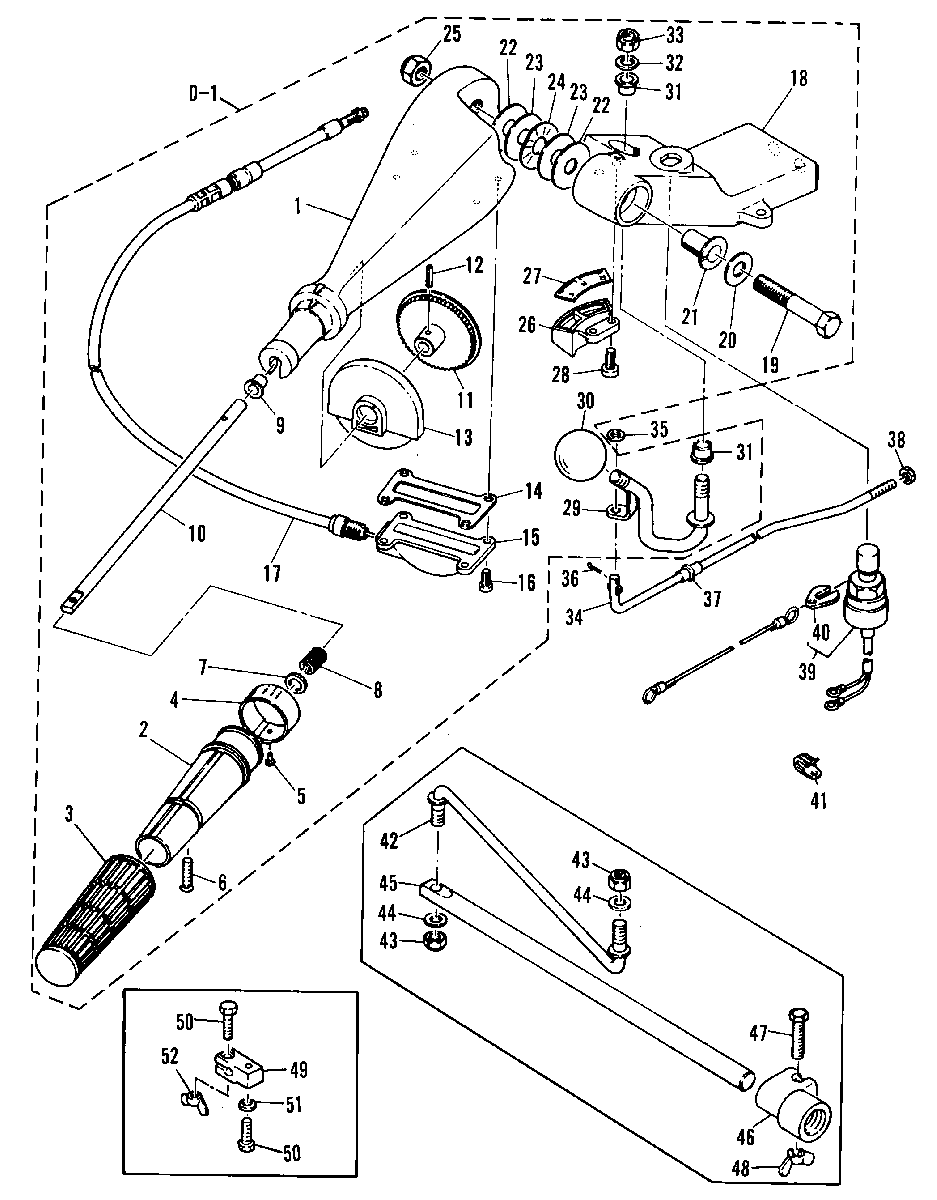

STEERING HANDLE для Mariner - 48 670-02641 THRU 002160

  • №
    Артикул
    Название
  • 0-1
    92680M STEERING HANDLE ASS'Y
    STEERING HANDLE ASS'Y
  • 1
    82553M ARM, STEERING
    ARM, STEERING
  • 2
    81585M HANDLE, THROTTLE
    HANDLE, THROTTLE
  • 3
    80509M GRIP, THROTTLE HANDLE
    GRIP, THROTTLE HANDLE
  • 4
    98947M INDICATOR, THROTTLE
    INDICATOR, THROTTLE
  • 5
    17-81907M RIVET
    RIVET
  • 6
    10-811916M SCREW
    SCREW
  • 7
    12-82220M WASHER
    WASHER
  • 8
    24-82095M SPRING, THROTTLE SHAFT
    SPRING, THROTTLE SHAFT
  • 9
    23-81945M BUSHING
    BUSHING
  • 10
    81351M SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 11
    81357T CAM, THROTTLE
    CAM, THROTTLE
  • 12
    17-82152M PIN, ROLL
    PIN, ROLL
  • 13
    81355M HOUSING, THROTTLE CAM
    HOUSING, THROTTLE CAM
  • 14
    27-81353M GASKET, THROTTLE CAM COVER
    GASKET, THROTTLE CAM COVER
  • 15
    81354M COVER, THROTTLE CAM
    COVER, THROTTLE CAM
  • 16
    10-82495M SCREW
    SCREW
  • 17
    81329M THROTTLE CABLE
    THROTTLE CABLE
  • 18
    83148M BRACKET, STEERING
    BRACKET, STEERING
  • 19
    10-81710M BOLT
    BOLT
  • 20
    12-82221M WASHER
    WASHER
  • 21
    23-81950M BUSHING
    BUSHING
  • 22
    12-81853M WASHER
    WASHER
  • 23
    12-81815M WASHER
    WASHER
  • 24
    13-81870M WASHER, WAVE
    WASHER, WAVE
  • 25
    11-81786M NUT, ARM BOLT
    NUT, ARM BOLT
  • 26
    81402M BRACKET, INDICATOR
    BRACKET, INDICATOR
  • 27
    81414M INDICATOR, F-N-R
    INDICATOR, F-N-R
  • 28
    10-83870M SCREW
    SCREW
  • 29
    81411M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 30
    81413M KNOB, SHIFT CONTROL
    KNOB, SHIFT CONTROL
  • 31
    23-81946M BUSHING
    BUSHING
  • 32
    12-81804M WASHER
    WASHER
  • 33
    11-81785M NUT
    NUT
  • 34
    81358M ROD, MANUAL SHIFT
    ROD, MANUAL SHIFT
  • 35
    12-82214M WASHER
    WASHER
  • 36
    18-84301M PIN, COTTER
    PIN, COTTER
  • 37
    23-81943M BUSHING
    BUSHING
  • 38
    11-82920M NUT, CABLE END
    NUT, CABLE END
  • 39
    87-98955M KILL SWITCH ASS'Y
    KILL SWITCH ASS'Y
  • 40
    97756M STOPPER
    STOPPER
  • 41
    54-82041M CLAMP, WIRE
    CLAMP, WIRE
  • 42
    41848M ROD, STEERING LINK (OPTIONAL PARTS)
    ROD, STEERING LINK (OPTIONAL PARTS)
  • 43
    11-84295M NUT (OPTIONAL PARTS)
    NUT (OPTIONAL PARTS)
  • 44
    12-82217M WASHER (OPTIONAL PARTS)
    WASHER (OPTIONAL PARTS)
  • 45
    83705M SHAFT, FRICTION (OPTIONAL PARTS)
    SHAFT, FRICTION (OPTIONAL PARTS)
  • 46
    83706M PIECE, FRICTION (OPTIONAL PARTS)
    PIECE, FRICTION (OPTIONAL PARTS)
  • 47
    10-83285M BOLT (OPTIONAL PARTS)
    BOLT (OPTIONAL PARTS)
  • 48
    11-82703M NUT, WING (OPTIONAL PARTS)
    NUT, WING (OPTIONAL PARTS)
  • 49
    19173M PIECE, FRICTION (THROTTLE) (OPTIONAL PARTS)
    PIECE, FRICTION (THROTTLE) (OPTIONAL PARTS)
  • 50
    10-82405M BOLT (OPTIONAL PARTS)
    BOLT (OPTIONAL PARTS)
  • 51
    12-82214M WASHER (OPTIONAL PARTS)
    WASHER (OPTIONAL PARTS)
  • 52
    11-82703M NUT, WING (OPTIONAL PARTS)
    NUT, WING (OPTIONAL PARTS)
