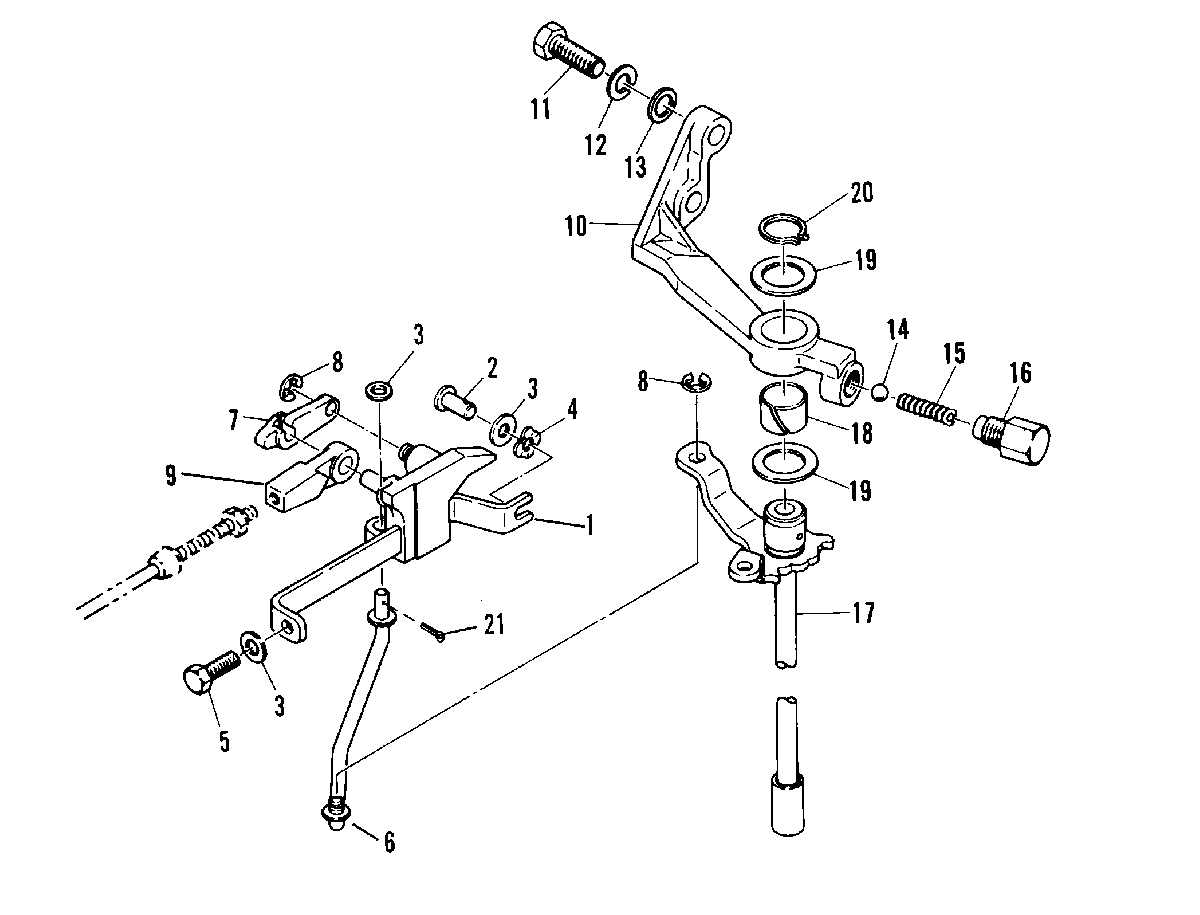

GEAR SHIFT LINKAGE для Mariner - 48 670-02641 THRU 002160

  • №
    Артикул
    Название
  • 1
    98919M BRACKET, SHIFT
    BRACKET, SHIFT
  • 2
    17-82137M PIN, CLEVIS
    PIN, CLEVIS
  • 3
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 4
    13-81866M WASHER, WAVE
    WASHER, WAVE
  • 5
    10-82423M BOLT
    BOLT
  • 6
    84209M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 7
    92657M RETAINER, CLEVIS
    RETAINER, CLEVIS
  • 8
    53-82330M SNAP RING
    SNAP RING
  • 9
    81480M CLEVIS, SHIFT CONTROL CABLE
    CLEVIS, SHIFT CONTROL CABLE
  • 10
    82556M BRACKET, SHIFT ROD
    BRACKET, SHIFT ROD
  • 11
    10-82441M BOLT
    BOLT
  • 12
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 13
    12-82217M WASHER
    WASHER
  • 14
    82346M BALL, DETENT
    BALL, DETENT
  • 15
    24-82081M SPRING, DETENT
    SPRING, DETENT
  • 16
    23-80635M RETAINER, COMPRESSION SPRING
    RETAINER, COMPRESSION SPRING
  • 17
    81670M SHIFT ROD ASS'Y, UPPER (SHORT SHAFT)
    SHIFT ROD ASS'Y, UPPER (SHORT SHAFT)
  • 17
    81671M SHIFT ROD ASS'Y, UPPER (LONG SHAFT)
    SHIFT ROD ASS'Y, UPPER (LONG SHAFT)
  • 18
    23-81953M BUSHING
    BUSHING
  • 19
    12-81858M SPACER, SHIFT ROD
    SPACER, SHIFT ROD
  • 20
    53-19259M SNAP RING
    SNAP RING
  • 21
    18-43089M PIN, COTTER
    PIN, COTTER
