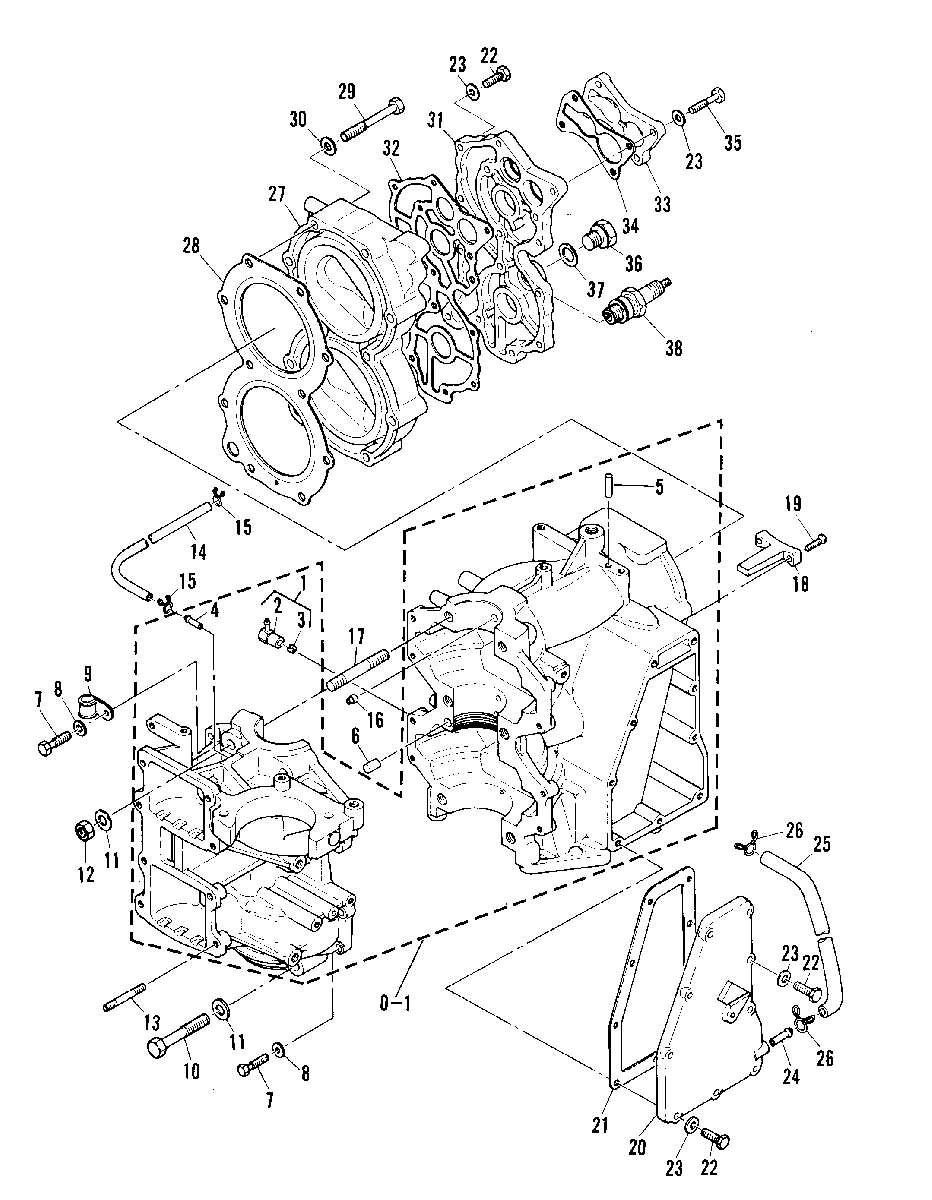

CRANKCASE AND CYLINDER HEAD для Mariner - 48 670-02641 THRU 002160
-
№АртикулНазвание
-
0-1870-8913M CRANKCASE AND CYLINDER ASS'YCRANKCASE AND CYLINDER ASS'Y
-
121-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
222-82975M NIPPLE, HOSENIPPLE, HOSE
-
321-80107M VALVE, CHECKVALVE, CHECK
-
422-80122M FITTING, CRANKCASE DRAINFITTING, CRANKCASE DRAIN
-
517-82354M PIN, DOWELPIN, DOWEL
-
617-82368M PIN, DOWELPIN, DOWEL
-
710-82405M BOLTBOLT
-
812-81792M WASHERWASHER
-
954-82033M CLAMP, WIRECLAMP, WIRE
-
1010-82410M BOLTBOLT
-
1112-81807M WASHERWASHER
-
1211-82387M NUTNUT
-
1316-81735M STUDSTUD
-
1432-811045M HOSE, DRAINHOSE, DRAIN
-
1554-82046M CLAMP, HOSECLAMP, HOSE
-
1617-81258M LOCK, BEARINGLOCK, BEARING
-
1716-81743M STUDSTUD
-
1881255M ANODEANODE
-
1910-82532M SCREWSCREW
-
2081330M COVER, EXHAUST - OUTERCOVER, EXHAUST - OUTER
-
2127-81331M GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2210-84058M BOLTBOLT
-
2312-82214M WASHER, LOCKWASHER, LOCK
-
2422-94716M FITTING, EXHAUST COVERFITTING, EXHAUST COVER
-
2532-81324M HOSE, EXHAUSE COVERHOSE, EXHAUSE COVER
-
2654-82047M CLAMP, HOSECLAMP, HOSE
-
27968-7974M HEAD, CYLINDERHEAD, CYLINDER
-
2827-19140 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2910-82409M BOLTBOLT
-
3012-80564M WASHERWASHER
-
3181253M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
3227-81254M GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
3381265M COVER, THERMOSTATCOVER, THERMOSTAT
-
3427-81266M GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
3510-83285M BOLTBOLT
-
3622-81926M PLUG, COVERPLUG, COVER
-
3727-81990M GASKET, COVER PLUGGASKET, COVER PLUG
-
3833-8M0114739 SPARK PLUG B-7HS - (NGK)SPARK PLUG B-7HS - (NGK)
-
41301M POWRHEAD ASS'Y, COMPLETE (SEE NOTE)POWRHEAD ASS'Y, COMPLETE (SEE NOTE)
-
27-84168M GASGET SET, POWERHEADGASGET SET, POWERHEAD
