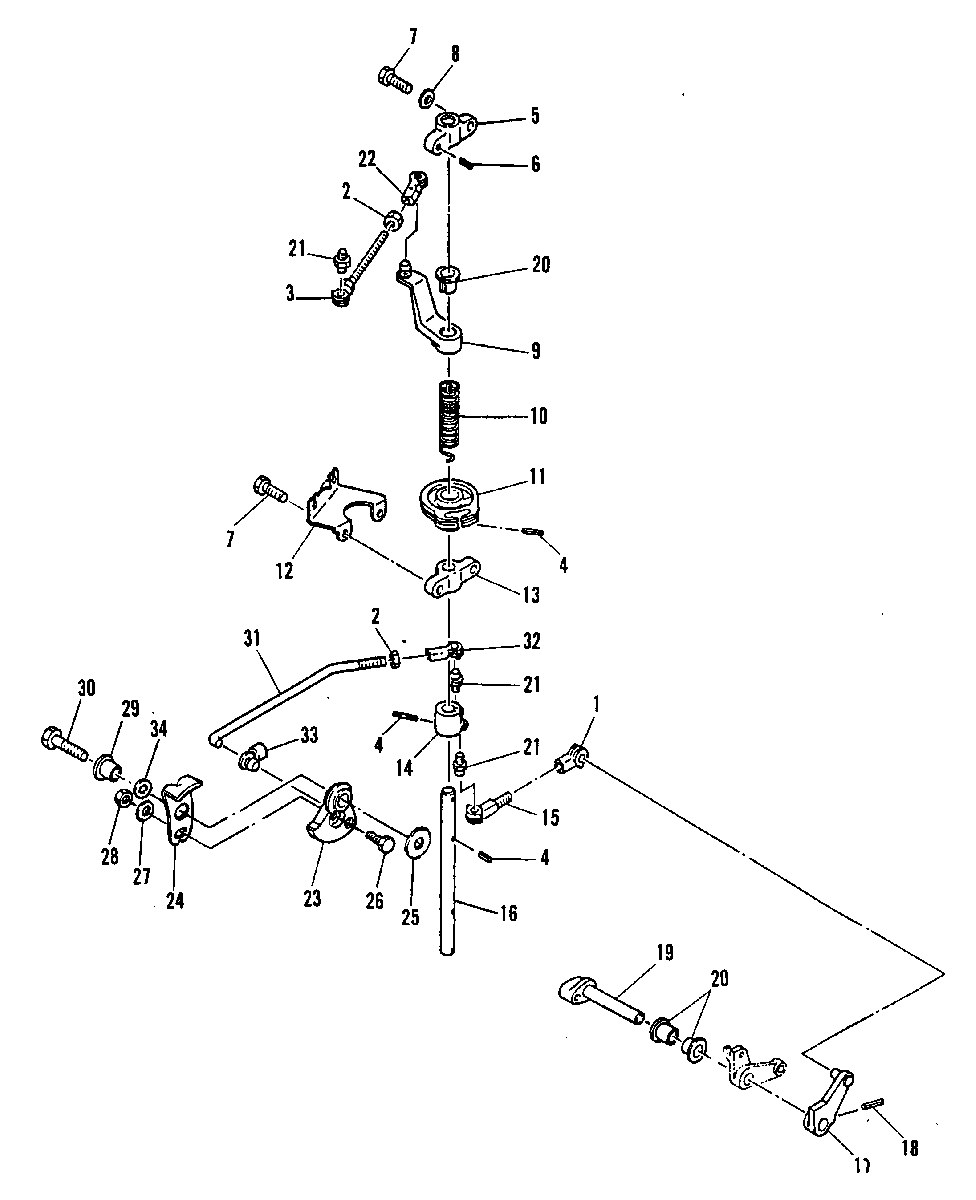

THROTTLE CONTROL для Mariner - 40C (TWIN CARB) 6E9-300126 THRU 6E9-309343 (ML)

  • №
    Артикул
    Название
  • 1
    16715M RETAINER, LINK ROD
    RETAINER, LINK ROD
  • 2
    11-82388M NUT
    NUT
  • 3
    84101M ROD, MAGNETO CONTROL
    ROD, MAGNETO CONTROL
  • 4
    17-82149M PIN, ROLL
    PIN, ROLL
  • 5
    83547M BRACKET
    BRACKET
  • 6
    17-82154M PIN, ROLL
    PIN, ROLL
  • 7
    10-84058M BOLT
    BOLT
  • 8
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 9
    83548M LEVER, MAGNETO CONTROL
    LEVER, MAGNETO CONTROL
  • 10
    24-83549M SPRING
    SPRING
  • 11
    83919M PULLEY
    PULLEY
  • 12
    83551M BRACKET
    BRACKET
  • 13
    83537M BRACKET
    BRACKET
  • 14
    97739M LEVER, MAGNETO CONTROL
    LEVER, MAGNETO CONTROL
  • 15
    83921M ROD
    ROD
  • 16
    83555M SHAFT, LINK CONNECTING
    SHAFT, LINK CONNECTING
  • 17
    83526M LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 18
    17-82158M PIN, ROLL
    PIN, ROLL
  • 19
    83527T SHAFT, THROTTLE CONTROL
    SHAFT, THROTTLE CONTROL
  • 20
    23-81946M BUSHING
    BUSHING
  • 21
    84305M BALL JOINT
    BALL JOINT
  • 22
    84100M RETAINER, LINK ROD
    RETAINER, LINK ROD
  • 23
    97740M CAM, ACCEL
    CAM, ACCEL
  • 24
    97758M THROTTLE LIMITER (M AND ML MODELS ONLY)
    THROTTLE LIMITER (M AND ML MODELS ONLY)
  • 25
    12-81796M WASHER (M AND ML MODELS ONLY)
    WASHER (M AND ML MODELS ONLY)
  • 26
    10-82417M BOLT (M AND ML MODELS ONLY)
    BOLT (M AND ML MODELS ONLY)
  • 27
    12-82211M WASHER (M AND ML MODELS ONLY)
    WASHER (M AND ML MODELS ONLY)
  • 28
    11-82388M NUT (M AND ML MODELS ONLY)
    NUT (M AND ML MODELS ONLY)
  • 29
    23-94503M COLLAR
    COLLAR
  • 30
    10-83285M BOLT
    BOLT
  • 31
    97741M LINK, ACCEL
    LINK, ACCEL
  • 32
    16715M RETAINER
    RETAINER
  • 33
    97742M RETAINER
    RETAINER
  • 34
    13-81868M WASHER
    SERIAL 00004991-09999999
    WASHER
    SERIAL 00004991-09999999
