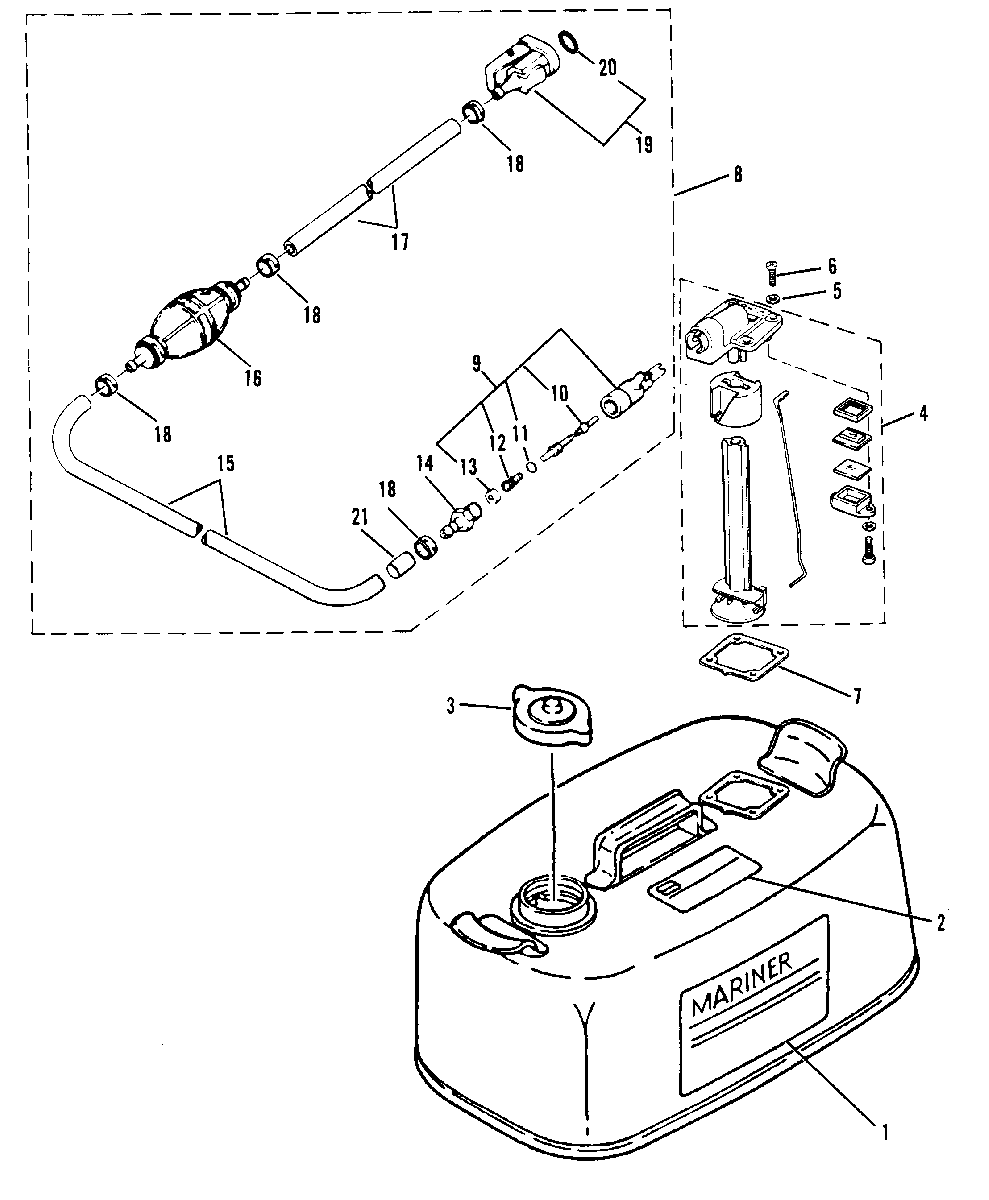

FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT) для Mariner - 40C (TWIN CARB) 6E9-300126 THRU 6E9-309343 (ML)

  • №
    Артикул
    Название
  • 1
    37-14617M DECAL, SIDE (ENGLISH)
    DECAL, SIDE (ENGLISH)
  • 1
    37-95504M DECAL, SIDE (FRENCH)
    DECAL, SIDE (FRENCH)
  • 2
    37-95489M DECAL, TOP (ENGLISH)
    DECAL, TOP (ENGLISH)
  • 2
    37-95503M DECAL, TOP (FRENCH)
    DECAL, TOP (FRENCH)
  • 3
    36-18962M FUEL TANK CAP
    FUEL TANK CAP
  • 4
    95499M FUEL METER ASS'Y
    FUEL METER ASS'Y
  • 5
    12-95501M SEAL
    SEAL
  • 6
    10-95502M SCREW
    SCREW
  • 7
    27-95500M GASKETE, FUEL METER ASS'Y
    GASKETE, FUEL METER ASS'Y
  • 8
    32-877681Q8 FUEL LINE ASS'Y
    FUEL LINE ASS'Y
  • 9
    30185Q3 BAYONET BODY ASS'Y
    BAYONET BODY ASS'Y
  • 10
    30185Q3 STEM, BAYONET BODY
    STEM, BAYONET BODY
  • 11
    25-16524 O-RING, BAYONET BODY STEM
    O-RING, BAYONET BODY STEM
  • 12
    24-30189 SPRING, BAYONET BODY ASS'Y
    SPRING, BAYONET BODY ASS'Y
  • 13
    30188 WASHER, CAP
    WASHER, CAP
  • 14
    22-63187 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 15
    32-94727M HOSE, CONNECTOR HOUSING TO BULB
    HOSE, CONNECTOR HOUSING TO BULB
  • 16
    89396Q01 BULB, PRIMER
    BULB, PRIMER
  • 17
    32-94727M HOSE BULB TO ENGINE CONENCTOR
    HOSE BULB TO ENGINE CONENCTOR
  • 18
    54-16725M CLAMP, HOSE
    CLAMP, HOSE
  • 19
    22-14213Q FUEL CONNECTOR, ENGINE END
    FUEL CONNECTOR, ENGINE END
  • 20
    25-82789M O-RING
    O-RING
  • 21
    23-81327M COLLAR
    COLLAR
