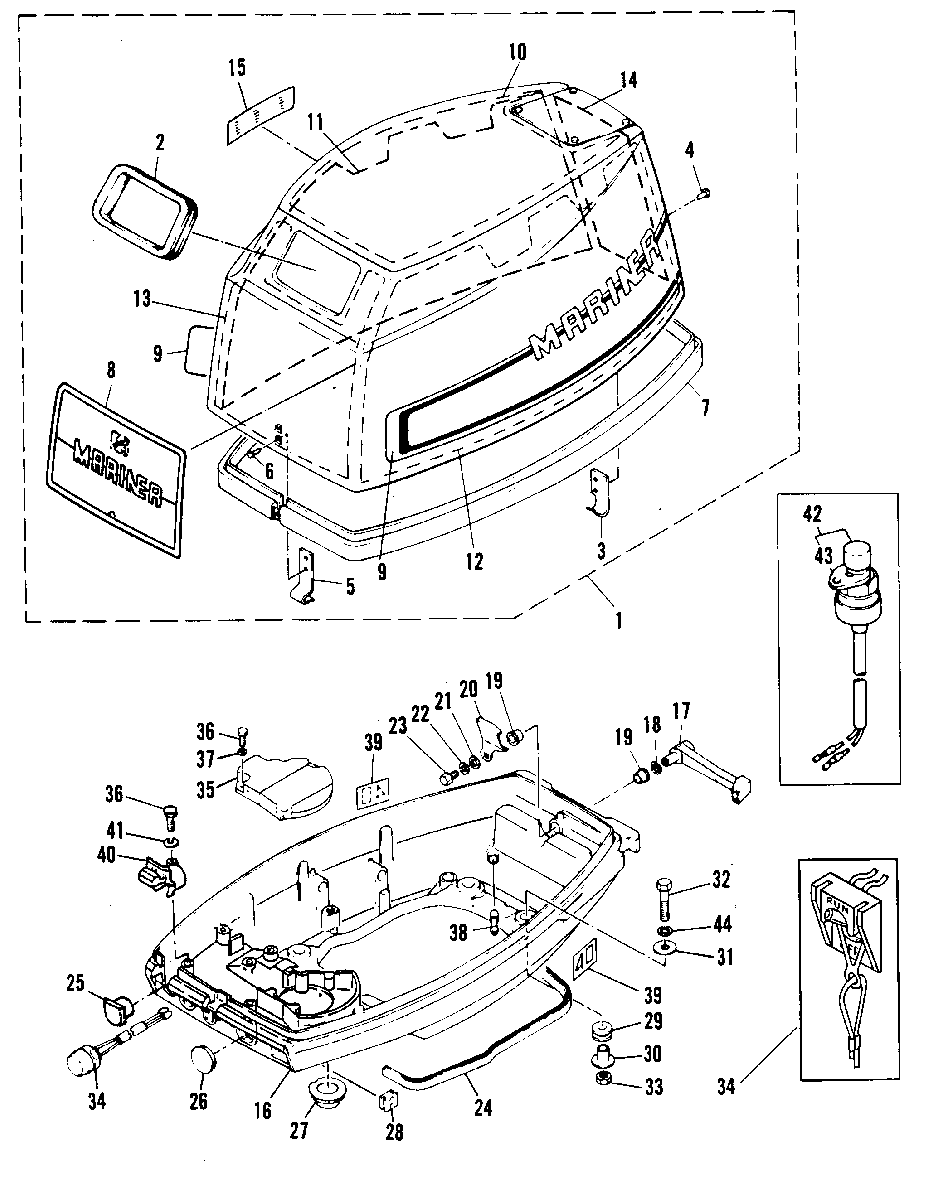

COWLING для Mariner - 40C (TWIN CARB) 6E9-300126 THRU 6E9-309343 (ML)

  • №
    Артикул
    Название
  • 1
    2168-9381M TOP COWLING ASS'Y
    TOP COWLING ASS'Y
  • 2
    80601M SEAL, RUBBER
    SEAL, RUBBER
  • 3
    83212M BRACKET
    BRACKET
  • 4
    17-84903M RIVET
    RIVET
  • 5
    83137M HOOK
    HOOK
  • 6
    17-814489M RIVET
    RIVET
  • 7
    83600M SEAL
    SEAL
  • 8
    37-95446M DECAL, FRONT
    SERIAL 00004991-09999999
    DECAL, FRONT
    SERIAL 00004991-09999999
  • 8
    37-95446M DECAL, FRONT
    SERIAL 00000000-00004990
    DECAL, FRONT
    SERIAL 00000000-00004990
  • 9
    37-95445M DECAL SET, SIDE AND REAR
    SERIAL 00004991-09999999
    DECAL SET, SIDE AND REAR
    SERIAL 00004991-09999999
  • 9
    37-95445M DECAL SET, SIDE AND REAR
    SERIAL 00000000-00004990
    DECAL SET, SIDE AND REAR
    SERIAL 00000000-00004990
  • 10
    83232M SOUND BLANKET, TOP
    SOUND BLANKET, TOP
  • 11
    83125M SOUND BLANKET, STARBOARD
    SOUND BLANKET, STARBOARD
  • 12
    83125M SOUND BLANKET, PORT
    SOUND BLANKET, PORT
  • 13
    84321M SOUND BLANKET, FRONT
    SOUND BLANKET, FRONT
  • 14
    84321M SOUND BLANKET, REAR
    SOUND BLANKET, REAR
  • 15
    37-81202M DECAL, SHIFT
    DECAL, SHIFT
  • 16
    2168-9382M COWLING, BOTTOM
    SERIAL 00004991-09999999
    COWLING, BOTTOM
    SERIAL 00004991-09999999
  • 16
    2168-9382M COWLING, BOTTOM
    SERIAL 00000000-00004990
    COWLING, BOTTOM
    SERIAL 00000000-00004990
  • 17
    95409M LEVER, CLAMP
    SERIAL 00004991-09999999
    LEVER, CLAMP
    SERIAL 00004991-09999999
  • 17
    95409M LEVER, CLAMP
    SERIAL 00000000-00004990
    LEVER, CLAMP
    SERIAL 00000000-00004990
  • 18
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 19
    23-81949M BUSHING
    BUSHING
  • 20
    54-84914M LEVER, CLAMP
    LEVER, CLAMP
  • 21
    12-81794M WASHER
    WASHER
  • 22
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 23
    10-84088M BOLT
    BOLT
  • 24
    97674M SEAL
    SEAL
  • 25
    25-93100M GROMMET (M AND ML)
    GROMMET (M AND ML)
  • 26
    25-83607M GROMMET
    GROMMET
  • 27
    25-83608M GROMMET
    GROMMET
  • 28
    25-83609M GROMMET
    GROMMET
  • 29
    25-97675M GROMMET (NOT USED WITH REMOTE CONTROL)
    GROMMET (NOT USED WITH REMOTE CONTROL)
  • 30
    23-97676M BUSHING
    BUSHING
  • 31
    12-81796M WASHER
    WASHER
  • 32
    10-83285M BOLT
    BOLT
  • 33
    11-82389M NUT
    NUT
  • 34
    87-14222M LANYARD IGNITION SWITCH ASSEMBLY
    (EL-418728 EUL-620176) & BELOW SERIAL 00006406-09999999
    LANYARD IGNITION SWITCH ASSEMBLY
    (EL-418728 EUL-620176) & BELOW SERIAL 00006406-09999999
  • 34
    87-93102M STOP SWITCH (M AND E) (EL-418727 EUL-620175) AND BELOW
    SERIAL 00000000-00006405
    STOP SWITCH (M AND E) (EL-418727 EUL-620175) AND BELOW
    SERIAL 00000000-00006405
  • 35
    97677M COVER
    COVER
  • 36
    10-82405M BOLT
    BOLT
  • 37
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 38
    22-83616M FITTING
    FITTING
  • 39
    37-83761M DECAL, HP
    DECAL, HP
  • 40
    93104M PLATE
    PLATE
  • 41
    13-82212M WASHER
    WASHER
  • 42
    87-97757M SWITCH ASS'Y, KILL (OPT)
    SERIAL 00000000-00004990
    SWITCH ASS'Y, KILL (OPT)
    SERIAL 00000000-00004990
  • 43
    97756M STOPPER (OPT)
    SERIAL 00000000-00004990
    STOPPER (OPT)
    SERIAL 00000000-00004990
  • 44
    12-82214M WASHER, LOCK
    WASHER, LOCK
