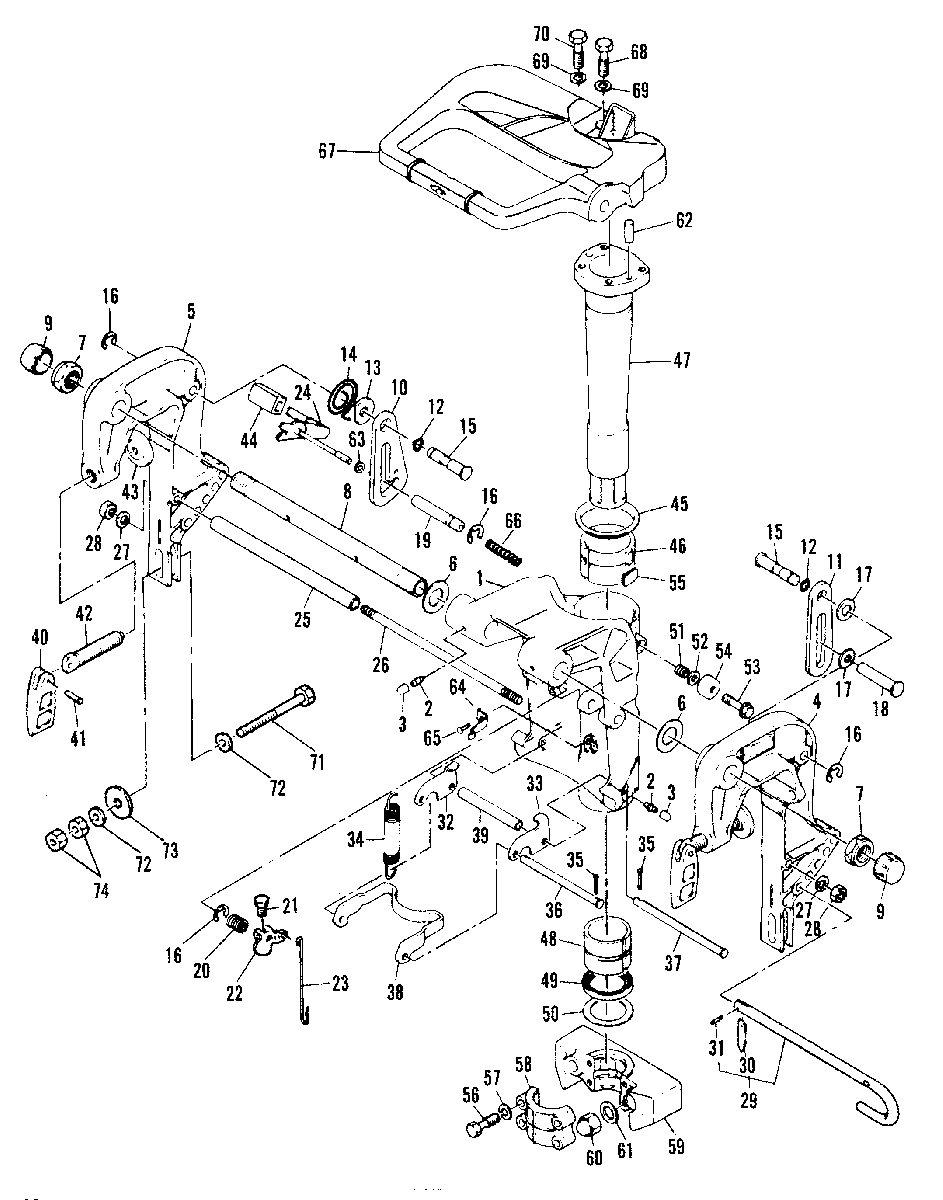

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B002781 AND UP (M)
-
№АртикулНазвание
-
11485-6996M BRACKET,SWIVELBRACKET,SWIVEL
-
222-82369M FITTING,GREASEFITTING,GREASE
-
381439M CAP,GREASE FITTINGCAP,GREASE FITTING
-
41484-9822M BRACKET,CLAMP(PORT)BRACKET,CLAMP(PORT)
-
51484-9823M BRACKET,CLAMP(STARBOARD)BRACKET,CLAMP(STARBOARD)
-
612-81836M WASHERWASHER
-
711-879172252 NUT,NYLONNUT,NYLON
-
810-41312M STUD,CLAMP BRACKETSTUD,CLAMP BRACKET
-
9811914M CAPCAP
-
1014278M STOP,TILT(STARBOARD) FOR 75 TILTSTOP,TILT(STARBOARD) FOR 75 TILT
-
1094508M STOP,TILT(STARBOARD) FOR 70 TILT OPTSTOP,TILT(STARBOARD) FOR 70 TILT OPT
-
1184969M STOP,TILT(PORT) FOR 75 TILTSTOP,TILT(PORT) FOR 75 TILT
-
1194510M STOP,TILT(PORT) FOR 70 TILT OPTSTOP,TILT(PORT) FOR 70 TILT OPT
-
1213-83457M WASHER,WAVEWASHER,WAVE
-
1312-83458M WASHERWASHER
-
1424-92616M SPRING,LEVER RETURNSPRING,LEVER RETURN
-
1517-19257M PINPIN
-
1653-83461M SNAP RINGSNAP RING
-
1712-83462M WASHERWASHER
-
1817-95450M PINPIN
-
1983464M SHAFTSHAFT
-
2024-83465M SPRINGSPRING
-
2110-84313M BOLTBOLT
-
2283467M LEVER,TILTLEVER,TILT
-
2383468M ROD,LOCKROD,LOCK
-
2494511M TILT LEVER ASS'YTILT LEVER ASS'Y
-
2519258M SPACERSPACER
-
2616-83472M STUDSTUD
-
2713-82215M WASHER,LOCKWASHER,LOCK
-
2811-82382M NUTNUT
-
2917-814972T TILT PIN ASS'YTILT PIN ASS'Y
-
3084044M STOPPER TILT LOCKSTOPPER TILT LOCK
-
3117-82145M PIN,ROLLPIN,ROLL
-
3283905M BRACKET,TILT LOCKBRACKET,TILT LOCK
-
3383906M BRACKET,TILT LOCKBRACKET,TILT LOCK
-
3424-83476M SPRINGSPRING
-
3518-82128M PIN,COTTERPIN,COTTER
-
3617-83477M PINPIN
-
3717-83478M PINPIN
-
3883479M TILT LOCKTILT LOCK
-
3923-83480M SPACERSPACER
-
4011868M HANDLE,TRANSOM CLAMPHANDLE,TRANSOM CLAMP
-
4117-81889M PINPIN
-
4210-83481M SCREW,TRANSOM CLAMPSCREW,TRANSOM CLAMP
-
4312-80638M PAD,TRANSOM CLAMPPAD,TRANSOM CLAMP
-
4481395M COVERCOVER
-
4512-83482M WASHERWASHER
-
4623-83483M BUSHINGBUSHING
-
4783907M SHAFTSHAFT
-
4812-83458M BUSHINGBUSHING
-
4926-83486M OIL SEALOIL SEAL
-
5012-83487M WASHERWASHER
-
5124-83488M SPRINGSPRING
-
5212-82217M WASHERWASHER
-
5310-43106M BOLTBOLT
-
5426-83490M RUBBER,SEALRUBBER,SEAL
-
5580633M PIECE,FRICTIONPIECE,FRICTION
-
5610-85277614 BOLTBOLT
-
5713-82215M WASHERWASHER
-
5883491M HOUSING,LOWER MOUNT RUBBERHOUSING,LOWER MOUNT RUBBER
-
5983492T HOUSING,LOWER MOUNT RUBBERHOUSING,LOWER MOUNT RUBBER
-
6011-82397M NUT,CROWNNUT,CROWN
-
6118-95295 WASHERWASHER
-
6217-82368M PIN,DOWELPIN,DOWEL
-
6312-83493M WASHERWASHER
-
6424-83494M SPRINGSPRING
-
6517-83495M RIVETRIVET
-
6624-83909M SPRING,COMPRESSIONSPRING,COMPRESSION
-
678M0057160 BRACKET,STEERINGBRACKET,STEERING
-
6810-95416M BOLTBOLT
-
6913-82215M WASHER,LOCKWASHER,LOCK
-
7010-82442M BOLTBOLT
-
7110-84970M BOLTBOLT
-
7212-82220M WASHERWASHER
-
7312-81812M WASHERWASHER
-
7411-82395M NUTNUT
