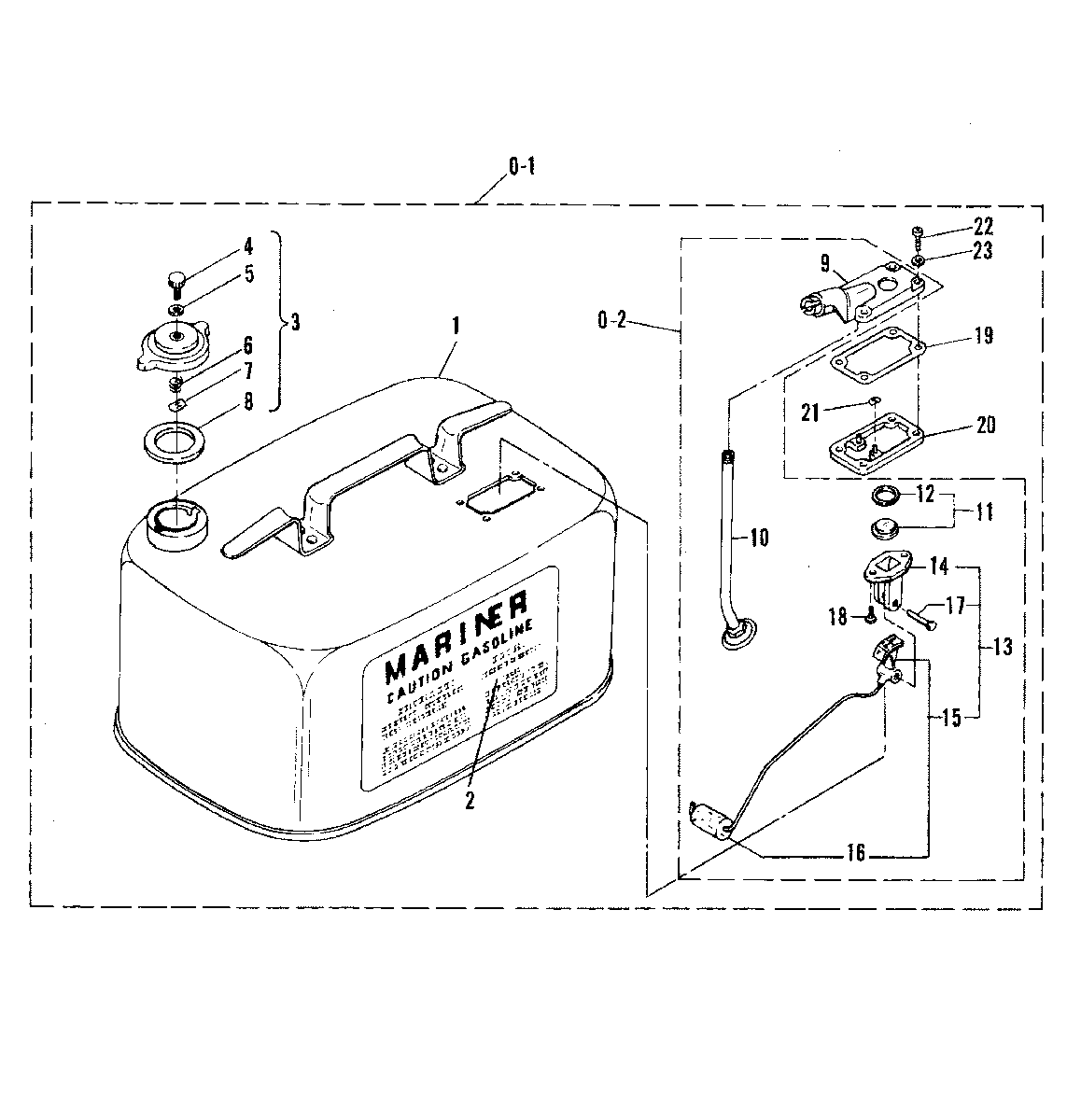

FUEL TANK ASSEMBLY для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B002781 AND UP (M)

№

Артикул

Название
0-1

1259-812410A1 FUEL TANK ASS'Y

FUEL TANK ASS'Y

4 920 ₽
1

1259-812410A1 FUEL TANK

FUEL TANK

4 920 ₽
2

37-13921 DECAL,FUEL TANK

DECAL,FUEL TANK

0 ₽
3

36-18962M FILLER CAP ASS'Y

FILLER CAP ASS'Y

3 650 ₽
4

10-25575 SCREW,VENT FILLER CAP

SCREW,VENT FILLER CAP

0 ₽
5

12-49221 WASHER,VENT SCREW

WASHER,VENT SCREW

90 ₽
6

24-22227 SPRING,TENSION-VENT SCREW

SPRING,TENSION-VENT SCREW

0 ₽
7

11-28587 NUT,SPEED-SPRING RETAINER

NUT,SPEED-SPRING RETAINER

0 ₽
8

27-41065 GASKET,FILLER CAP TO FUEL TANK

GASKET,FILLER CAP TO FUEL TANK

640 ₽
0-2

64841A1 COVER ASS'Y COMPLETE

COVER ASS'Y COMPLETE

0 ₽
9

17792A1 COVER ASS'Y FUEL TANK

COVER ASS'Y FUEL TANK

0 ₽
10

32-75239 TUBE ASS'Y

TUBE ASS'Y

3 270 ₽
11

98542A1 LENS ASS'Y FUEL GAUGE

LENS ASS'Y FUEL GAUGE

0 ₽
12

98542A1 GASKET,FUEL GAUGE LENS

GASKET,FUEL GAUGE LENS

0 ₽
13

28897A2 FUEL FAUFE ASS'Y COMPLETE

FUEL FAUFE ASS'Y COMPLETE

0 ₽
14

20430 RETAINER,FUEL GAUGE

RETAINER,FUEL GAUGE

0 ₽
15

28897A1 INDICATOR AND FLOAT ASS'Y

INDICATOR AND FLOAT ASS'Y

0 ₽
16

99274 FLOAT,FUEL GAUGE

FLOAT,FUEL GAUGE

0 ₽
17

17-20426 RIVET,INDICATOR TO RETAINER

RIVET,INDICATOR TO RETAINER

0 ₽
18

10-62568 SCREW,RETAINER TO FUEL TANK COVER

SCREW,RETAINER TO FUEL TANK COVER

70 ₽
19

27-28862 GASKET,COVER ASS'Y TO FRAME

GASKET,COVER ASS'Y TO FRAME

510 ₽
20

28860 FRAME,RETAINING FUEL TANK COVER

FRAME,RETAINING FUEL TANK COVER

0 ₽
21

11-28903 FASTENER,RETAINING FRAME TO FUEL TANK

FASTENER,RETAINING FRAME TO FUEL TANK

300 ₽
22

10-20411 SCREW,FUEL TANK COVER TO FUEL TANK

SCREW,FUEL TANK COVER TO FUEL TANK

0 ₽
23

12-29070 WASHER,FUEL TANK COVER FASTENING SCRWE

WASHER,FUEL TANK COVER FASTENING SCRWE

0 ₽
