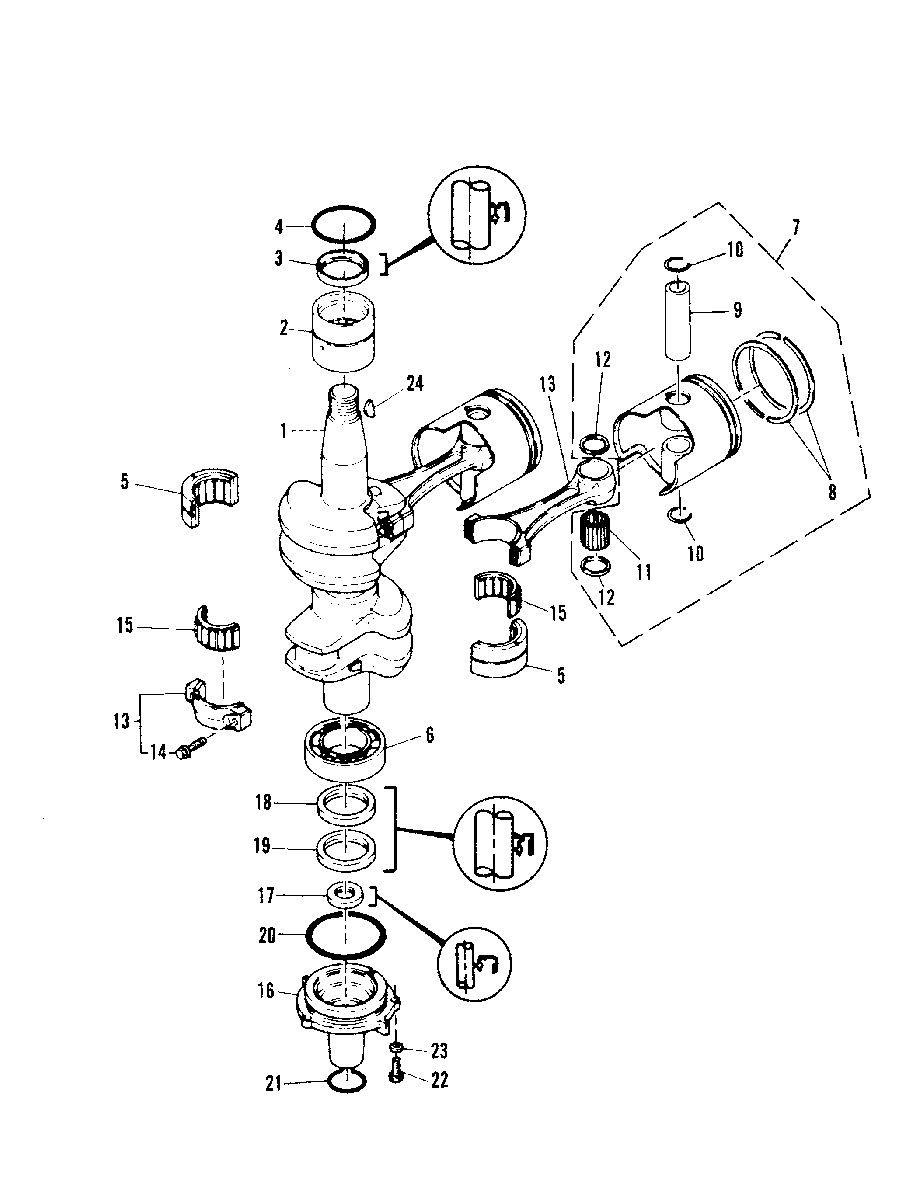

CRANKSHAFT AND PISTON для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B002781 AND UP (M)

  • №
    Артикул
    Название
  • 1
    463-6984M CRANKSHAFT
    CRANKSHAFT
  • 2
    31-83341T BEARING,NEEDLE
    BEARING,NEEDLE
  • 3
    26-82249M OIL SEAL
    OIL SEAL
  • 4
    25-82276M O-RING
    O-RING
  • 5
    31-97837T BEARING,NEEDLE
    BEARING,NEEDLE
  • 6
    30-814560T BEARING
    BEARING
  • 7
    761-8015M PISTON ASS'Y (STANDARD)
    PISTON ASS'Y (STANDARD)
  • 7
    761-8016M PISTON ASS'Y (1ST OVER SIZE 75.25 MM)
    PISTON ASS'Y (1ST OVER SIZE 75.25 MM)
  • 7
    761-8017M PISTON ASS'Y (2ND OVER SIZE 75.50MM)
    PISTON ASS'Y (2ND OVER SIZE 75.50MM)
  • 8
    39-83896T PISTON RING SET(STANDARD)
    PISTON RING SET(STANDARD)
  • 8
    39-83897T PISTON RING SET (1ST OVER SIZE 75.25 MM)
    PISTON RING SET (1ST OVER SIZE 75.25 MM)
  • 8
    39-83898T PISTON RING SET (2ND OVER SIZE 75.50MM)
    PISTON RING SET (2ND OVER SIZE 75.50MM)
  • 9
    41-83345T PIN,PISTON
    PIN,PISTON
  • 10
    53-81264M CLIP,PISTON PIN
    CLIP,PISTON PIN
  • 11
    29-82353M BEARING,NEEDLE
    BEARING,NEEDLE
  • 12
    12-81831M WASHER
    WASHER
  • 13
    629-8401M CONNECTING ROD ASS'Y
    CONNECTING ROD ASS'Y
  • 14
    10-81715M BOLT
    BOLT
  • 15
    31-97710M BEARING,NEEDLE
    BEARING,NEEDLE
  • 16
    19232M HOUSING,OIL SEAL
    SERIAL 00003931-09999999
    HOUSING,OIL SEAL
    SERIAL 00003931-09999999
  • 16
    94484M HOUSING,OIL SEAL
    SERIAL 00000000-00003930
    HOUSING,OIL SEAL
    SERIAL 00000000-00003930
  • 17
    26-83347M OIL SEAL
    OIL SEAL
  • 18
    26-97069M OIL SEAL
    SERIAL 00003931-09999999
    OIL SEAL
    SERIAL 00003931-09999999
  • 18
    26-82248M OIL SEAL
    SERIAL 00000000-00003930
    OIL SEAL
    SERIAL 00000000-00003930
  • 19
    26-82248M OIL SEAL
    OIL SEAL
  • 20
    25-82286M O-RING
    O-RING
  • 21
    25-83348M O-RING
    O-RING
  • 22
    10-826957M BOLT
    BOLT
  • 23
    12-82214M WASHER
    WASHER
  • 24
    28-81915M KEY,FLYWHEEL
    KEY,FLYWHEEL
