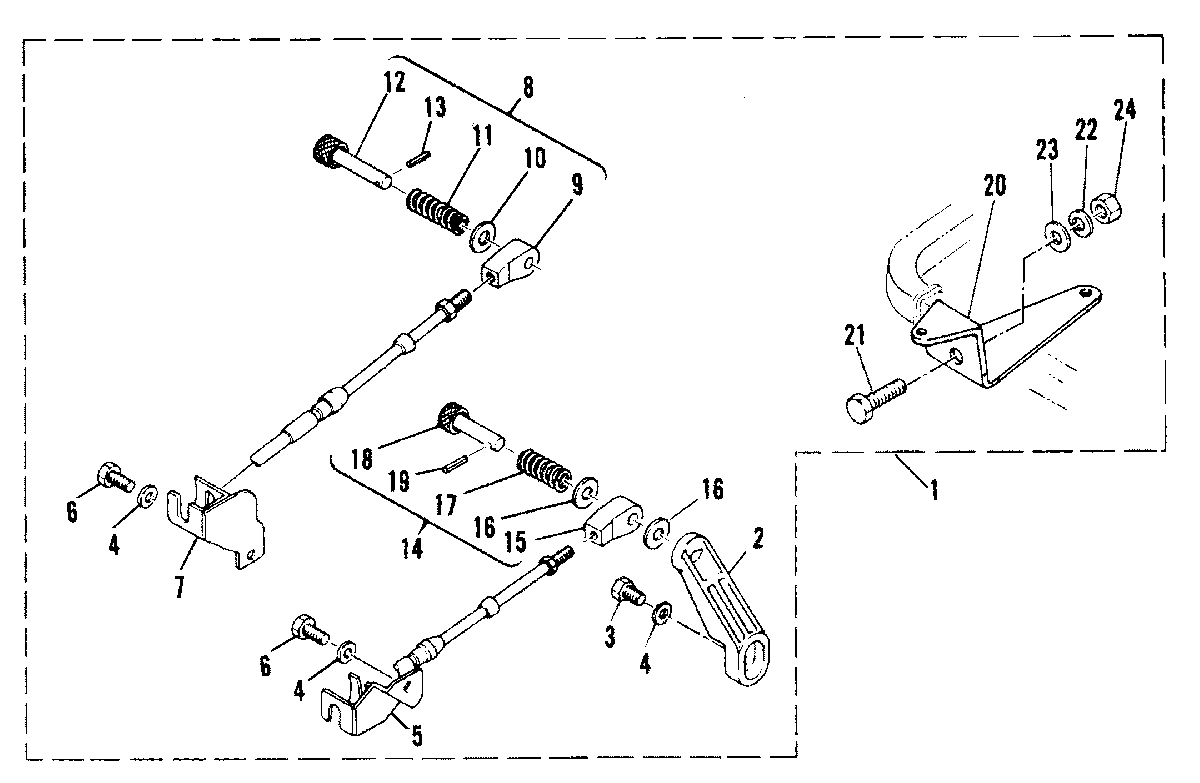

REMOTE CONTROL ATTACHMENT KIT для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A50631 THRU 403470 (EL)
-
№АртикулНазвание
-
143992A1 REMOTE CONTROL ATTACHMENT KITREMOTE CONTROL ATTACHMENT KIT
-
283716M THROTTLE LEVERTHROTTLE LEVER
-
310-91772M BOLTBOLT
-
413-82212M WASHER, LOCKWASHER, LOCK
-
583717M BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
610-826957M BOLTBOLT
-
783718M BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
883719M SHIFT CABLE END ASS'YSHIFT CABLE END ASS'Y
-
983720M CABLE ENDCABLE END
-
1012-82216M WASHERWASHER
-
1124-83721M SPRINGSPRING
-
1217-814500M HOOK, CABLEHOOK, CABLE
-
1317-82146M PIN, ROLLPIN, ROLL
-
1483723M THROTTLE CABLE END ASS'YTHROTTLE CABLE END ASS'Y
-
1583724M CABLE ENDCABLE END
-
1612-82216M WASHERWASHER
-
1724-83725M SPRINGSPRING
-
1817-814499M HOOK, CABLEHOOK, CABLE
-
1917-82146M PIN, ROLLPIN, ROLL
-
2083698M BRACKET, MECHANICAL STEERINGBRACKET, MECHANICAL STEERING
-
2110-91636M BOLTBOLT
-
2213-82218M WASHER, LOCKWASHER, LOCK
-
2312-82220M WASHERWASHER
-
2411-82395M NUTNUT
