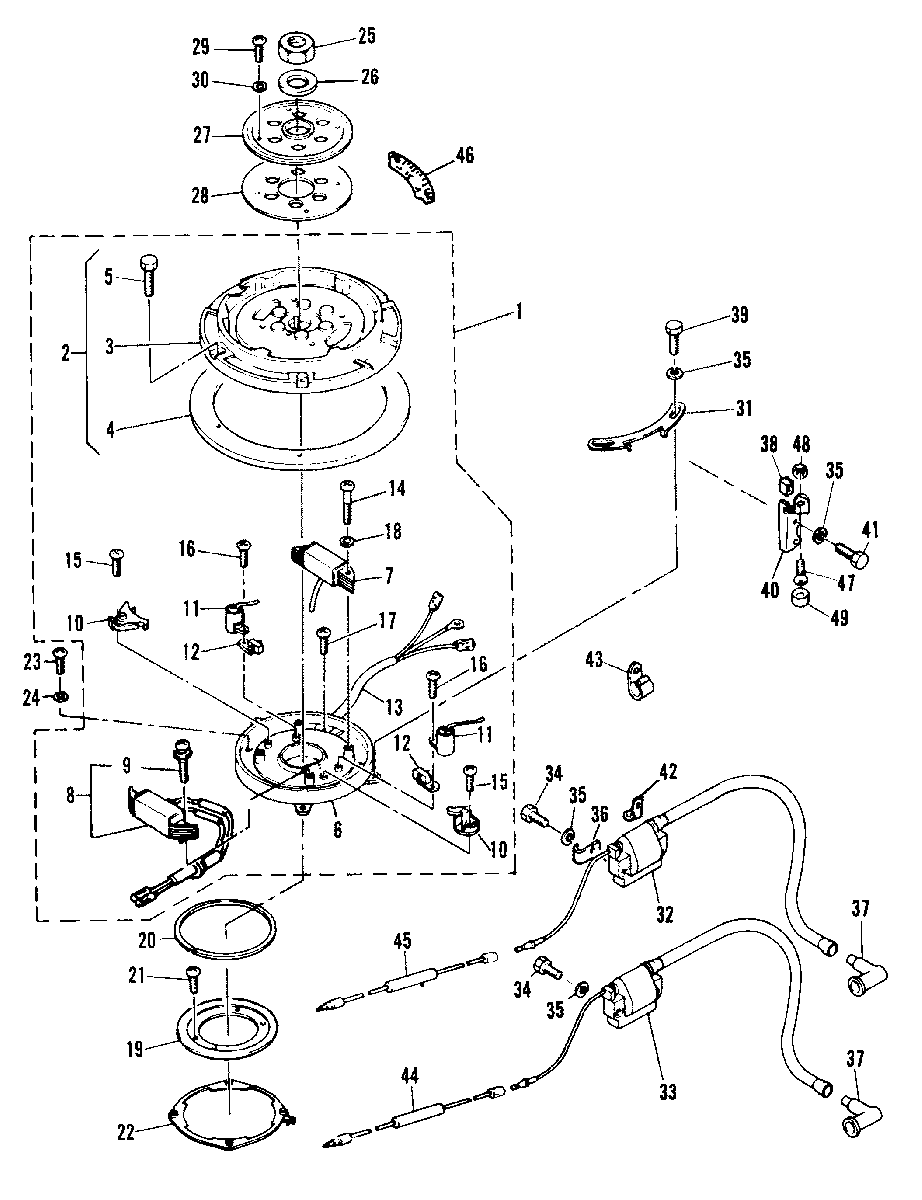

FLYWHEEL MAGNETO для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A50631 THRU 403470 (EL)

  • №
    Артикул
    Название
  • 1
    253-6999M FLYWHEEL MAGNETO ASS'Y (MANUAL START)
    FLYWHEEL MAGNETO ASS'Y (MANUAL START)
  • 2
    253-7100M FLYWHEEL (W/O RING GEAR)
    FLYWHEEL (W/O RING GEAR)
  • 3
    43-83556M DRIVE, RING
    DRIVE, RING
  • 4
    83557M WEIGHT RING
    WEIGHT RING
  • 5
    10-83558M BOLT
    BOLT
  • 6
    83559M BASE, MAGNETO
    BASE, MAGNETO
  • 7
    83560M COIL, IGNITION
    COIL, IGNITION
  • 8
    83561M COIL, LIGHTING (OPTIONAL-80 WATT)
    COIL, LIGHTING (OPTIONAL-80 WATT)
  • 9
    10-82522M SCREW WITH WASHER
    SCREW WITH WASHER
  • 10
    81021M BREAKER ASS'Y
    BREAKER ASS'Y
  • 11
    83562M CONDENSER
    CONDENSER
  • 12
    80003M LUBRCATOR
    LUBRCATOR
  • 13
    84-91627M LEAD WIRE
    LEAD WIRE
  • 14
    10-83108M SCREW
    SCREW
  • 15
    10-80001M SCREW
    SCREW
  • 16
    10-80001M SCREW
    SCREW
  • 17
    10-83565M SCREW
    SCREW
  • 18
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 19
    83566M RETAINER, MAGNETO BASE
    RETAINER, MAGNETO BASE
  • 20
    19139M RETAINER, MAGNETO BASE
    RETAINER, MAGNETO BASE
  • 21
    10-11832M SCREW
    SCREW
  • 22
    83569M PLATE, BASE FRICTION
    PLATE, BASE FRICTION
  • 23
    10-14232M SCREW
    SCREW
  • 24
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 25
    11-893789 NUT
    NUT
  • 26
    12-893762 WASHER
    WASHER
  • 27
    83571M COVER
    COVER
  • 28
    27-83572M GASKET
    GASKET
  • 29
    10-14232M SCREW
    SCREW
  • 30
    12-82211M WASHER, LOCK
    WASHER, LOCK
  • 31
    83922M STOP, MAGNETO BASE
    SERIAL 00001991-09999999
    STOP, MAGNETO BASE
    SERIAL 00001991-09999999
  • 31
    83574M STOP, MAGNETO BASE
    SERIAL 0A000000-0S001990
    STOP, MAGNETO BASE
    SERIAL 0A000000-0S001990
  • 32
    83575M IGNITION COIL (TOP CYLINDER)
    IGNITION COIL (TOP CYLINDER)
  • 33
    83576M IGNITION COIL (BOTTOM CYLINDER)
    IGNITION COIL (BOTTOM CYLINDER)
  • 34
    10-83285M BOLT
    BOLT
  • 35
    13-82212M WASHER
    WASHER
  • 36
    54-83577M CLAMP
    CLAMP
  • 37
    85-63709A1 PLUG CAP
    PLUG CAP
  • 37
    85-815119M PLUG CAP, NOISE SUPPRESSOR (OPT)
    PLUG CAP, NOISE SUPPRESSOR (OPT)
  • 38
    83578M CAP
    CAP
  • 39
    10-84088M BOLT
    BOLT
  • 40
    83579M STOP, MAGNETO BASE
    STOP, MAGNETO BASE
  • 41
    10-826957M BOLT
    BOLT
  • 42
    54-83580M CLAMP
    CLAMP
  • 43
    54-82042M CLAMP
    CLAMP
  • 44
    83581M DIODE (BOTTOM IGNITION COIL)
    DIODE (BOTTOM IGNITION COIL)
  • 45
    83582M DIODE (TOP IGNITION COIL)
    DIODE (TOP IGNITION COIL)
  • 46
    37-83925M DECAL, TIMING
    SERIAL 00001991-09999999
    DECAL, TIMING
    SERIAL 00001991-09999999
  • 47
    10-83924M SCREW
    SERIAL 00001991-09999999
    SCREW
    SERIAL 00001991-09999999
  • 48
    11-82390M NUT
    SERIAL 00001991-09999999
    NUT
    SERIAL 00001991-09999999
  • 49
    81415M CAP
    SERIAL 00001991-09999999
    CAP
    SERIAL 00001991-09999999
