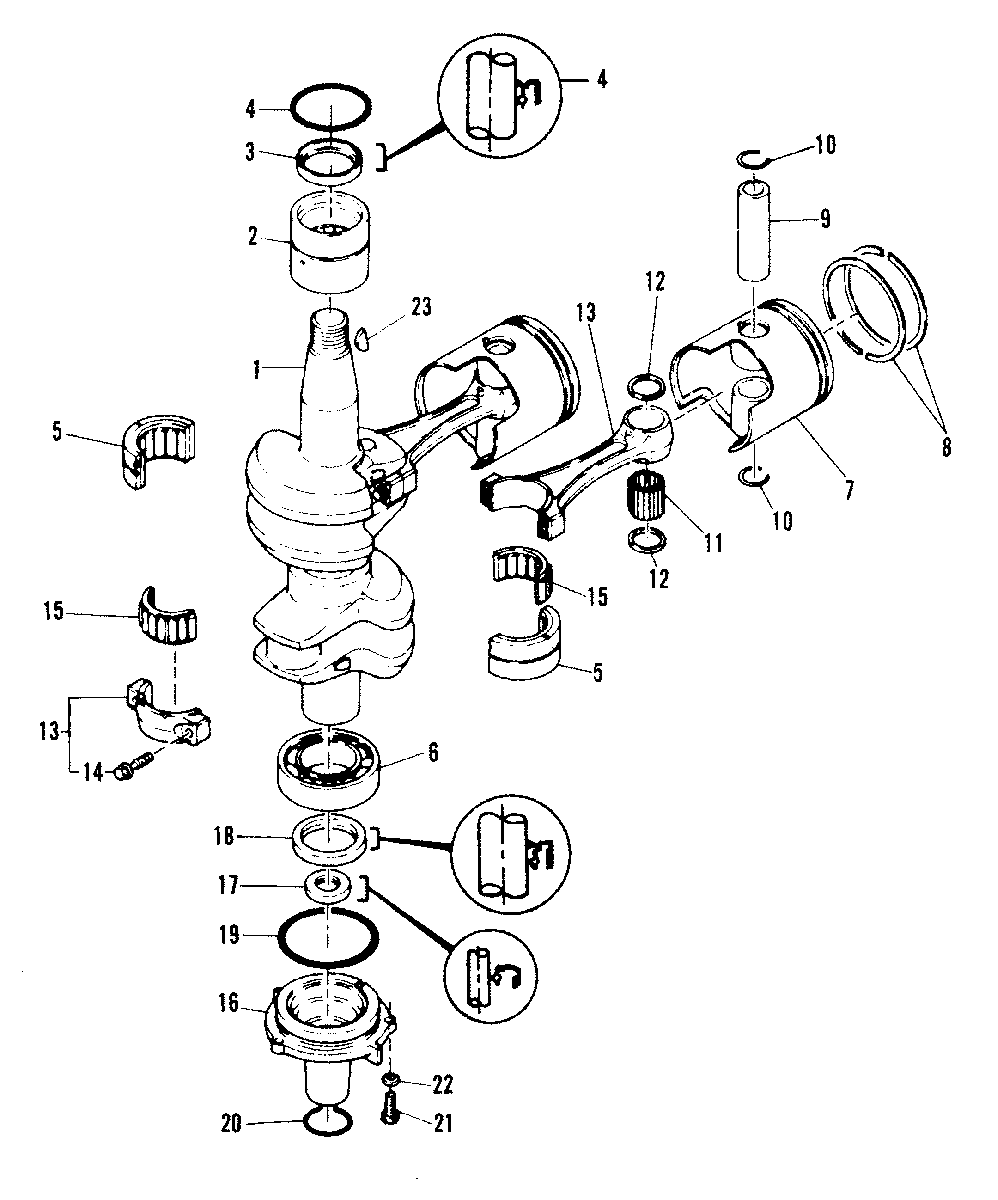

CRANKSHAFT AND PISTON для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A50631 THRU 403470 (EL)

  • №
    Артикул
    Название
  • 1
    463-6984M SHAFT, CRANK
    SHAFT, CRANK
  • 2
    31-83341T BEARING, NEEDLE
    BEARING, NEEDLE
  • 3
    26-82249M OIL SEAL
    OIL SEAL
  • 4
    25-82276M O-RING
    O-RING
  • 5
    31-97837T BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    30-814560T BEARING
    BEARING
  • 7
    761-8015M PISTON (STANDARD 74.96 MM)
    SERIAL 00001991-09999999
    PISTON (STANDARD 74.96 MM)
    SERIAL 00001991-09999999
  • 7
    761-8015M PISTON (STANDARD 74.97 MM)
    SERIAL 00001991-09999999
    PISTON (STANDARD 74.97 MM)
    SERIAL 00001991-09999999
  • 7
    761-8015M PISTON (STANDARD 74.98 MM)
    SERIAL 00001991-09999999
    PISTON (STANDARD 74.98 MM)
    SERIAL 00001991-09999999
  • 7
    761-8016M PISTON (1ST OVERSIZE 75.25 MM)
    SERIAL 00001991-09999999
    PISTON (1ST OVERSIZE 75.25 MM)
    SERIAL 00001991-09999999
  • 7
    761-8017M PISTON (2ND OVER SIZE 75.50 MM)
    SERIAL 00001991-09999999
    PISTON (2ND OVER SIZE 75.50 MM)
    SERIAL 00001991-09999999
  • 7
    761-6985M PISTON (STANDARD 74.96 MM)
    SERIAL 0A000000-0S001990
    PISTON (STANDARD 74.96 MM)
    SERIAL 0A000000-0S001990
  • 7
    761-6985M PISTON (STANDARD 74.97 MM)
    SERIAL 0A000000-0S001990
    PISTON (STANDARD 74.97 MM)
    SERIAL 0A000000-0S001990
  • 7
    761-6987M PISTON (STANDARD 74.98 MM)
    SERIAL 0A000000-0S001990
    PISTON (STANDARD 74.98 MM)
    SERIAL 0A000000-0S001990
  • 7
    761-6988M PISTON (1ST OVER SIZE 75.25 MM)
    SERIAL 0A000000-0S001990
    PISTON (1ST OVER SIZE 75.25 MM)
    SERIAL 0A000000-0S001990
  • 7
    761-6989M PISTON (2ND OVER SIZE 75.50 MM)
    SERIAL 0A000000-0S001990
    PISTON (2ND OVER SIZE 75.50 MM)
    SERIAL 0A000000-0S001990
  • 8
    39-83896T PISTON RING SET (STANDARD)
    SERIAL 00001991-09999999
    PISTON RING SET (STANDARD)
    SERIAL 00001991-09999999
  • 8
    39-83897T PISTON RING SET (1ST OVER SIZE)
    SERIAL 00001991-09999999
    PISTON RING SET (1ST OVER SIZE)
    SERIAL 00001991-09999999
  • 8
    39-83898T PISTON RING SET (2ND OVER SIZE)
    SERIAL 00001991-09999999
    PISTON RING SET (2ND OVER SIZE)
    SERIAL 00001991-09999999
  • 8
    39-83342M PISTON RING SET (STANDARD)
    SERIAL 0A000000-0S001990
    PISTON RING SET (STANDARD)
    SERIAL 0A000000-0S001990
  • 8
    39-83343M PISTON RING SET (1ST OVER SIZE)
    SERIAL 0A000000-0S001990
    PISTON RING SET (1ST OVER SIZE)
    SERIAL 0A000000-0S001990
  • 8
    39-83344M PISTON RING SET (2ND OVER SIZE)
    SERIAL 0A000000-0S001990
    PISTON RING SET (2ND OVER SIZE)
    SERIAL 0A000000-0S001990
  • 9
    41-83345T PIN, PISTON
    PIN, PISTON
  • 10
    53-81264M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 11
    29-82353M BEARING, NEEDLE
    BEARING, NEEDLE
  • 12
    12-81831M WASHER
    WASHER
  • 13
    629-8401M CONNECTING ROD ASS'Y
    CONNECTING ROD ASS'Y
  • 14
    10-81715M BOLT
    BOLT
  • 15
    31-97710M BEARING, NEEDLE
    BEARING, NEEDLE
  • 16
    94484M HOUSING, OIL SEAL
    HOUSING, OIL SEAL
  • 17
    26-83347M OIL SEAL
    OIL SEAL
  • 18
    26-82248M OIL SEAL
    OIL SEAL
  • 19
    25-82286M O-RING
    O-RING
  • 20
    25-83348M O-RING
    O-RING
  • 21
    10-826957M BOLT
    BOLT
  • 22
    12-82214M WASHER
    WASHER
  • 23
    28-81915M KEY, FLYWHEEL
    KEY, FLYWHEEL
