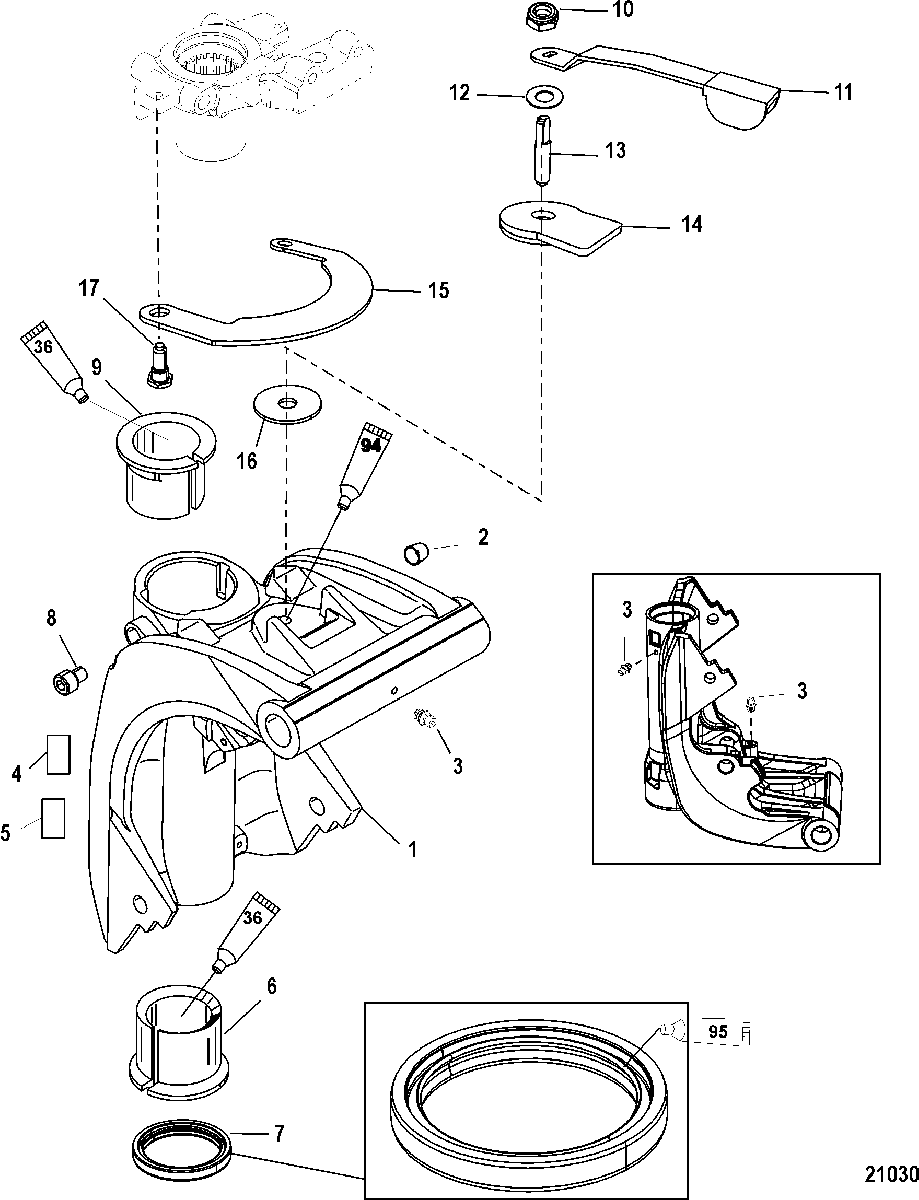

Swivel Bracket для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    1401-850066T01 SWIVEL BRACKET
    SWIVEL BRACKET
  • 2
    23-19606 BEARING, Trim Pin
    BEARING, Trim Pin
  • 3
    22-74036 FITTING, Grease
    FITTING, Grease
  • 4
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
  • 5
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 6
    23-821777 BUSHING (Lower)
    BUSHING (Lower)
  • 7
    26-822404 SEAL, Lower
    SEAL, Lower
  • 8
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    SCREW, (M8 x 10) Stainless Steel
  • 9
    23-8217711 BUSHING, Upper
    BUSHING, Upper
  • 10
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 11
    823792 LEVER, Co-Pilot
    LEVER, Co-Pilot
  • 12
    12-29330 WASHER
    WASHER
  • 13
    821961 ROD, Co-Pilot (Threaded)
    ROD, Co-Pilot (Threaded)
  • 14
    8M0006845 PLATE/DISC ASSEMBLY
    PLATE/DISC ASSEMBLY
  • 15
    8M0007471 PLATE
    PLATE
  • 16
    8165621 DISC, Friction
    DISC, Friction
  • 17
    10-768042 SHOULDER SCREW, Hex
    SHOULDER SCREW, Hex
