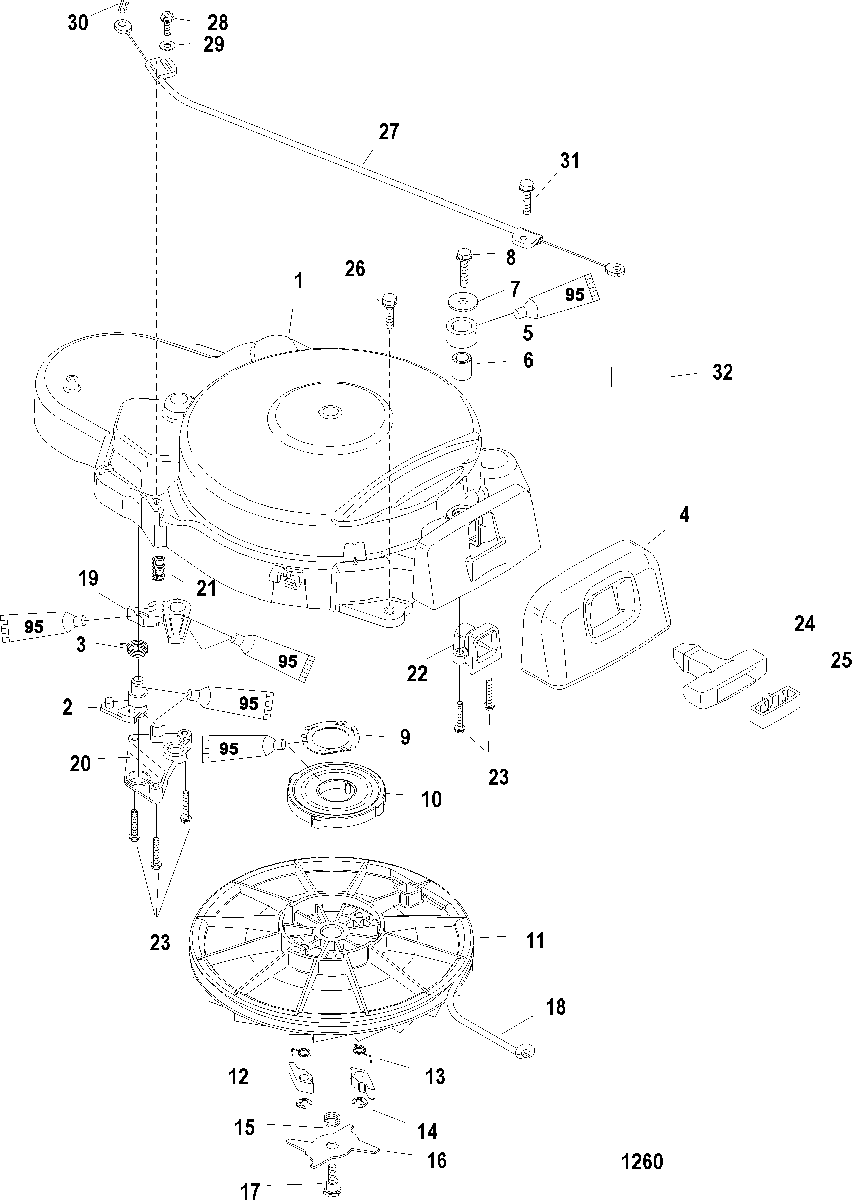

Manual Starter для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up

  • №
    Артикул
    Название
  • -
    835253A13 STARTER ASSEMBLY, Recoil
    STARTER ASSEMBLY, Recoil
  • 1
    835253A12 HOUSING ASSEMBLY, Recoil
    HOUSING ASSEMBLY, Recoil
  • 2
    8167122 CAM
    CAM
  • 3
    24-8267911 SPRING
    SPRING
  • 4
    8M0026455 SEAL
    SEAL
  • 5
    835256T ROLLER
    ROLLER
  • 6
    23-852987T BUSHING
    BUSHING
  • 7
    826414T WASHER
    WASHER
  • 8
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 9
    13-826229 LOCKWASHER
    LOCKWASHER
  • 10
    24-86857T01 SPRING
    SPRING
  • 11
    50-854317T5 SHEAVE ASSEMBLY, Starter
    SHEAVE ASSEMBLY, Starter
  • 12
    868501 CAM
    CAM
  • 13
    24-86851T02 SPRING
    SPRING
  • 14
    53-86849T01 RING, Retaining
    RING, Retaining
  • 15
    24-868523 SPRING
    SPRING
  • 16
    86853T01 CAM
    CAM
  • 17
    10-826253 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 18
    50-12066Q10 ROPE
    ROPE
  • 19
    856073 LEVER, Interlock
    LEVER, Interlock
  • 20
    856072T RETAINER
    RETAINER
  • 21
    24-856138T03 SPRING
    SPRING
  • 22
    854779T BUSHING
    BUSHING
  • 23
    10-8182491 SCREW, (#10-16 x 1.00)
    SCREW, (#10-16 x 1.00)
  • 24
    85174A1 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 25
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 26
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 27
    856754003 CABLE, Interlock (Included with complete Recoil Starter Assembly)
    CABLE, Interlock (Included with complete Recoil Starter Assembly)
  • 28
    10-40011107 SCREW, (M5 x 16) Stainless Steel (Included with complete Recoil Starter Assembly)
    SCREW, (M5 x 16) Stainless Steel (Included with complete Recoil Starter Assembly)
  • 29
    12-73288 WASHER, (.220 x .500 x .030) Stainless Steel
    WASHER, (.220 x .500 x .030) Stainless Steel
  • 30
    18-26811 COTTER PIN
    COTTER PIN
  • 31
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 32
    37-804654A06 DECAL, EPA Label Information
    DECAL, EPA Label Information
