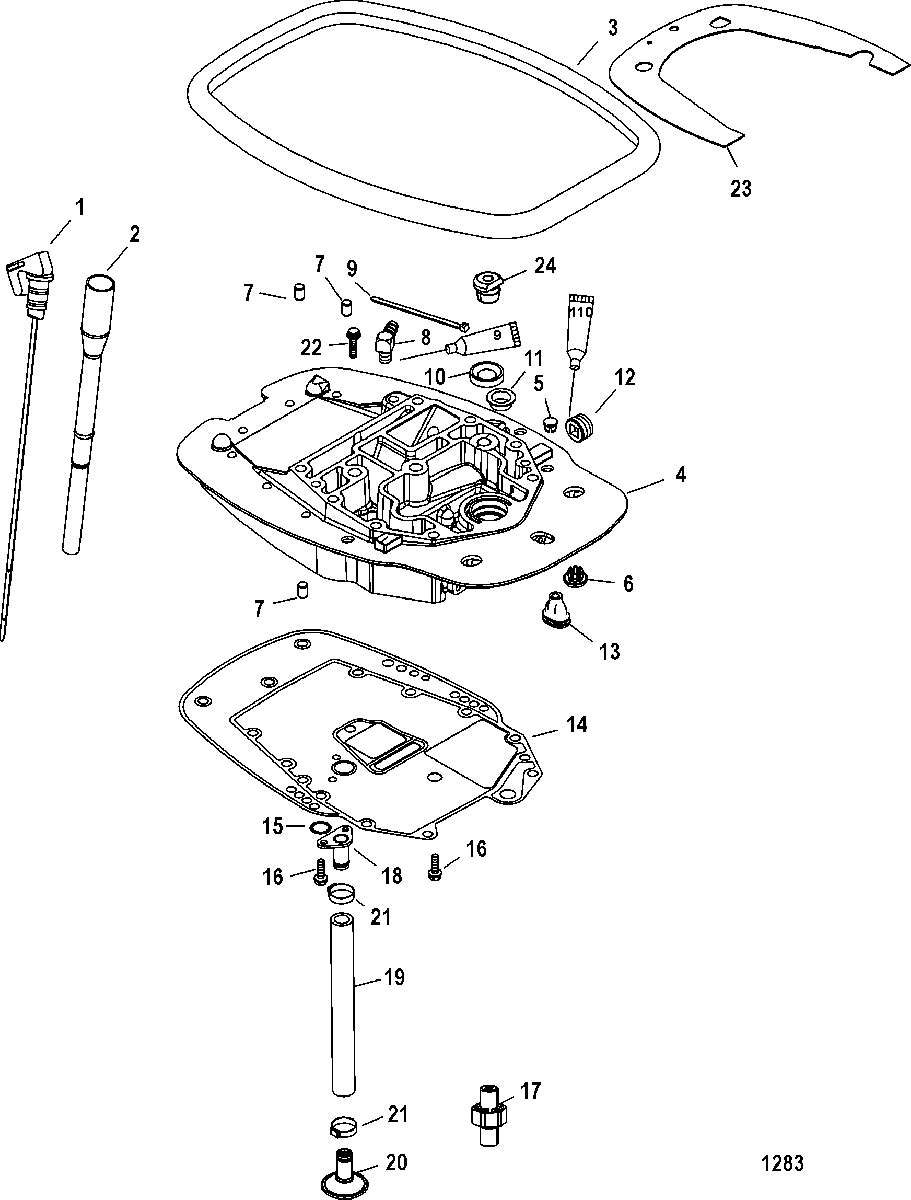

Adaptor Plate для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    825990 DIPSTICK
    DIPSTICK
  • 2
    825989003 DIPSTICK TUBE (Included with Adaptor Plate)
    DIPSTICK TUBE (Included with Adaptor Plate)
  • 3
    8560552 SEAL
    SEAL
  • 4
    825228A17 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 5
    19-822464 PLUG
    PLUG
  • 6
    19-48323 PLUG
    PLUG
  • 7
    17-23784 PIN, Dowel (Included with Adaptor Plate)
    PIN, Dowel (Included with Adaptor Plate)
  • 8
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 9
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    26-828932 SEAL, Oil
    (Short)
    SEAL, Oil
    (Short)
  • 10
    26-66301 SEAL, Oil
    (Long)
    SEAL, Oil
    (Long)
  • 11
    23-856743 BUSHING
    (Short)
    BUSHING
    (Short)
  • 11
    23-859594 BUSHING
    (Long)
    BUSHING
    (Long)
  • 12
    22-889567 PLUG, (.500-14)
    PLUG, (.500-14)
  • 13
    25-822408001 GROMMET (Short)
    GROMMET (Short)
  • 14
    27-892320001 GASKET
    GASKET
  • 15
    25-845746 O-RING
    O-RING
  • 16
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 17
    881872A1 BODY, Oil Pressure Relief
    BODY, Oil Pressure Relief
  • 18
    893765 PLATE, Top Oil Pickup
    PLATE, Top Oil Pickup
  • 19
    32-854793 HOSE, Oil Pickup
    HOSE, Oil Pickup
  • 20
    893700 BAFFLE, Oil Pick-up
    BAFFLE, Oil Pick-up
  • 21
    54-855228 CLAMP
    CLAMP
  • 22
    10-4007455 SCREW, (M6 x 55)
    SCREW, (M6 x 55)
  • 23
    8289151 HEAT SHIELD
    HEAT SHIELD
  • 24
    25-19564001 GROMMET
    GROMMET
