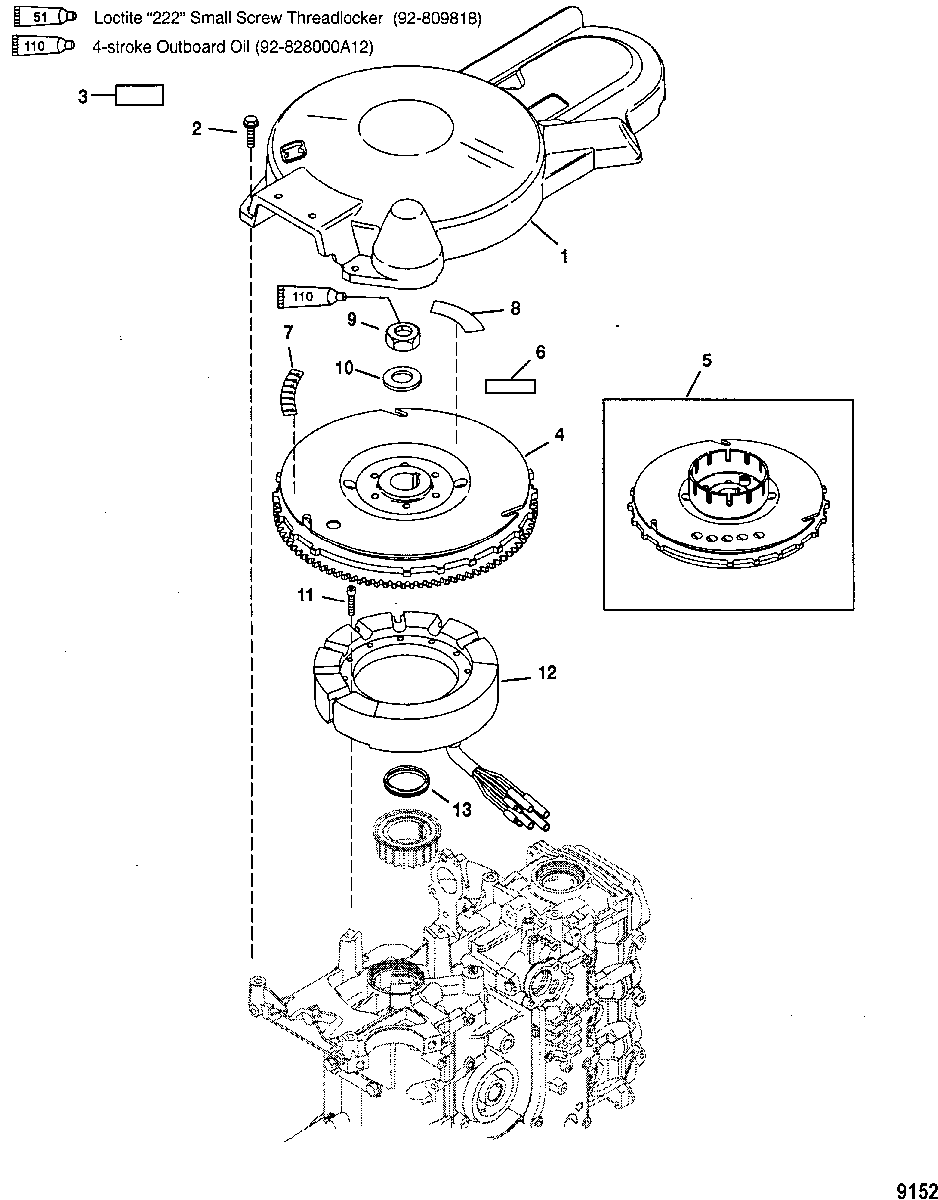

Flywheel для Mariner - 40 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    859284T2 FLYWHEEL COVER
    (ELECTRIC)
    FLYWHEEL COVER
    (ELECTRIC)
  • 2
    10-8248326 SCREW, (M6 x 25 MM)
    (ELECTRIC)
    SCREW, (M6 x 25 MM)
    (ELECTRIC)
  • 3
    37-856985A22 DECAL, EPA Label Information
    (ELECTRIC)(1999)
    DECAL, EPA Label Information
    (ELECTRIC)(1999)
  • 3
    37-804654A00 DECAL, EPA Label Information
    (ELECTRIC)(2000)
    DECAL, EPA Label Information
    (ELECTRIC)(2000)
  • 3
    37-804654A01 DECAL, EPA Label Information
    (ELECTRIC)(2001)
    DECAL, EPA Label Information
    (ELECTRIC)(2001)
  • 4
    284-832010T32 FLYWHEEL
    (ELECTRIC)
    FLYWHEEL
    (ELECTRIC)
  • 5
    200-8M0118174 FLYWHEEL
    (MANUAL)
    FLYWHEEL
    (MANUAL)
  • 6
    NSS NOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
    NOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
  • 7
    NSS NOT SOLD SEPARATE, Decal-Timing Marks
    NOT SOLD SEPARATE, Decal-Timing Marks
  • 8
    NSS NOT SOLD SEPARATE, Decal-Warning-Neutral
    NOT SOLD SEPARATE, Decal-Warning-Neutral
  • 9
    11-893789 NUT
    NUT
  • 10
    12-893762 WASHER
    WASHER
  • 11
    10-4007325 SCREW, (M5 x 25)
    SN# 0G960499 & Below
    SCREW, (M5 x 25)
    SN# 0G960499 & Below
  • 11
    10-4007325 SCREW, (M5 x 25)
    (Manual) SN# 0G960500 & Up
    SCREW, (M5 x 25)
    (Manual) SN# 0G960500 & Up
  • 11
    10-4013930 SCREW, (M5 x 30)
    (Electric) SN# 0G960500 & Up
    SCREW, (M5 x 30)
    (Electric) SN# 0G960500 & Up
  • 12
    398-852387T7 STATOR
    (Electric) SN# 0G960500 & Up
    STATOR
    (Electric) SN# 0G960500 & Up
  • 12
    398-852386T6 STATOR
    (Manual) SN# 0G960500 & Up
    STATOR
    (Manual) SN# 0G960500 & Up
  • 12
    398-852387T9 STATOR
    (Electric) SN# 0G960499 & Below
    STATOR
    (Electric) SN# 0G960499 & Below
  • 12
    398-852386T8 STATOR
    (Manual) SN# 0G960499 & Below
    STATOR
    (Manual) SN# 0G960499 & Below
  • 13
    834838 LOAD RING
    LOAD RING
