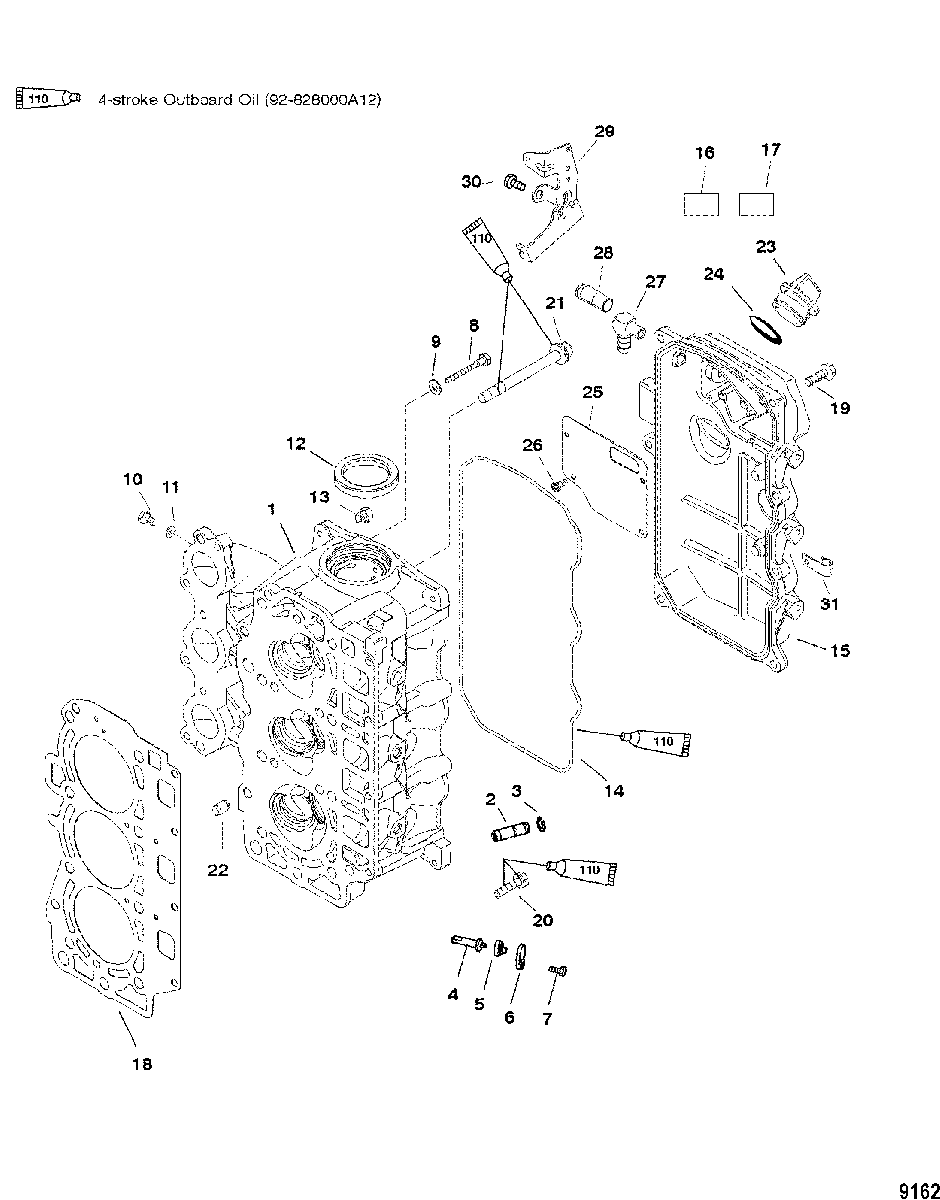

Cylinder Head для Mariner - 40 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • -
    893504T01 CYLINDER HEAD
    (ELECTRIC)
    CYLINDER HEAD
    (ELECTRIC)
  • -
    893504T02 CYLINDER HEAD
    (MANUAL)
    CYLINDER HEAD
    (MANUAL)
  • 1
    834778T2 CYLINDER HEAD
    CYLINDER HEAD
  • 2
    8M0054272 GUIDE
    GUIDE
  • 3
    53-825038 CIRCLIP
    CIRCLIP
  • 4
    826887M ANODE
    ANODE
  • 5
    25-825040 GROMMET
    GROMMET
  • 6
    826888M COVER
    COVER
  • 7
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 8
    10-827607 BOLT
    BOLT
  • 9
    27-827610 GASKET
    GASKET
  • 10
    10-84088M SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 11
    27-827610 GASKET
    GASKET
  • 12
    26-825048 SEAL, Oil
    SEAL, Oil
  • 13
    22-822644 PIPE PLUG
    PIPE PLUG
  • 14
    25-893898 O-RING
    O-RING
  • 15
    893693A04 COVER
    COVER
  • 16
    NSS NOT SOLD SEPARATE, Decal-Servicing Referral
    NOT SOLD SEPARATE, Decal-Servicing Referral
  • 17
    NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
    NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
  • 18
    27-8M0118180 GASKET
    GASKET
  • 19
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 20
    10-893745025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 21
    10-82503395 SCREW, (M9 x 95)
    SCREW, (M9 x 95)
  • 22
    17-825010 PIN, Dowel
    PIN, Dowel
  • 23
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 24
    NSS NOT SOLD SEPARATE, O Ring
    NOT SOLD SEPARATE, O Ring
  • 25
    855236 PLATE, Baffle
    PLATE, Baffle
  • 26
    10-4005785 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 27
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 28
    22-825054 BREATHER PIPE
    BREATHER PIPE
  • 29
    830294T1 BRACKET
    (HANDLE)
    BRACKET
    (HANDLE)
  • 30
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    (HANDLE)
    SCREW, (M6 x 13) Stainless Steel
    (HANDLE)
  • 31
    54-65292 J CLIP
    (USE WHERE APPLICABLE)
    J CLIP
    (USE WHERE APPLICABLE)
  • -
    27-825231A99 GASKET SET, Engine
    GASKET SET, Engine
  • -
    61-803017T01 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    61-803016T01 POWERHEAD ASSEMBLY
    (BIGFOOT)
    POWERHEAD ASSEMBLY
    (BIGFOOT)
