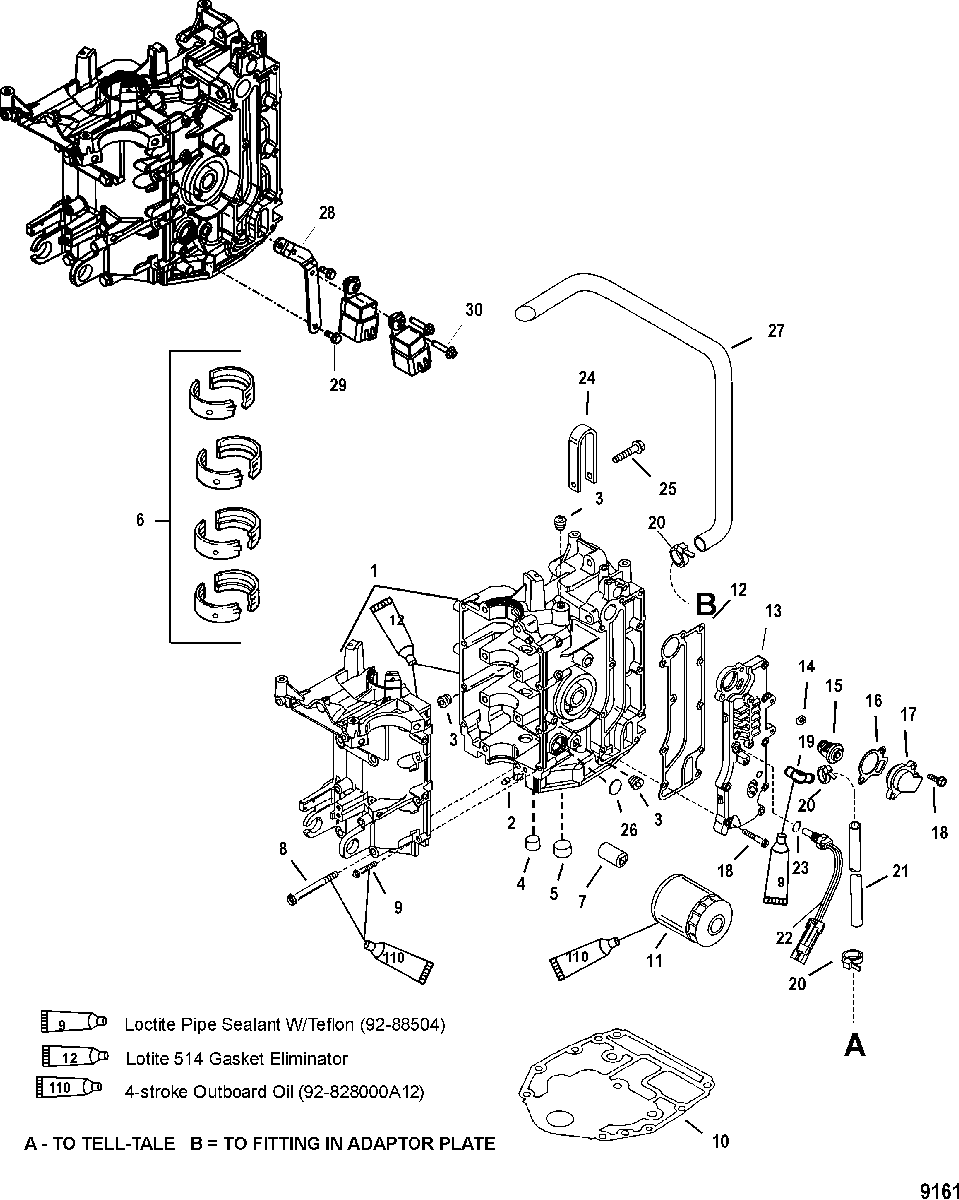

Cylinder Block для Mariner - 40 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    803-850082T34 CYLINDER BLOCK
    CYLINDER BLOCK
  • 1
    800-893500T02 CYLINDER BLOCK
    (BIGFOOT)
    CYLINDER BLOCK
    (BIGFOOT)
  • 2
    17-825010 PIN, Dowel
    PIN, Dowel
  • 3
    22-479452 PLUG
    PLUG
  • 4
    22-384073 PLUG, Pipe (1/2-14)
    PLUG, Pipe (1/2-14)
  • 5
    22-416223 PIPE PLUG (3/4-14)
    PIPE PLUG (3/4-14)
  • 6
    23-893631 BEARING, Brown
    (BROWN)
    BEARING, Brown
    (BROWN)
  • 6
    23-893631001 BEARING, Black
    (BLACK)
    BEARING, Black
    (BLACK)
  • 6
    23-893631002 BEARING, Blue
    (BLUE)
    BEARING, Blue
    (BLUE)
  • 7
    822625 NIPPLE, (M20)
    NIPPLE, (M20)
  • 8
    10-82506182 SCREW, (M8 x 82)
    SCREW, (M8 x 82)
  • 9
    10-88348935 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 10
    27-892319001 GASKET
    GASKET
  • 11
    35-8M0065103 FILTER ASSEMBLY, Oil
    FILTER ASSEMBLY, Oil
  • 12
    27-8M4500244 GASKET
    GASKET
  • 13
    8M0118193 COVER, Exhaust
    COVER, Exhaust
  • 14
    22-479452 PLUG
    PLUG
  • 15
    825212A1 THERMOSTAT
    THERMOSTAT
  • 16
    27-824853 GASKET
    GASKET
  • 17
    8M0008243 COVER
    COVER
  • 18
    10-88348935 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 19
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 21
    32-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 11 Inches)
    TUBING, (28.00 Inches Bulk) (Cut to 11 Inches)
  • 22
    889575 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 23
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 24
    893697 LIFTING EYE
    LIFTING EYE
  • 25
    10-857139 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 26
    NSS NOT SOLD SEPARATE, Plug-Serial Number
    NOT SOLD SEPARATE, Plug-Serial Number
  • 27
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 19 Inches)
    SN# 0T178500 & Up
    HOSE, (48.00 Inches Bulk) (Cut to 19 Inches)
    SN# 0T178500 & Up
  • 27
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 18 Inches)
    SN# 0T178499 & Below
    HOSE, (48.00 Inches Bulk) (Cut to 18 Inches)
    SN# 0T178499 & Below
  • 28
    882831 BRACKET, Trim Relay
    (Power Trim) SN# 0T294232 & Up
    BRACKET, Trim Relay
    (Power Trim) SN# 0T294232 & Up
  • 29
    10-8248324 SCREW, (M6 x 16)
    (Power Trim) SN# 0T294232 & Up
    SCREW, (M6 x 16)
    (Power Trim) SN# 0T294232 & Up
  • 30
    10-82129130 SCREW, (M6 x 30)
    (Power Trim) SN# 0T294232 & Up
    SCREW, (M6 x 30)
    (Power Trim) SN# 0T294232 & Up
  • -
    27-825231A99 GASKET SET, Engine
    GASKET SET, Engine
  • -
    61-803017T01 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    61-803016T01 POWERHEAD ASSEMBLY
    (BIGFOOT)
    POWERHEAD ASSEMBLY
    (BIGFOOT)
