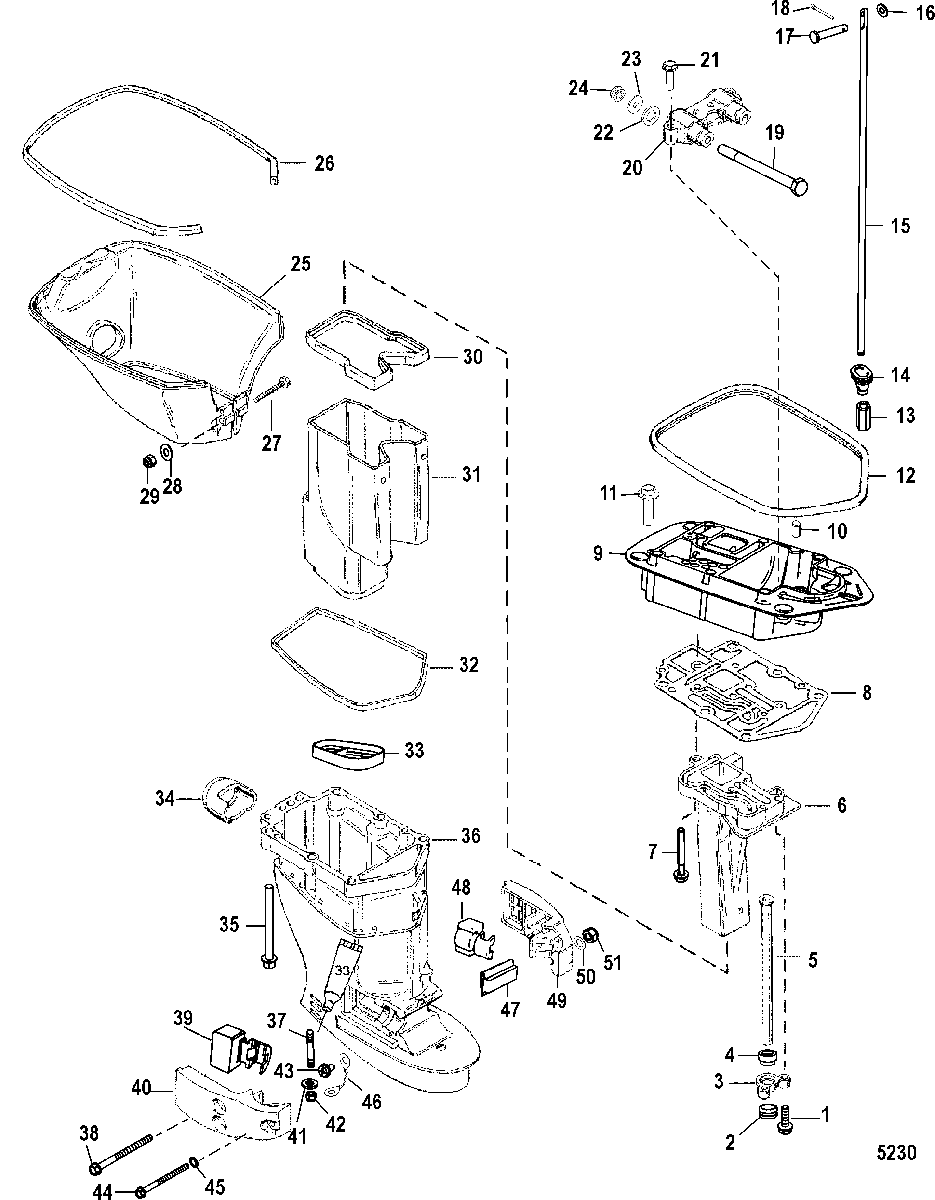

Driveshaft Housing для Mariner - 40 (2 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    10-40011155 SCREW, (M8 x 55) Stainless Steel
    SCREW, (M8 x 55) Stainless Steel
  • 2
    25-93221002 GROMMET
    GROMMET
  • 3
    99019 CLAMP
    CLAMP
  • 4
    42941001 SEAL, Water Tube
    SEAL, Water Tube
  • 5
    32-8M0042795 TUBE, Water
    (Short)
    TUBE, Water
    (Short)
  • 5
    32-8M0042794 TUBE, Water
    (Long)
    TUBE, Water
    (Long)
  • 6
    8M0046061 TUBE, Exhaust
    TUBE, Exhaust
  • 7
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 8
    27-8M0000821 GASKET, Driveshaft Housing
    GASKET, Driveshaft Housing
  • 9
    821439T4 ADAPTOR PLATE
    ADAPTOR PLATE
  • 10
    17-23784 PIN, Dowel
    PIN, Dowel
  • 11
    10-4010875 SCREW, (M10 x 75) Hex Flange - Stainless Steel
    SCREW, (M10 x 75) Hex Flange - Stainless Steel
  • 12
    8M0043148 SEAL, Bottom Cowl
    SEAL, Bottom Cowl
  • 13
    822419 COUPLER
    COUPLER
  • 14
    25-822408001 GROMMET, Shift Shaft
    GROMMET, Shift Shaft
  • 15
    880042 SHIFT SHAFT, Upper
    SHIFT SHAFT, Upper
  • 16
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 17
    17-822417 PIN
    PIN
  • 18
    18-210711 COTTER PIN
    COTTER PIN
  • 19
    8M0000520 SCREW, (M12 x 162)
    SCREW, (M12 x 162)
  • 20
    1400-8M4501487 MOUNT
    MOUNT
  • 21
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 22
    12-32834 WASHER, Neoprene
    WASHER, Neoprene
  • 23
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 24
    11-896963 NUT, (M12)
    NUT, (M12)
  • 25
    821512A4 TRIM COVER
    TRIM COVER
  • 26
    8M0043155 BUMPER
    BUMPER
  • 27
    10-826173 SCREW, (M5 x .8 x 60)
    SCREW, (M5 x .8 x 60)
  • 28
    12-73288 WASHER, (.220 x .500 x .030) Stainless Steel
    WASHER, (.220 x .500 x .030) Stainless Steel
  • 29
    11-401365 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 30
    8249423 SEAL, Exhaust Bucket
    SEAL, Exhaust Bucket
  • 31
    8M0036863 BUCKET, Exhaust
    BUCKET, Exhaust
  • 32
    8M0043170 BUMPER, Trim Cover
    BUMPER, Trim Cover
  • 33
    822395001 SEAL, Exhaust Tube
    SEAL, Exhaust Tube
  • 34
    822422001 SEAL, Idle Relief
    SEAL, Idle Relief
  • 35
    10-817430110 SCREW, (M10 x 110)
    SCREW, (M10 x 110)
  • 36
    3525-821841T7 HOUSING, Driveshaft
    (Short)
    HOUSING, Driveshaft
    (Short)
  • 36
    3531-821447T10 HOUSING, Driveshaft
    (Long)
    HOUSING, Driveshaft
    (Long)
  • 37
    16-823984 STUD, (M10 x 50)
    (Short/Long)
    STUD, (M10 x 50)
    (Short/Long)
  • 37
    16-824083 STUD, (M10 x 114)
    (LL)
    STUD, (M10 x 114)
    (LL)
  • 38
    10-824459120 SCREW, (M8 x 120) Stainless Steel
    SCREW, (M8 x 120) Stainless Steel
  • 39
    821781003 MOUNT
    MOUNT
  • 40
    821780T5 COVER, Mount
    COVER, Mount
  • 41
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 42
    11-40140 NUT, (M10)
    NUT, (M10)
  • 43
    10-878607 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 44
    10-82445965 SCREW, (M8 x 65) Stainless Steel
    SCREW, (M8 x 65) Stainless Steel
  • 45
    13-72521 LOCKWASHER, Internal Tooth
    LOCKWASHER, Internal Tooth
  • 46
    88238A11 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 47
    821782002 BUMPER, Front
    BUMPER, Front
  • 48
    821781003 MOUNT
    MOUNT
  • 49
    821780T5 COVER, Mount
    COVER, Mount
  • 50
    12-36001 WASHER
    WASHER
  • 51
    11-401378 NUT, (M8)
    NUT, (M8)
  • -
    27-822420A94 GASKET SET
    GASKET SET
