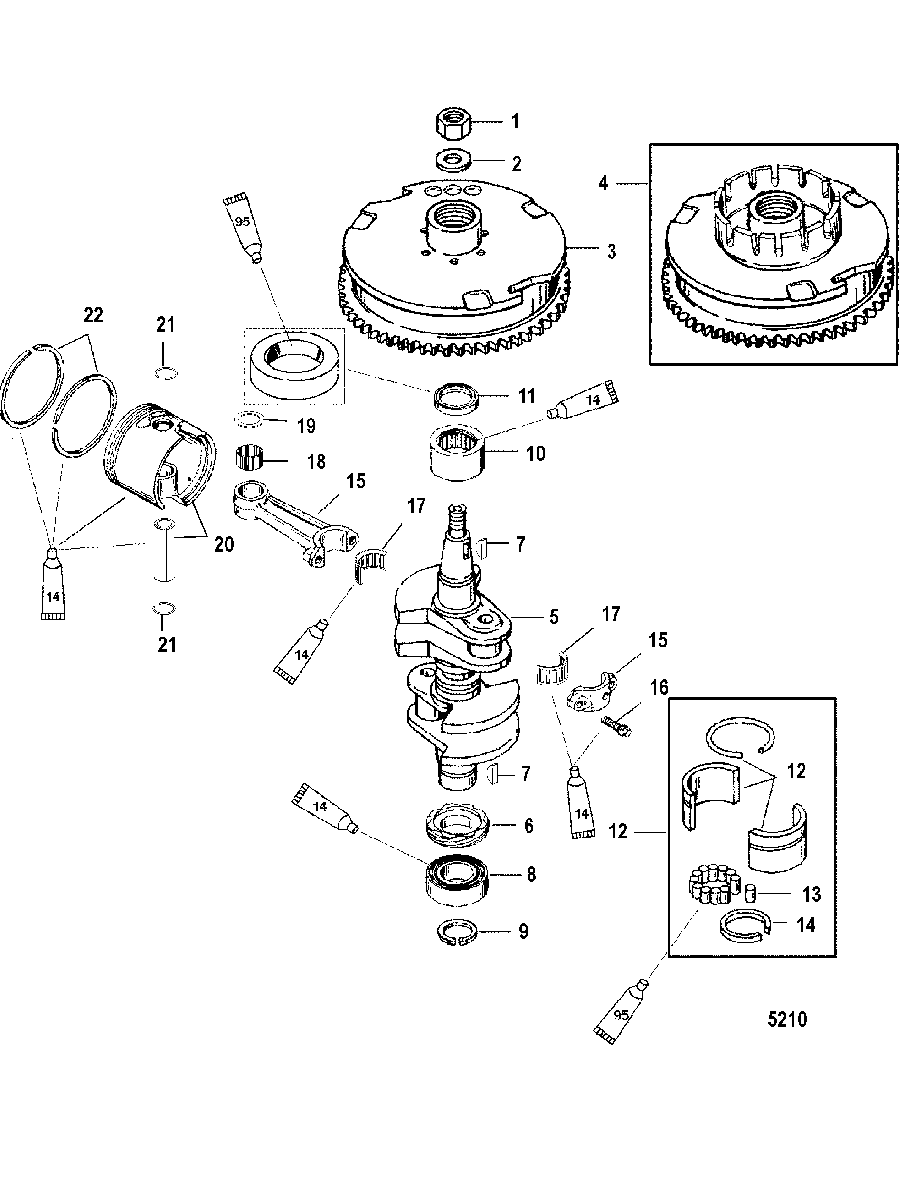

Crankshaft/Piston/Flywheel для Mariner - 40 (2 CYL.) 0P325500 & Up

№

Артикул

Название
1

11-42979 NUT, (M16)

NUT, (M16)

300 ₽
2

12-33001 WASHER, (.641 x 1.250 x .190)

WASHER, (.641 x 1.250 x .190)

600 ₽
3

261-859233T23 FLYWHEEL
(Electric)

FLYWHEEL
(Electric)

62 440 ₽
4

261-859233T24 FLYWHEEL
(Manual)

FLYWHEEL
(Manual)

57 610 ₽
5

493-821369T01 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

219 170 ₽
6

43-43019A2 GEAR ASSEMBLY, Driver

GEAR ASSEMBLY, Driver

6 030 ₽
7

28-91800 KEY, Woodruff

KEY, Woodruff

340 ₽
8

30-63742T BEARING, Ball

BEARING, Ball

3 440 ₽
9

53-812877 RING, Retaining

RING, Retaining

180 ₽
10

31-818889A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

7 240 ₽
11

26-8173971 SEAL, Oil

SEAL, Oil

1 700 ₽
12

827955A2 BEARING ASSEMBLY, Center Main

BEARING ASSEMBLY, Center Main

10 540 ₽
13

NSS NOT SOLD SEPARATE, Roller

NOT SOLD SEPARATE, Roller

0 ₽
14

NSS NOT SOLD SEPARATE, Ring-Seal

NOT SOLD SEPARATE, Ring-Seal

0 ₽
15

640-9612A6 CONNECTING ROD ASSEMBLY
(With Steel Bearings)

CONNECTING ROD ASSEMBLY
(With Steel Bearings)

23 030 ₽
15

640-9612A6 CONNECTING ROD ASSEMBLY
(With Plastic Bearings)

CONNECTING ROD ASSEMBLY
(With Plastic Bearings)

23 030 ₽
16

10-91012 SCREW, (.250-28 Special)

SCREW, (.250-28 Special)

530 ₽
17

31-8M0045428 BEARING KIT
(Steel)

BEARING KIT
(Steel)

7 260 ₽
17

31-8M0045428 BEARING KIT
(Plastic)

BEARING KIT
(Plastic)

7 260 ₽
18

29-47270 BEARING

BEARING

40 ₽
19

12-8M0012298 WASHER

WASHER

450 ₽
20

705-850026T3 PISTON
(Standard)

PISTON
(Standard)

14 120 ₽
20

705-850026T2 PISTON
(.015 Oversize)

PISTON
(.015 Oversize)

22 840 ₽
21

53-857196 LOCK RING

LOCK RING

100 ₽
22

39-821695A4 RING SET, Piston
(Standard)

RING SET, Piston
(Standard)

8 730 ₽
22

39-821695A1 RING SET, Piston
(.015 Oversize)

RING SET, Piston
(.015 Oversize)

11 750 ₽
-

808569T02 POWERHEAD ASSEMBLY
30 HP

POWERHEAD ASSEMBLY
30 HP

417 950 ₽
-

61-8M0063311 POWERHEAD ASSEMBLY
40 HP

POWERHEAD ASSEMBLY
40 HP

355 390 ₽
