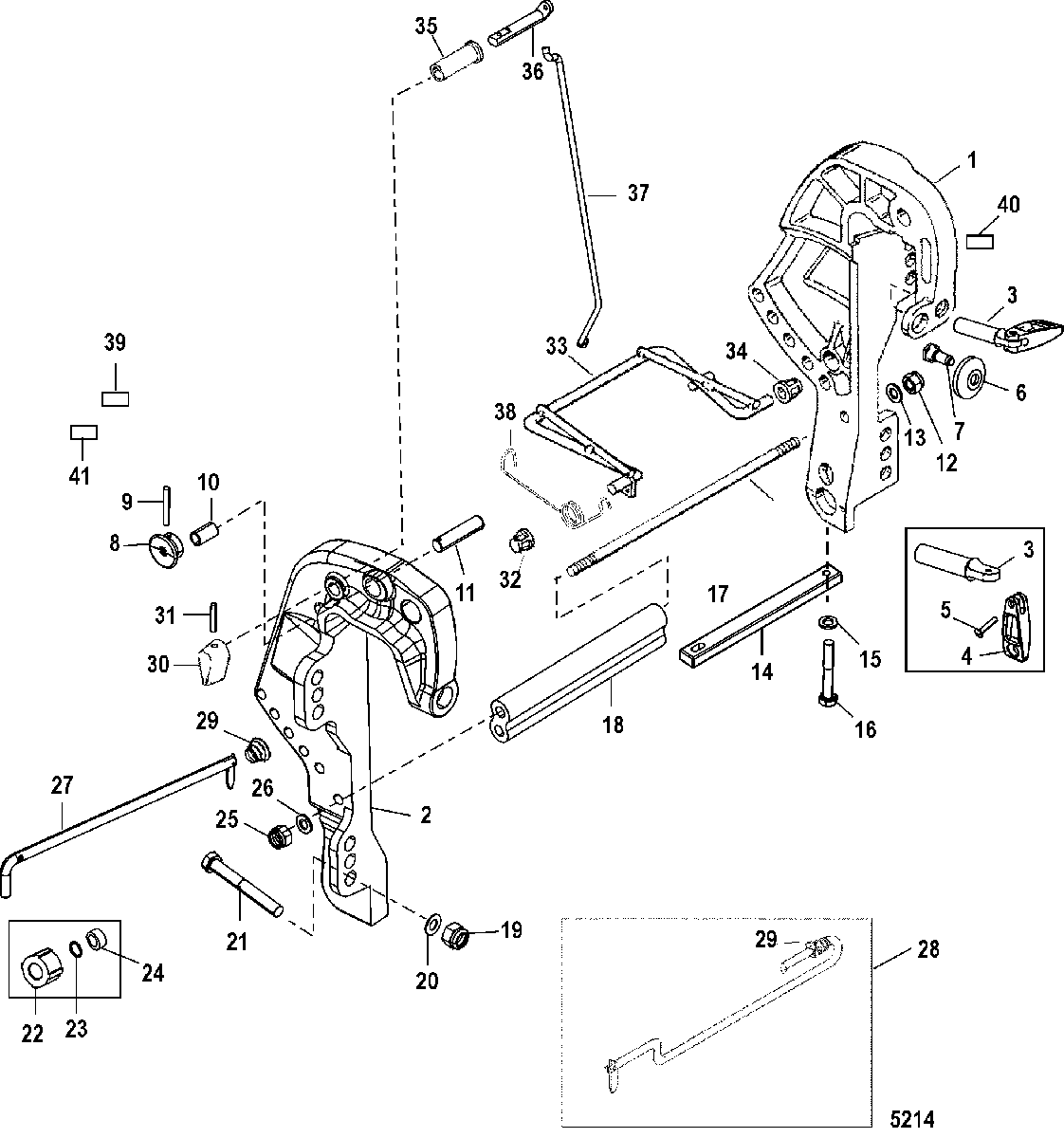

Clamp Bracket для Mariner - 40 (2 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    3411-821773A3 CLAMP BRACKET
    (Port Short)(1 Lower Mounting Hole)
    CLAMP BRACKET
    (Port Short)(1 Lower Mounting Hole)
  • 1
    3411-821773T1 CLAMP BRACKET
    (Port Long)(3 Lower Mounting Holes)
    CLAMP BRACKET
    (Port Long)(3 Lower Mounting Holes)
  • 2
    3412-821774T6 CLAMP BRACKET
    (Starboard Short)
    CLAMP BRACKET
    (Starboard Short)
  • 2
    3412-821774T8 CLAMP BRACKET
    (Starboard Long)
    CLAMP BRACKET
    (Starboard Long)
  • 3
    10-818883A1 THUMB SCREW ASSEMBLY
    (Manual)
    THUMB SCREW ASSEMBLY
    (Manual)
  • 4
    NSS NOT SOLD SEPARATE, Handle-Manual
    NOT SOLD SEPARATE, Handle-Manual
  • 5
    NSS NOT SOLD SEPARATE, Rivet-Manual
    NOT SOLD SEPARATE, Rivet-Manual
  • 6
    12-818884 WASHER
    (Manual)
    WASHER
    (Manual)
  • 7
    10-768042 SHOULDER SCREW, Hex
    (Manual)
    SHOULDER SCREW, Hex
    (Manual)
  • 8
    8224011 CAP
    CAP
  • 9
    17-25810 PIN
    PIN
  • 10
    23-86637 BEARING
    BEARING
  • 11
    17-8224002 PIN
    PIN
  • 12
    11-40140 NUT, (M10)
    NUT, (M10)
  • 13
    12-4002319 WASHER
    WASHER
  • 14
    97-8252711 ANODE
    ANODE
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 17
    16-8M0034459 STUD, (M10 x 277)
    STUD, (M10 x 277)
  • 18
    23-824952 SPACER
    SPACER
  • 19
    11-82671117 NUT, (.500-20)
    (Long)
    NUT, (.500-20)
    (Long)
  • 19
    11-82671117 NUT, (.500-20)
    (Short-Top)
    NUT, (.500-20)
    (Short-Top)
  • 19
    11-4013710 NUT, (M10) (M10 x 1.5)
    (Short-Bottom)
    NUT, (M10) (M10 x 1.5)
    (Short-Bottom)
  • 20
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (Long)
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (Long)
  • 20
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (Short-Top)
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (Short-Top)
  • 20
    12-4002319 WASHER
    (Short-Bottom)
    WASHER
    (Short-Bottom)
  • 21
    10-814259 SCREW, (.500-20 x 4.00)
    (Long)
    SCREW, (.500-20 x 4.00)
    (Long)
  • 21
    10-814259 SCREW, (.500-20 x 4.00)
    (Short-Top)
    SCREW, (.500-20 x 4.00)
    (Short-Top)
  • 21
    10-826110 SCREW
    (Short-Bottom)
    SCREW
    (Short-Bottom)
  • 22
    19624A1 SEAL KIT
    SEAL KIT
  • 23
    25-29619 O-RING, (.583 x .103)
    O-RING, (.583 x .103)
  • 24
    23-78861 SPACER
    SPACER
  • 25
    11-40140 NUT, (M10)
    NUT, (M10)
  • 26
    12-4002319 WASHER
    WASHER
  • 27
    17-8M0026103 PIN ASSEMBLY, Tilt Lock
    (Work)
    PIN ASSEMBLY, Tilt Lock
    (Work)
  • 28
    17-853923A1 PIN
    (Manual Trim)
    PIN
    (Manual Trim)
  • 29
    24-821461 SPRING
    SPRING
  • 30
    822409 LEVER, Shallow Water Drive
    LEVER, Shallow Water Drive
  • 31
    17-25319 PIN, (.125 x 0.75 Inches)
    PIN, (.125 x 0.75 Inches)
  • 32
    23-824858 BUSHING, PLASTIC
    BUSHING, PLASTIC
  • 33
    878580 ROD, Plastic, Shallow Water Drive
    ROD, Plastic, Shallow Water Drive
  • 34
    23-824858 BUSHING, Plastic
    BUSHING, Plastic
  • 35
    23-823812 BUSHING
    BUSHING
  • 36
    822411 ARM
    ARM
  • 37
    878563 LINK ROD
    LINK ROD
  • 38
    24-832085A1 SPRING
    SPRING
  • 39
    37-830253 DECAL, Tilt Lock
    DECAL, Tilt Lock
  • 40
    NSS NOT SOLD SEPARATE, Warning Decal
    NOT SOLD SEPARATE, Warning Decal
  • 41
    NSS NOT SOLD SEPARATE, Shallow Water Drive Decal
    NOT SOLD SEPARATE, Shallow Water Drive Decal
