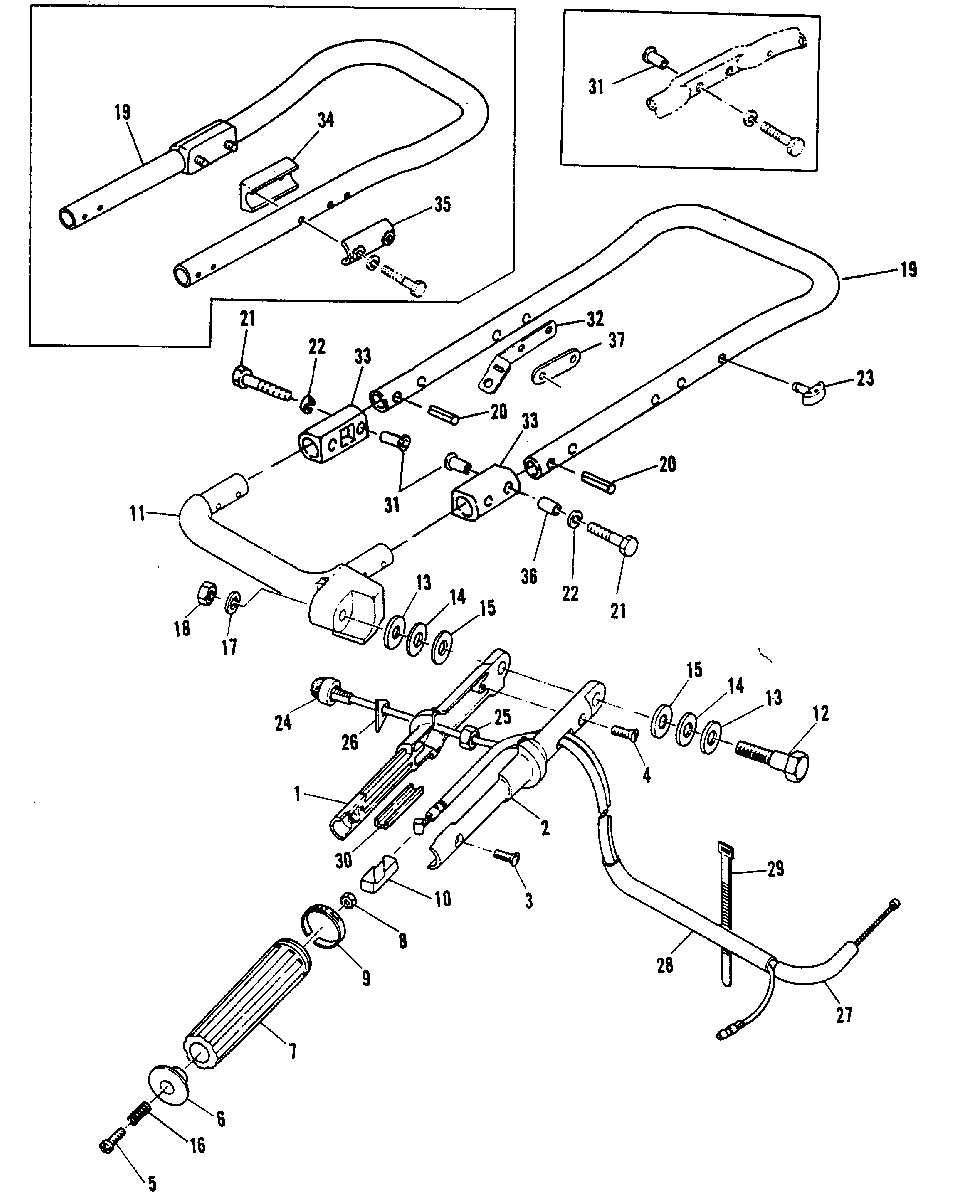

STEERING HANDLE для Mariner - 3.5 642-41690 AND BELOW

  • №
    Артикул
    Название
  • 1
    84370M STEERING ARM
    SERIAL 00023741-09999999
    STEERING ARM
    SERIAL 00023741-09999999
  • 2
    84371M PORT STEERING ARM
    SERIAL 00023741-09999999
    PORT STEERING ARM
    SERIAL 00023741-09999999
  • 1
    NLA STEERING ARM
    SERIAL 00000000-00023740
    STEERING ARM
    SERIAL 00000000-00023740
  • 2
    80312M PORT STEERIN ARM
    SERIAL 00000000-00023740
    PORT STEERIN ARM
    SERIAL 00000000-00023740
  • 3
    10-82532M SCREW
    SERIAL 00016021-09999999
    SCREW
    SERIAL 00016021-09999999
  • 3
    10-82751M SCREW
    SERIAL 00000000-00016020
    SCREW
    SERIAL 00000000-00016020
  • 4
    10-82528M SCREW
    SCREW
  • 5
    10-84438M SCREW
    SCREW
  • 6
    80155M CAP
    CAP
  • 7
    80152M GRIP
    GRIP
  • 8
    11-82388M NUT
    NUT
  • 9
    37-80156M INDICATOR
    INDICATOR
  • 10
    80153M GUIDE
    GUIDE
  • 11
    80151M FRONT BRACKET
    FRONT BRACKET
  • 12
    10-84372M BOLT
    SERIAL 00023741-09999999
    BOLT
    SERIAL 00023741-09999999
  • 12
    10-84372M BOLT
    SERIAL 00000000-00023740
    BOLT
    SERIAL 00000000-00023740
  • 12A
    12-81802M WASHER
    SERIAL 00000000-00016020
    WASHER
    SERIAL 00000000-00016020
  • 13
    12-81810M WASHER
    WASHER
  • 14
    12-81850M WASHER
    WASHER
  • 15
    12-81849M WASHER
    WASHER
  • 16
    24-82075M SPRING
    SPRING
  • 17
    13-82215M LOCKWASHER
    LOCKWASHER
  • 18
    11-82383M NUT
    NUT
  • 19
    94784M REAR BRACKET
    SERIAL 00004281-09999999
    REAR BRACKET
    SERIAL 00004281-09999999
  • 19
    80158M REAR BRACKET
    SERIAL 00010621-00004280
    REAR BRACKET
    SERIAL 00010621-00004280
  • 19
    NLA REAR BRACKET
    SERIAL 00000000-00016020
    REAR BRACKET
    SERIAL 00000000-00016020
  • 20
    17-82157M ROLL PIN
    ROLL PIN
  • 21
    10-827043M BOLT
    SERIAL 00004281-09999999
    BOLT
    SERIAL 00004281-09999999
  • 21
    10-83285M BOLT
    SERIAL 00016021-0-004280
    BOLT
    SERIAL 00016021-0-004280
  • 21
    10-827043M BOLT
    SERIAL 00000000-00038865
    BOLT
    SERIAL 00000000-00038865
  • 22
    13-82212M LOCKWASHER
    LOCKWASHER
  • 23
    80094M HOLDER
    HOLDER
  • 24
    87-80184M STOP SWITCH
    STOP SWITCH
  • 25
    11-82383M NUT
    NUT
  • 26
    80185M STOPPER
    STOPPER
  • 27
    80143M THROTTLE WIRE
    THROTTLE WIRE
  • 28
    23-82029M SLEEVE
    SLEEVE
  • 29
    80024M BAND
    BAND
  • 30
    23-80157M BUSHING
    BUSHING
  • 31
    23-804344003 BUSHING
    BUSHING
  • 32
    NLA BRACKET
    SERIAL 00000000-00000100
    BRACKET
    SERIAL 00000000-00000100
  • 33
    94785M COVER
    SERIAL 00023741-09999999
    COVER
    SERIAL 00023741-09999999
  • 34
    NLA MOUNT
    SERIAL 00000000-00016020
    MOUNT
    SERIAL 00000000-00016020
  • 35
    82585M RETAINER
    RETAINER
  • 36
    23-81968M COLLAR
    SERIAL 00016021-00019075
    COLLAR
    SERIAL 00016021-00019075
  • 37
    NLA WASHER
    WASHER
