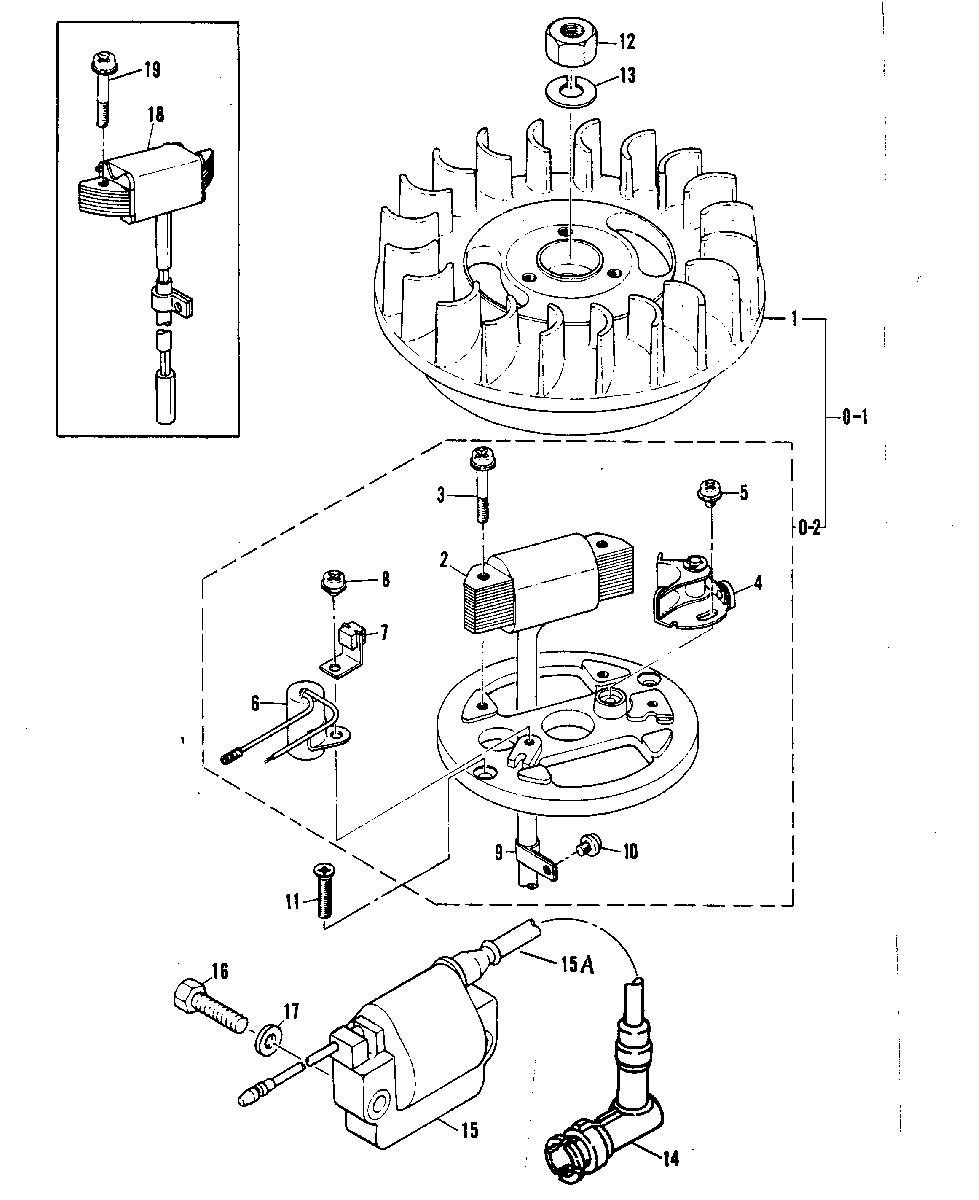

FLYWHEEL MAGNETO для Mariner - 3.5 642-41690 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    80179M FLYWHEEL MAGNETO
    SERIAL 00016426-09999999
    FLYWHEEL MAGNETO
    SERIAL 00016426-09999999
  • 1
    253-6717M FLYWHEEL
    SERIAL 00016426-09999999
    FLYWHEEL
    SERIAL 00016426-09999999
  • 0-1
    NLA FLYWHEEL MAGNETO
    SERIAL 00000000-00016425
    FLYWHEEL MAGNETO
    SERIAL 00000000-00016425
  • 1
    NLA FLYWHEEL
    SERIAL 00000000-00016425
    FLYWHEEL
    SERIAL 00000000-00016425
  • 0-2
    NLA MAGNETO BASE
    MAGNETO BASE
  • 2
    82855M IGNITON COIL
    SERIAL 00023741-09999999
    IGNITON COIL
    SERIAL 00023741-09999999
  • 2
    NLA IGNITON COIL
    SERIAL 00016425-00023740
    IGNITON COIL
    SERIAL 00016425-00023740
  • 2
    82581M IGNITION COIL
    SERIAL 00000000-00016425
    IGNITION COIL
    SERIAL 00000000-00016425
  • 3
    10-82507M SCREW
    SCREW
  • 4
    80181M BREAKER
    SERIAL 00016426-09999999
    BREAKER
    SERIAL 00016426-09999999
  • 4
    82573M BREAKER
    SERIAL 00000000-00016425
    BREAKER
    SERIAL 00000000-00016425
  • 5
    10-80001M SCREW
    SCREW
  • 6
    80055M CONDENSER
    SERIAL 00016426-09999999
    CONDENSER
    SERIAL 00016426-09999999
  • 6
    81022M CONDENSER
    SERIAL 00000000-00016425
    CONDENSER
    SERIAL 00000000-00016425
  • 7
    80003M LUBRICATOR
    LUBRICATOR
  • 8
    10-82500M SCREW
    SCREW
  • 9
    NLA CLAMP
    CLAMP
  • 10
    10-83565M SCREW
    SCREW
  • 11
    NLA SCREW
    SCREW
  • 12
    11-82384M NUT
    NUT
  • 13
    13-82218M LOCKWASHER
    LOCKWASHER
  • 14
    85-815119M SPARK PLUG CAP (NOISE SUPPRESSOR)
    SPARK PLUG CAP (NOISE SUPPRESSOR)
  • 14
    85-63709A1 SPARK PLUG CAP
    SERIAL 00000000-00032194
    SPARK PLUG CAP
    SERIAL 00000000-00032194
  • 15
    80182M IGNITION COIL
    SERIAL 00023741-09999999
    IGNITION COIL
    SERIAL 00023741-09999999
  • 15A
    84-82831M LEAD
    LEAD
  • 16
    10-82405M BOLT
    BOLT
  • 17
    12-82214M WASHER
    WASHER
  • 18
    82856M LIGHTING COIL (15 WATT) OPTIONAL PARTS
    LIGHTING COIL (15 WATT) OPTIONAL PARTS
  • 19
    10-82507M SCREW OPTIONAL PARTS
    SCREW OPTIONAL PARTS
