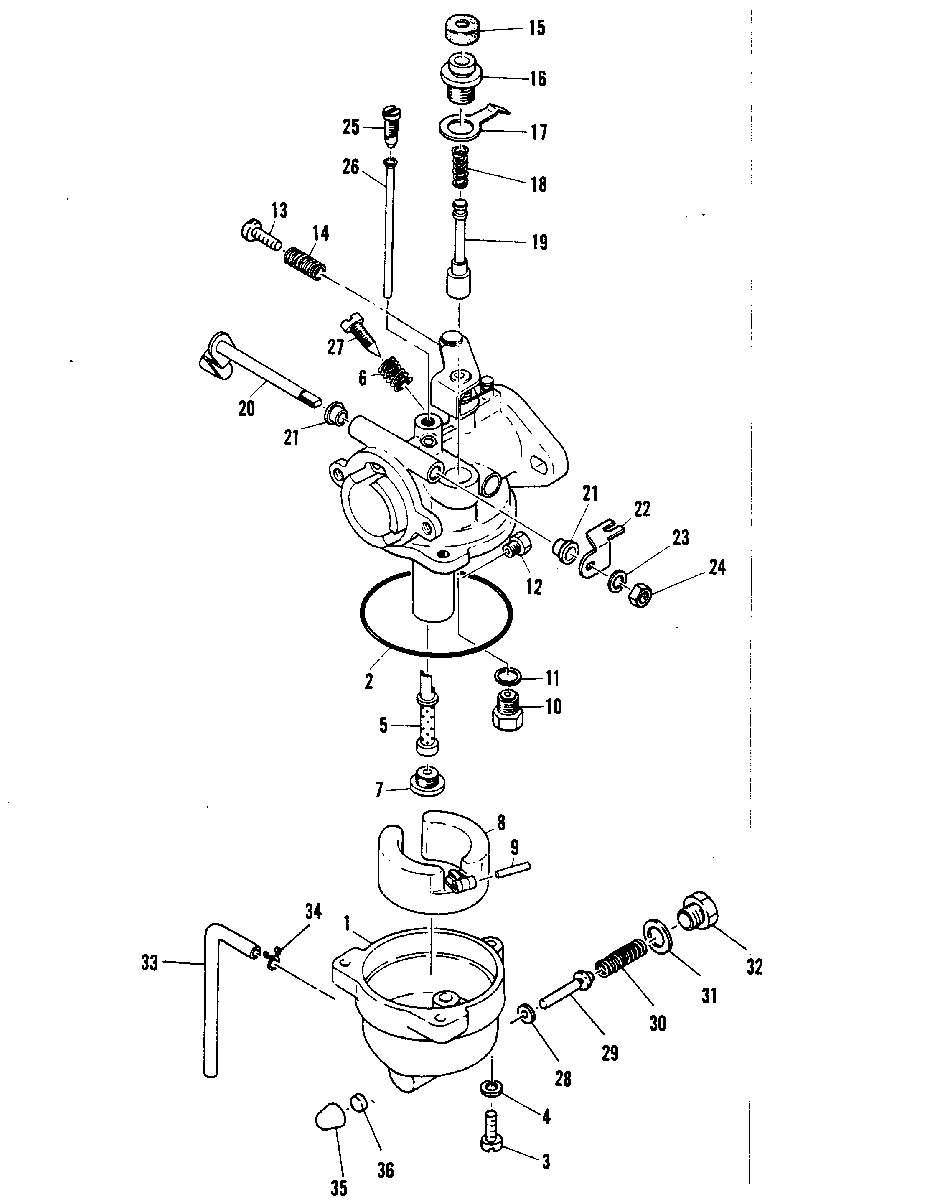

CARBURETOR для Mariner - 3.5 642-41690 AND BELOW

  • №
    Артикул
    Название
  • --
    1383-6908M CARBURETOR
    SERIAL 00025236-09999999
    CARBURETOR
    SERIAL 00025236-09999999
  • 1
    82839M FLOAT BOWL
    FLOAT BOWL
  • --
    1383-6711M CARBURETOR
    SERIAL 00000000-00025235
    CARBURETOR
    SERIAL 00000000-00025235
  • 1
    80118M FLOAT BOWL
    FLOAT BOWL
  • 2
    27-80078M GASKET
    GASKET
  • 3
    10-82501M SCREW
    SCREW
  • 4
    13-82206M LOCKWASHER
    LOCKWASHER
  • 5
    NLA MAIN NOZZLE
    MAIN NOZZLE
  • 6
    24-80080M SPRING
    SPRING
  • 7
    10-80089M SCREW
    SCREW
  • 8
    80075M FLOAT
    FLOAT
  • 9
    17-80076M FLOAT PIN
    FLOAT PIN
  • 10
    80077M INLET VALVE
    INLET VALVE
  • 11
    27-80008M GASKET
    GASKET
  • 12
    80083M MAIN JET (#75)
    MAIN JET (#75)
  • 12
    80082M MAIN JET (#70)
    MAIN JET (#70)
  • 12
    80084M ,MAIN JET (#80)
    ,MAIN JET (#80)
    Производитель Mercury-Mercruiser
  • 12
    80085M MAIN JET (#85)
    MAIN JET (#85)
  • 13
    10-82486M SCREW
    SCREW
  • 14
    NLA SPRING
    SPRING
  • 15
    80014M COVER
    COVER
  • 16
    80072M CAP
    CAP
  • 17
    80074M PLATE
    PLATE
  • 18
    24-80013M SPRING
    SPRING
  • 19
    NLA PLUNGER
    PLUNGER
  • 20
    80117M THROTTLE SHAFT
    THROTTLE SHAFT
  • 21
    NLA BUSHING
    BUSHING
  • 22
    NLA LEVER
    LEVER
  • 23
    13-82186M LOCKWASHER
    LOCKWASHER
  • 24
    11-82375M NUT
    NUT
  • 25
    80069M LOW SPEED JET (#40)
    LOW SPEED JET (#40)
  • 26
    80070M JET PIPE
    JET PIPE
  • 27
    10-80079M IDLE MIXTURE SCREW
    IDLE MIXTURE SCREW
  • 28
    27-80086M GASKET S-25235 L-42370 & BELOEW
    SERIAL 00000000-00025235
    GASKET S-25235 L-42370 & BELOEW
    SERIAL 00000000-00025235
  • 29
    82540M DRAIN VALVE
    SERIAL 00000000-00025235
    DRAIN VALVE
    SERIAL 00000000-00025235
  • 30
    24-80022M SPRING
    SERIAL 00000000-00025235
    SPRING
    SERIAL 00000000-00025235
  • 31
    12-81700M WASHER
    SERIAL 00000000-00025235
    WASHER
    SERIAL 00000000-00025235
  • 32
    10-81682M BOLT
    SERIAL 00000000-00025235
    BOLT
    SERIAL 00000000-00025235
  • 33
    32-81992M HOSE
    SERIAL 00000000-00025235
    HOSE
    SERIAL 00000000-00025235
  • 34
    54-82045M CLAMP
    SERIAL 00000000-00025235
    CLAMP
    SERIAL 00000000-00025235
  • 35
    80081M CAP
    SERIAL 00000000-00025235
    CAP
    SERIAL 00000000-00025235
  • 36
    80090M BUTTON PUSH
    SERIAL 00000000-00025235
    BUTTON PUSH
    SERIAL 00000000-00025235
