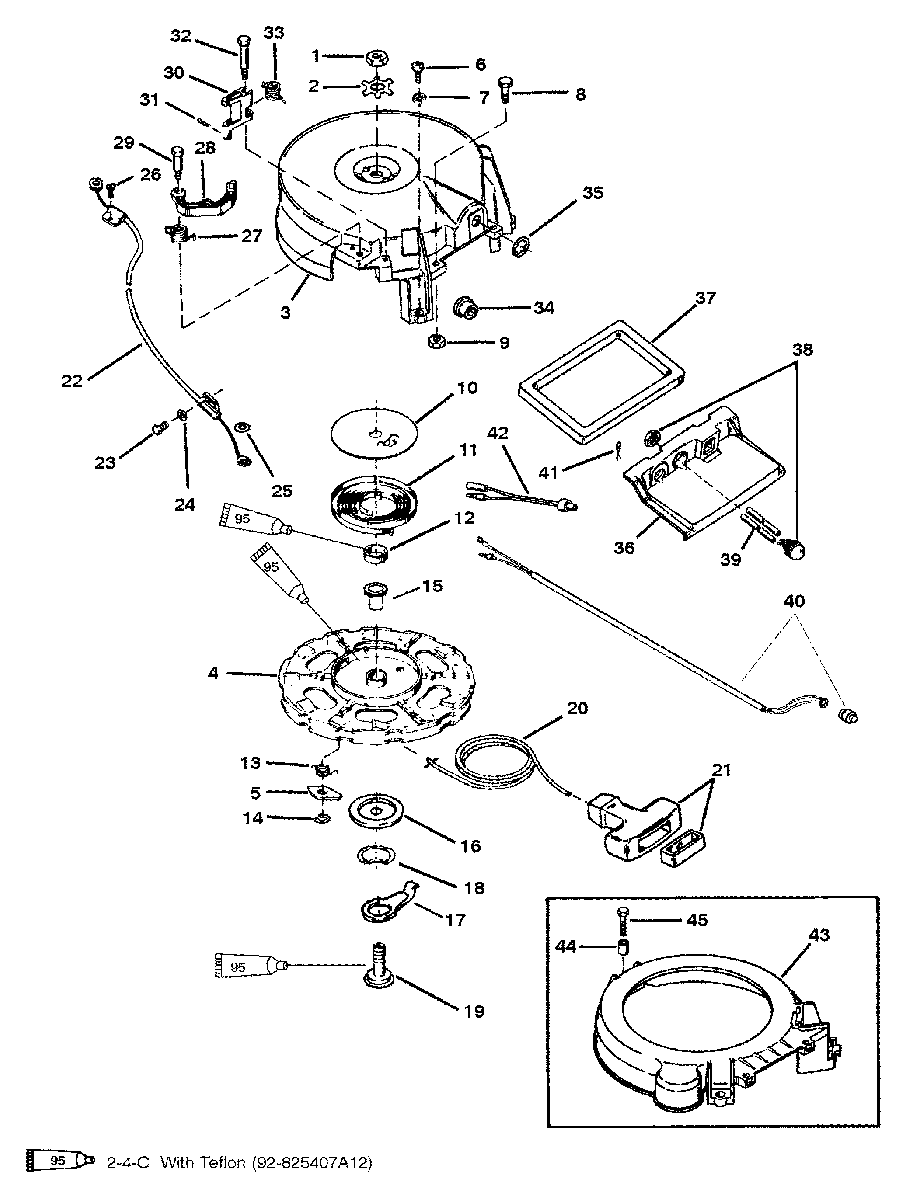

STARTER REWIND для Mariner - 30 JET 9570790 AND UP
-
№АртикулНазвание
-
111-20166 NUT-SHEAVE SHAFT (LEFT HAND THREAD)NUT-SHEAVE SHAFT (LEFT HAND THREAD)
-
214-61004 TAB WASHER-SHEAVE SHAFT NUTTAB WASHER-SHEAVE SHAFT NUT
-
3186471 STARTER HOUSINGSTARTER HOUSING
-
450-44255A1 STARTER SHEAVESTARTER SHEAVE
-
544508 STARTER PAWLSTARTER PAWL
-
610-54523 SCREW-STARTER HOUSINGSCREW-STARTER HOUSING
-
713-26993 LOCKWASHER-STARTER HOUSING SCREWLOCKWASHER-STARTER HOUSING SCREW
-
810-45210 SCREW-STARTER HOUSINGSCREW-STARTER HOUSING
-
911-8267086 NUT-STARTER HOUSING SCREWNUT-STARTER HOUSING SCREW
-
1061002 PLATE-STARTER REWINDPLATE-STARTER REWIND
-
1124-39502T02 SPRING-STARTER REWINDSPRING-STARTER REWIND
-
1223-87649 BUSHING-SPRING GUIDEBUSHING-SPRING GUIDE
-
1324-87651 SPRING-STARTER PAWLSPRING-STARTER PAWL
-
1453-87706 E-RING-STARTER PAWLE-RING-STARTER PAWL
-
1523-63061 SPACER-SHEAVE SHAFTSPACER-SHEAVE SHAFT
-
1612-35559 WASHER-STARTER REWINDWASHER-STARTER REWIND
-
1794962 LEVERLEVER
-
1813-20160 WAVE WASHERWAVE WASHER
-
1987656 SHEAVE SHAFTSHEAVE SHAFT
-
2050-12066Q10 STARTER ROPE ASSEMBLYSTARTER ROPE ASSEMBLY
-
2047341A11 STARTER ROPE (FOR MANUAL STARTING)STARTER ROPE (FOR MANUAL STARTING)
-
2185174A1 HANDLE AND RETAINER ASSEMBLYHANDLE AND RETAINER ASSEMBLY
-
22188881 CABLE-INTERLOCK
SUPERSEDES TO ANOTHER PART NUMBERCABLE-INTERLOCK
SUPERSEDES TO ANOTHER PART NUMBER -
2310-69022 SCREW-INTERLOCK CABLE ATTACHING (1/2 IN.)SCREW-INTERLOCK CABLE ATTACHING (1/2 IN.)
-
2412-73288 WASHER-INTERLOCK CABLE SCREWWASHER-INTERLOCK CABLE SCREW
-
2512-37998 WASHERWASHER
-
2610-878608 SCREWSCREW
-
2724-761401 SPRING-INTERLOCK CAM SCREWSPRING-INTERLOCK CAM SCREW
-
28428201 CAM-INTERLOCKCAM-INTERLOCK
-
2910-76138 SCREW-INTERLOCK CAM (1-1/8 IN.)SCREW-INTERLOCK CAM (1-1/8 IN.)
-
3079371 ACTUATOR-INTERLOCKACTUATOR-INTERLOCK
-
3118-26811 COTTER PIN-INTERLOCK CABLE TO ACTUATORCOTTER PIN-INTERLOCK CABLE TO ACTUATOR
-
3210-76137 SCREW-INTERLOCK ACTUATOR (1-5/8 IN.)SCREW-INTERLOCK ACTUATOR (1-5/8 IN.)
-
3324-76139 SPRING-INTERLOCK ACTUATOR SCREWSPRING-INTERLOCK ACTUATOR SCREW
-
3442690 BUSHINGBUSHING
-
3553-818853 RETAINING RINGRETAINING RING
-
36813544 REST ASSEMBLYREST ASSEMBLY
-
37813641 SEALSEAL
-
38858763 PRIMER BULBPRIMER BULB
-
3932-892024122 TUBINGTUBING
-
4084-89591A5 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
4118-36002 COTTER PINCOTTER PIN
-
4284-11149A2 CABLE ASSEMBLY (NON-HANDLE)CABLE ASSEMBLY (NON-HANDLE)
-
43812617 COVER-FLYWHEEL
ELECTRICCOVER-FLYWHEEL
ELECTRIC -
4423-812611 SPACER-COVER SCREW
ELECTRICSPACER-COVER SCREW
ELECTRIC -
4510-812618 SCREW-FLYWHEEL COVER
ELECTRICSCREW-FLYWHEEL COVER
ELECTRIC
