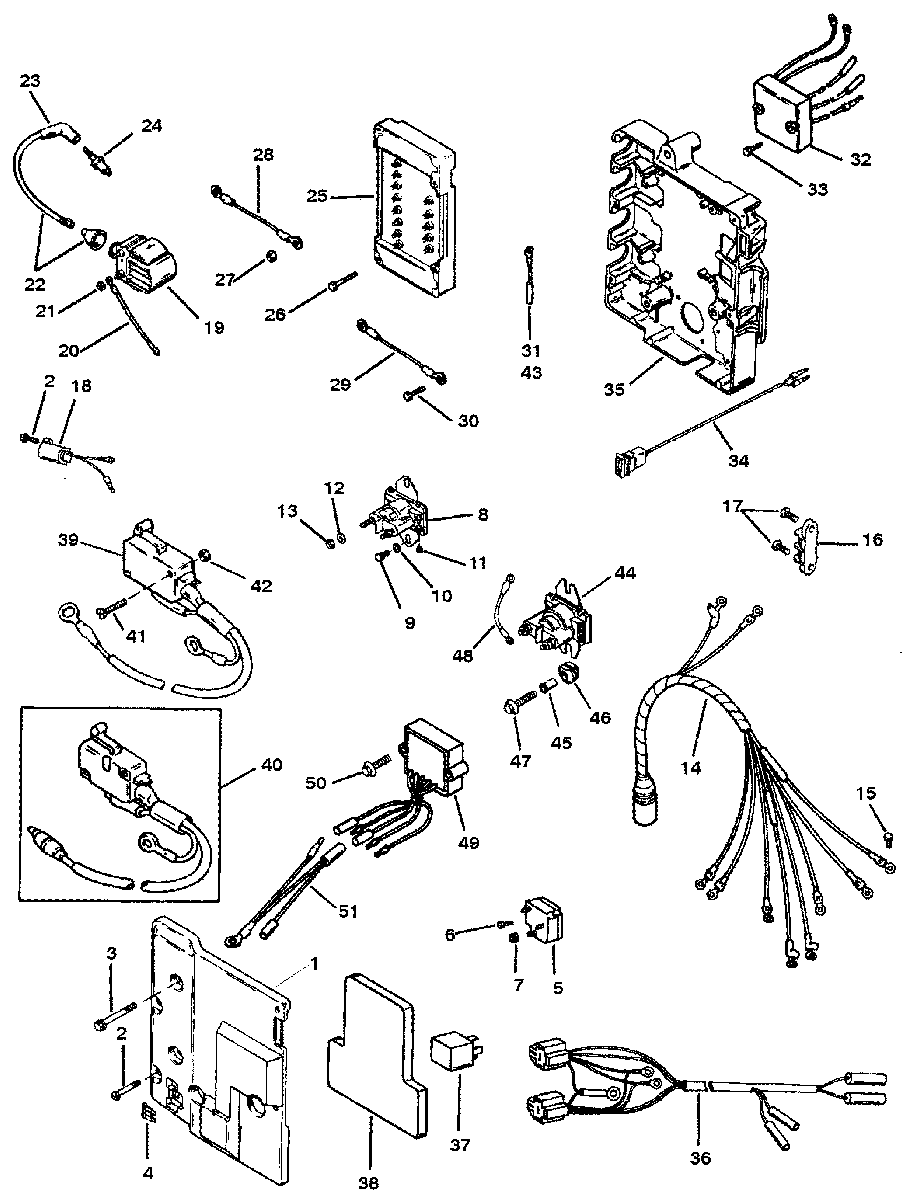

ELECTRICAL BOX COMPONENTS для Mariner - 30 JET 9570790 AND UP

  • №
    Артикул
    Название
  • 1
    19106 COVER-ELECTRICAL BOX
    COVER-ELECTRICAL BOX
  • 2
    10-418051 SCREW-MERCURY SWITCH AND COVER
    SCREW-MERCURY SWITCH AND COVER
  • 3
    10-19639 SCREW-COVER AND BOX TO ENGINE
    SCREW-COVER AND BOX TO ENGINE
  • 4
    88-812619 FUSE
    ELECTRIC
    FUSE
    ELECTRIC
  • 5
    8M0058226 RECTIFIER
    ELECTRIC
    RECTIFIER
    ELECTRIC
  • 6
    10-418051 SCREW-RECTIFIER
    ELECTRIC
    SCREW-RECTIFIER
    ELECTRIC
  • 7
    11-45076 NUT-RECTIFIER TERMINAL
    ELECTRIC
    NUT-RECTIFIER TERMINAL
    ELECTRIC
  • 8
    89-96054T STARTER SOLENOID
    ELECTRIC
    STARTER SOLENOID
    ELECTRIC
  • 9
    10-41508 SCREW-SOLENOID
    ELECTRIC
    SCREW-SOLENOID
    ELECTRIC
  • 10
    13-26992 WASHER-STARTER SOLENOID SCREW
    ELECTRIC
    WASHER-STARTER SOLENOID SCREW
    ELECTRIC
  • 11
    11-26419 NUT-SOLENOID TERMINAL (#8-32)
    ELECTRIC
    NUT-SOLENOID TERMINAL (#8-32)
    ELECTRIC
  • 12
    13-26992 LOCKWASHER-SOLENOID TERMINAL
    ELECTRIC
    LOCKWASHER-SOLENOID TERMINAL
    ELECTRIC
  • 13
    11-64015 NUT-SOLENOID TERMINAL (1/4-20)
    ELECTRIC
    NUT-SOLENOID TERMINAL (1/4-20)
    ELECTRIC
  • 14
    84-18672A2 WIRING HARNESS (USE WITH REF. #18)
    ELECTRIC
    WIRING HARNESS (USE WITH REF. #18)
    ELECTRIC
  • 14
    84-18672A6 HARNESS (GRAY LEAD HAS RING TERMINAL)
    ELECTRIC
    HARNESS (GRAY LEAD HAS RING TERMINAL)
    ELECTRIC
  • 14
    84-18672A8 HARNESS (GRAY LEAD HAS BULLET CONNECTOR)
    ELECTRIC
    HARNESS (GRAY LEAD HAS BULLET CONNECTOR)
    ELECTRIC
  • -
    84-88807A14 CABLE (RING/MALE CONNECTOR)
    ELECTRIC
    CABLE (RING/MALE CONNECTOR)
    ELECTRIC
  • -
    84-88807A15 CABLE (RING/FEMALE CONNECTOR)
    ELECTRIC
    CABLE (RING/FEMALE CONNECTOR)
    ELECTRIC
  • 15
    10-878608 SCREW-WIRING HARNESS LEAD
    ELECTRIC
    SCREW-WIRING HARNESS LEAD
    ELECTRIC
  • 16
    86-638131 TERMINAL BLOCK
    MANUAL
    TERMINAL BLOCK
    MANUAL
  • 17
    10-418051 SCREW-TERMINAL BLOCK (5/8 IN.)
    MANUAL
    SCREW-TERMINAL BLOCK (5/8 IN.)
    MANUAL
  • 17
    10-62568 SCREW-TERMINAL BLOCK (3/8 IN.)
    MANUAL
    SCREW-TERMINAL BLOCK (3/8 IN.)
    MANUAL
  • 18
    16731T01 MERCURY SWITCH
    MERCURY SWITCH
  • 19
    339-832757A4 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 20
    84-60466A19 GROUND WIRE-COIL TO SWITCH BOX
    GROUND WIRE-COIL TO SWITCH BOX
  • 21
    11-45076 NUT-IGNITION COIL TERMINALS
    NUT-IGNITION COIL TERMINALS
  • 22
    84-813715A12 LEAD ASSEMBLY-SPARK PLUG
    LEAD ASSEMBLY-SPARK PLUG
  • 23
    85-63709A1 PROTECTOR ASSEMBLY
    PROTECTOR ASSEMBLY
  • 24
    33-97182Q SPARK PLUG
    SPARK PLUG
  • 24
    33-14103550 SPARK PLUG
    (BELGIUM AND CANADA)
    SPARK PLUG
    (BELGIUM AND CANADA)
  • 25
    332-5772A7 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 26
    10-812987 SCREW-SWITCH BOX
    SCREW-SWITCH BOX
  • 27
    11-45076 NUT-SWITCH BOX TERMINALS
    NUT-SWITCH BOX TERMINALS
  • 28
    84-88818A1 CABLE (GREEN)
    CABLE (GREEN)
  • 28
    84-88819A1 CABLE (GREEN/WHITE)
    CABLE (GREEN/WHITE)
  • 28
    84-88820A1 CABLE (GREEN/BLACK)
    CABLE (GREEN/BLACK)
  • 28
    84-88821A1 CABLE (GREEN/RED)
    CABLE (GREEN/RED)
  • 29
    84-88807A30 CABLE (BLACK)
    MANUAL
    CABLE (BLACK)
    MANUAL
  • 30
    10-878608 SCREW
    MANUAL
    SCREW
    MANUAL
  • 31
    84-813060A1 CABLE
    MANUAL
    CABLE
    MANUAL
  • 32
    14857A16 OIL WARNING MODULE
    ELECTRIC
    OIL WARNING MODULE
    ELECTRIC
  • 33
    10-812987 SCREW-OIL WARNING MODULE
    ELECTRIC
    SCREW-OIL WARNING MODULE
    ELECTRIC
  • 34
    88-19637 SOCKET-FUSE
    ELECTRIC
    SOCKET-FUSE
    ELECTRIC
  • 35
    18758T1 ELECTRICAL BOX
    ELECTRICAL BOX
  • 36
    84-18895A1 TRIM HARNESS
    POWER TRIM
    TRIM HARNESS
    POWER TRIM
  • 37
    87-19761 RELAY SWITCH
    POWER TRIM
    RELAY SWITCH
    POWER TRIM
  • 38
    812850 SUPPORT-RELAY
    POWER TRIM
    SUPPORT-RELAY
    POWER TRIM
  • 39
    87-88890A2 SWITCH ASSEMBLY
    ELECTRIC HANDLE W/ PT
    SWITCH ASSEMBLY
    ELECTRIC HANDLE W/ PT
  • 40
    87-74605A8 SWITCH ASSEMBLY
    ELECTRIC HANDLE W/ PT
    SWITCH ASSEMBLY
    ELECTRIC HANDLE W/ PT
  • 41
    10-90342 SCREW
    ELECTRIC HANDLE W/ PT
    SCREW
    ELECTRIC HANDLE W/ PT
  • 42
    11-24832 NUT
    ELECTRIC HANDLE W/ PT
    NUT
    ELECTRIC HANDLE W/ PT
  • 43
    84-11149A1 CABLE
    ELECTRIC HANDLE W/ PT
    CABLE
    ELECTRIC HANDLE W/ PT
  • 44
    89-818999A2 SOLENOID
    DESIGN II
    SOLENOID
    DESIGN II
  • 45
    23-818968 BUSHING
    DESIGN II
    BUSHING
    DESIGN II
  • 46
    25-818967 GROMMET
    DESIGN II
    GROMMET
    DESIGN II
  • 47
    10-28667 SCREW (1 IN.)
    DESIGN II
    SCREW (1 IN.)
    DESIGN II
  • 48
    84-88439A11 CABLE (BLACK)
    DESIGN II
    CABLE (BLACK)
    DESIGN II
  • 49
    8M0084173 VOLTAGE REGULATOR
    DESIGN II
    VOLTAGE REGULATOR
    DESIGN II
  • 50
    10-822970 SCREW
    DESIGN II
    SCREW
    DESIGN II
  • 51
    84-813524A2 CABLE
    DESIGN II
    CABLE
    DESIGN II
