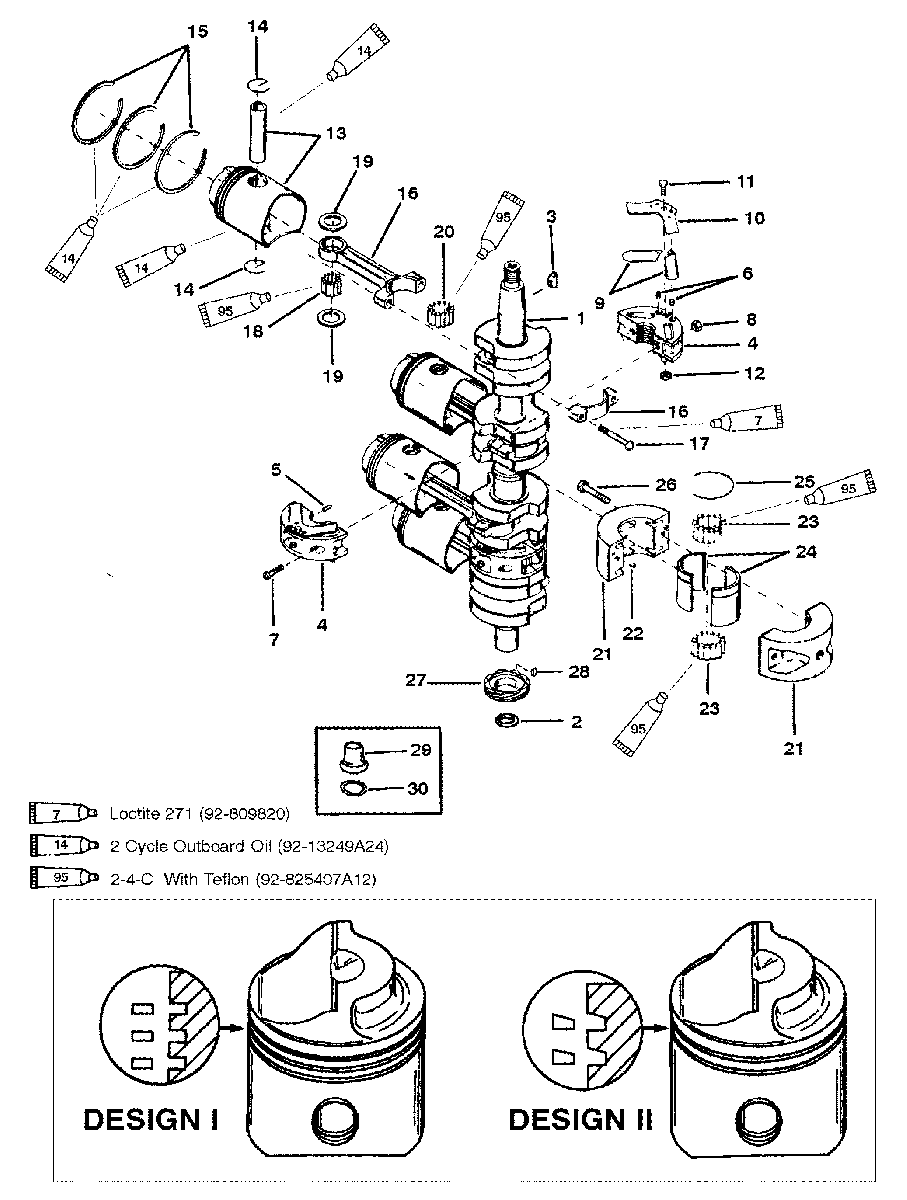

CRANKSHAFT, PISTONS, AND CONNECTING RODS для Mariner - 30 JET 9570790 AND UP
-
№АртикулНазвание
-
1459-9758A2 CRANKSHAFTCRANKSHAFT
-
225-35276 O-RINGO-RING
-
328-20094 KEY-CRANKSHAFTKEY-CRANKSHAFT
-
4534-3267T25 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
517-20032 DOWEL PIN-MAIN BEARINGDOWEL PIN-MAIN BEARING
-
617-65855 DOWEL PIN-REED LOCATINGDOWEL PIN-REED LOCATING
-
710-25764 SCREW-MAIN BEARINGSCREW-MAIN BEARING
-
811-20110 NUT-MAIN BEARING SCREWNUT-MAIN BEARING SCREW
-
934-88498A1 REED SET-MATCHEDREED SET-MATCHED
-
1034-822839 REED STOPREED STOP
-
1110-77280 SCREW-REED STOP (9/16 IN.)SCREW-REED STOP (9/16 IN.)
-
1211-20110 NUT-REED STOP SCREWNUT-REED STOP SCREW
-
13780-9229A7 PISTON/PISTON PIN
(STANDARD) DESIGN IIPISTON/PISTON PIN
(STANDARD) DESIGN II -
13780-9229A10 PISTON/PISTON PIN
(.015 O.S) DESIGN IIPISTON/PISTON PIN
(.015 O.S) DESIGN II -
13780-9229A11 PISTON/PISTON PIN
(.030 O.S.) DESIGN IIPISTON/PISTON PIN
(.030 O.S.) DESIGN II -
13780-9229A7 PISTON/PISTON PIN
(STANDARD) DESIGN IPISTON/PISTON PIN
(STANDARD) DESIGN I -
13780-9229A10 PISTON/PISTON PIN
(.015 O.S.) DESIGN IPISTON/PISTON PIN
(.015 O.S.) DESIGN I -
13780-9229A11 PISTON/PISTON PIN
(.030 O.S.) DESIGN IPISTON/PISTON PIN
(.030 O.S.) DESIGN I -
1440-828119 LOCK RING-PISTON PINLOCK RING-PISTON PIN
-
1539-18653A12 PISTON RING
(STANDARD) DESIGN IIPISTON RING
(STANDARD) DESIGN II -
1539-18653A1 PISTON RING
(.015 O.S.) DESIGN IIPISTON RING
(.015 O.S.) DESIGN II -
1539-18653A2 PISTON RING
(.030 O.S.) DESIGN IIPISTON RING
(.030 O.S.) DESIGN II -
1539-27841A12 PISTON RING
(STANDARD) DESIGN IPISTON RING
(STANDARD) DESIGN I -
1539-28616A12 PISTON RING
(.015 O.S.) DESIGN IPISTON RING
(.015 O.S.) DESIGN I -
1539-89822A12 PISTON RING
(.030 O.S.) DESIGN IPISTON RING
(.030 O.S.) DESIGN I -
16632-7621A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
1710-91012 SCREW-CAP TO RODSCREW-CAP TO ROD
-
1829-20063 NEEDLE BEARING-PISTON PINNEEDLE BEARING-PISTON PIN
-
1912-47275 WASHER-NEEDLE LOCATINGWASHER-NEEDLE LOCATING
-
2029-20046T NEEDLE BEARING-CRANK PINNEEDLE BEARING-CRANK PIN
-
21547-7060A2 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
2217-20032 DOWEL PIN-CENTER MAIN BEARINGDOWEL PIN-CENTER MAIN BEARING
-
2329-714221 NEEDLE BEARINGNEEDLE BEARING
-
2426113T RACE-OUTERRACE-OUTER
-
2553-26933 SNAP RING-OUTER RACESNAP RING-OUTER RACE
-
2610-76630 SCREW-CENTER MAIN BEARING (1 IN.)SCREW-CENTER MAIN BEARING (1 IN.)
-
2743-43019 DRIVER GEARDRIVER GEAR
-
2828-91800 KEY-DRIVER GEARKEY-DRIVER GEAR
-
2960834A3 CARRIER ASSEMBLY
DESIGN I/IICARRIER ASSEMBLY
DESIGN I/II -
3064254001 SEAL
DESIGN I/IISEAL
DESIGN I/II -
-814278T93 POWERHEAD, COMPLETEPOWERHEAD, COMPLETE
