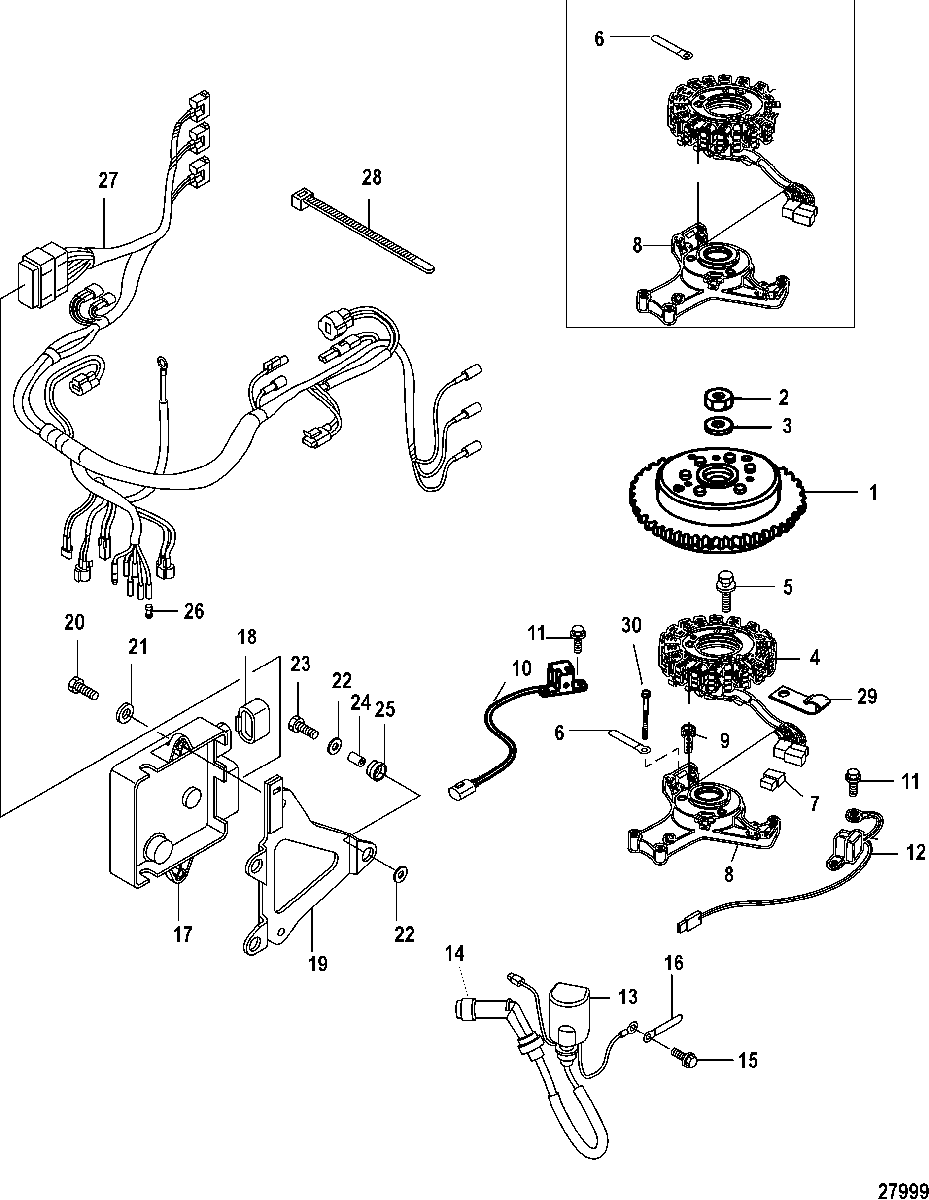

Flywheel, ECU and Wiring Harness для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0R106999 & Up

  • №
    Артикул
    Название
  • 1
    200-898101T64 FLYWHEEL
    FLYWHEEL
  • 2
    11-851832 NUT
    NUT
  • 3
    12-8539911 WASHER
    WASHER
  • 4
    898101T01 ALTERNATOR ASSEMBLY
    ALTERNATOR ASSEMBLY
  • 5
    10-823042 BOLT
    BOLT
  • 6
    54-8M0130961 CLAMP
    CLAMP
  • 7
    19-898101138 PLUG
    PLUG
  • 8
    879147T10 BRACKET, Coil
    Design I - Use Without Reference 30
    BRACKET, Coil
    Design I - Use Without Reference 30
  • 8
    879147T10 BRACKET
    Design II - Use With Reference 30
    BRACKET
    Design II - Use With Reference 30
  • 9
    10-879194264 BOLT
    BOLT
  • 10
    898101146 COIL, Pulser
    COIL, Pulser
  • 11
    10-823042067 SCREW
    SCREW
  • 12
    898101147 COIL, Pulser
    COIL, Pulser
  • 13
    339-898103T COIL, Ignition
    COIL, Ignition
  • 14
    85-898101141 BOOT
    BOOT
  • 15
    10-167051 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 16
    54-8M0130961 CLAMP
    CLAMP
  • 17
    8M0108790 ECU, Engine Control Unit
    30 Horsepower SN# 0R252045 & Below
    ECU, Engine Control Unit
    30 Horsepower SN# 0R252045 & Below
  • 17
    8M0108790 ECU, Engine Control Unit
    30 Horsepower SN# 0R252046 & Up
    ECU, Engine Control Unit
    30 Horsepower SN# 0R252046 & Up
  • 17
    8M0108790 ECU, Engine Control Unit
    30 Horsepower EU SN# 0R252067 & Below
    ECU, Engine Control Unit
    30 Horsepower EU SN# 0R252067 & Below
  • 17
    8M0108790 ECU, Engine Control Unit
    30 Horsepower EU SN# 0R252068 & Up
    ECU, Engine Control Unit
    30 Horsepower EU SN# 0R252068 & Up
  • 17
    8M0108791 ECU, Engine Control Unit
    25 Horsepower SN# 0R252108 & Below
    ECU, Engine Control Unit
    25 Horsepower SN# 0R252108 & Below
  • 17
    8M0108791 ECU, Engine Control Unit
    25 Horsepower SN# 0R252109 & Up
    ECU, Engine Control Unit
    25 Horsepower SN# 0R252109 & Up
  • 17
    8M0108793 ECU, Engine Control Unit
    25 Horsepower EU
    ECU, Engine Control Unit
    25 Horsepower EU
  • 17
    8M0108793 ECU, Engine Control Unit
    25 Horsepower Bodensee SN# 0R241219 & Below
    ECU, Engine Control Unit
    25 Horsepower Bodensee SN# 0R241219 & Below
  • 17
    8M0108793 ECU, Engine Control Unit
    25 Horsepower Bodensee SN# 0R241220 & Up
    ECU, Engine Control Unit
    25 Horsepower Bodensee SN# 0R241220 & Up
  • 18
    19-898101139 PLUG
    PLUG
  • 19
    898101050 BRACKET, ECU
    BRACKET, ECU
  • 20
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 21
    12-953921 WASHER
    WASHER
  • 22
    12-953921 WASHER
    WASHER
  • 23
    10-16705 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 24
    23-952868 COLLAR
    COLLAR
  • 25
    898101158 MOUNT, Rubber
    MOUNT, Rubber
  • 26
    19-853994 PLUG
    PLUG
  • 27
    84-898101T51 HARNESS ASSEMBLY, ECU
    Tiller Handle Models
    HARNESS ASSEMBLY, ECU
    Tiller Handle Models
  • 27
    84-898101T52 HARNESS ASSEMBLY, ECU
    Remote Control Models
    HARNESS ASSEMBLY, ECU
    Remote Control Models
  • 28
    54-816311T TIE STRAP
    TIE STRAP
  • 29
    54-803563005 CLAMP
    CLAMP
  • 30
    10-8230427 BOLT, (M6 x 12)
    BOLT, (M6 x 12)
