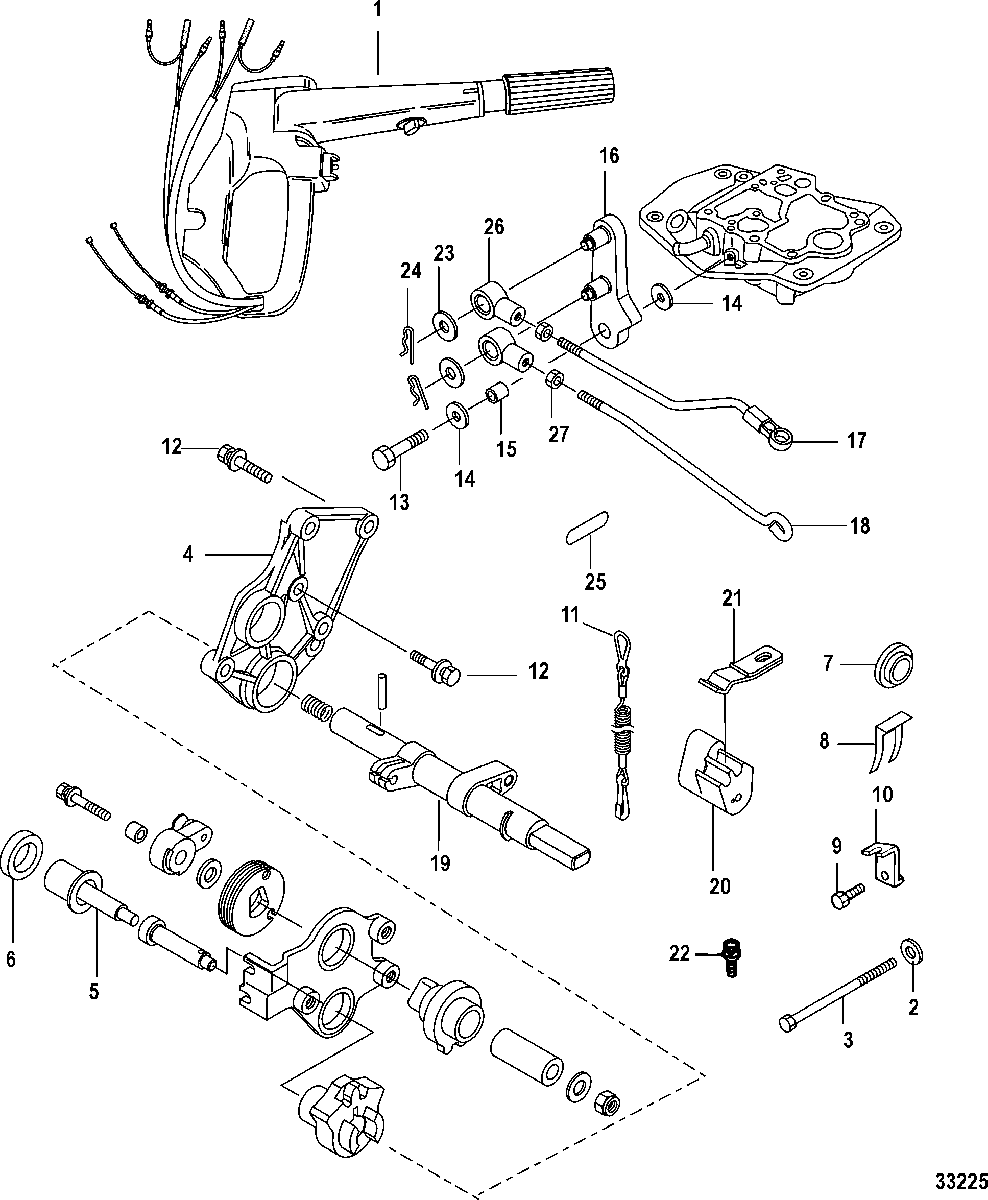

Conversion Kit-Tiller Handle, Manual - 889246A71 для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0R106999 & Up

  • №
    Артикул
    Название
  • -
    8M0051061 CONVERSION KIT, Tiller Handle-Remote Control to Handle Model
    CONVERSION KIT, Tiller Handle-Remote Control to Handle Model
  • 1
    NSS NOT SOLD SEPARATE, Tiller Handle Assembly
    NOT SOLD SEPARATE, Tiller Handle Assembly
  • 2
    12-879194340 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 3
    10-8M0058362 BOLT, Steel
    BOLT, Steel
  • 4
    NSS NOT SOLD SEPARATE, Gear Assembly
    NOT SOLD SEPARATE, Gear Assembly
  • 5
    898101110 KNOB
    KNOB
  • 6
    25-898101166 GROMMET, Rubber
    GROMMET, Rubber
  • 7
    19-898101625 PLUG, Plastic
    PLUG, Plastic
  • 8
    898101149 RETAINER, Stainless Steel
    RETAINER, Stainless Steel
  • 9
    10-879194248 BOLT
    BOLT
  • 10
    898101265 BRACKET, Starter Lock Cable - Stainless Steel
    BRACKET, Starter Lock Cable - Stainless Steel
  • 11
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 12
    10-823042 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 13
    10-16705 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 14
    12-953921 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 15
    23-95286029 COLLAR, (9.5 mm) Stainless Steel
    COLLAR, (9.5 mm) Stainless Steel
  • 16
    898101195 ARM, Throttle
    ARM, Throttle
  • 17
    898101204 ROD, Throttle
    ROD, Throttle
  • 18
    898101205 ROD, Throttle - Stainless Steel
    ROD, Throttle - Stainless Steel
  • 19
    898103T16 SHIFT SHAFT
    SHIFT SHAFT
  • 20
    898101112 LEVER
    LEVER
  • 21
    24-8M0138740 STOPPER, Shift Lever - Stainless Steel
    STOPPER, Shift Lever - Stainless Steel
  • 22
    10-8230427 BOLT
    BOLT
  • 23
    12-898101218 WASHER, Plastic
    WASHER, Plastic
  • 24
    18-898101174 COTTER PIN, Stainless Steel
    COTTER PIN, Stainless Steel
  • 25
    37-859278003 DECAL, Throttle Only
    DECAL, Throttle Only
  • 26
    892775 JOINT, Cable
    JOINT, Cable
  • 27
    11-16081 NUT, Stainless Steel
    NUT, Stainless Steel
