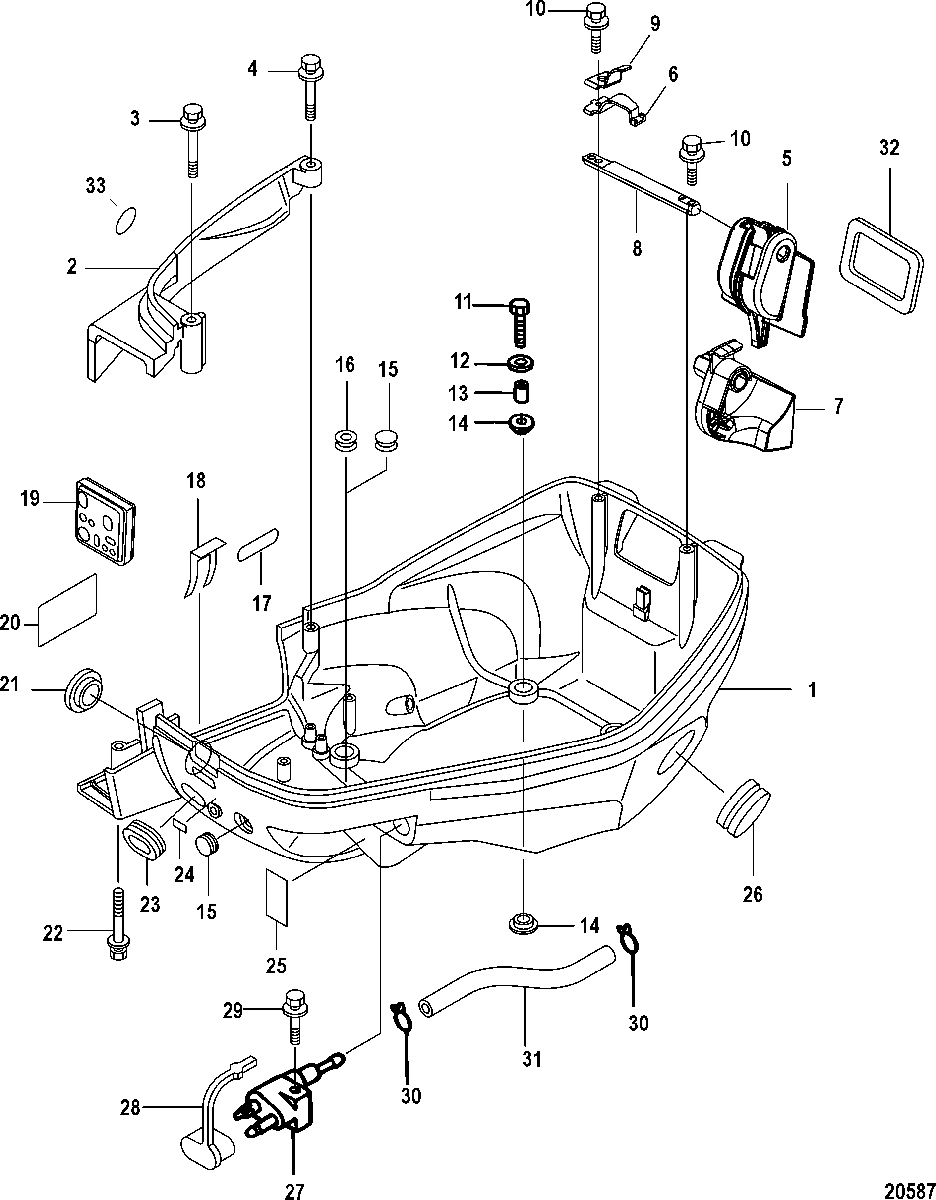

Bottom Cowl для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0R106999 & Up

  • №
    Артикул
    Название
  • 1
    896113T01 PAN, Bottom
    PAN, Bottom
  • 1
    896113T03 PAN, Bottom - Camouflage
    PAN, Bottom - Camouflage
  • 2
    896114001 COVER
    COVER
  • 2
    896114002 COVER, Camouflage
    COVER, Camouflage
  • 2
    896114001 COVER
    Jet 25
    COVER
    Jet 25
  • 3
    10-879194271 SCREW
    SCREW
  • 4
    10-8M0102279 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 5
    896117A01 LATCH ASSEMBLY, Cowl
    Use without Reference #9
    LATCH ASSEMBLY, Cowl
    Use without Reference #9
  • 5
    896117A01 LATCH ASSEMBLY, Cowl
    Use with Reference #9
    LATCH ASSEMBLY, Cowl
    Use with Reference #9
  • 6
    24-898101178 SPRING
    SPRING
  • 7
    898101095 HOOK LEVER
    HOOK LEVER
  • 8
    8M0005993 SHAFT
    SHAFT
  • 9
    24-8M0005561 SPRING
    SPRING
  • 10
    10-167051 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 11
    10-8M0124428 BOLT
    BOLT
  • 12
    12-161404 WASHER
    WASHER
  • 13
    23-8537154 SPACER
    SPACER
  • 14
    23-8537437 MOUNT, Rubber
    MOUNT, Rubber
  • 15
    25-16226 GROMMET, One for Remote Control and One for Power Trim/Tilt
    GROMMET, One for Remote Control and One for Power Trim/Tilt
  • 15
    25-16226 GROMMET, Cam Rod Hole
    Jet 25
    GROMMET, Cam Rod Hole
    Jet 25
  • 16
    25-953871 GROMMET
    Power Trim/Tilt
    GROMMET
    Power Trim/Tilt
  • 16
    25-16226 GROMMET, PPT Cord Hole
    Jet 25
    GROMMET, PPT Cord Hole
    Jet 25
  • 17
    37-859278003 DECAL, Throttle Only
    Handle
    DECAL, Throttle Only
    Handle
  • 18
    898101149 RETAINER, Stainless Steel
    Handle
    RETAINER, Stainless Steel
    Handle
  • 19
    25-896115 GROMMET, Control Cable
    Electric
    GROMMET, Control Cable
    Electric
  • 19
    25-898101034 GROMMET, Control Cable
    Handle
    GROMMET, Control Cable
    Handle
  • 20
    NSS NOT SOLD SEPARATE, Decal-Storage
    NOT SOLD SEPARATE, Decal-Storage
  • 21
    19-898101625 PLUG
    Handle
    PLUG
    Handle
  • 21
    19-898101625 PLUG, Plastic
    Handle/Jet
    PLUG, Plastic
    Handle/Jet
  • 22
    10-879194270 SCREW
    SCREW
  • 23
    25-853709008 GROMMET, Battery Cable
    GROMMET, Battery Cable
  • 24
    37-892904005 DECAL, Oil Pressure
    Handle SN# 0R551808 & Below
    DECAL, Oil Pressure
    Handle SN# 0R551808 & Below
  • 24
    37-896854007 DECAL, Oil Pressure
    SN# 0R551809 & Up
    DECAL, Oil Pressure
    SN# 0R551809 & Up
  • 25
    37-859278004 DECAL, Start
    DECAL, Start
  • 26
    25-898101088 GROMMET
    GROMMET
  • 27
    22-15781A5 CONNECTOR, Fuel - Brass
    CONNECTOR, Fuel - Brass
  • 28
    878311 CAP
    CAP
  • 29
    10-879194264 BOLT
    BOLT
  • 30
    54-95395 CLIP, Stainless Steel
    CLIP, Stainless Steel
  • 31
    32-898101277 HOSE, Rubber
    HOSE, Rubber
  • 32
    27-896629 GASKET
    GASKET
  • 33
    37-8M0012079 DECAL, Shift
    Jet 25
    DECAL, Shift
    Jet 25
  • -
    37-8M0081456 DECAL SET, Mercury, Lower Cowl
    SN# 0R551809 & Up
    DECAL SET, Mercury, Lower Cowl
    SN# 0R551809 & Up
