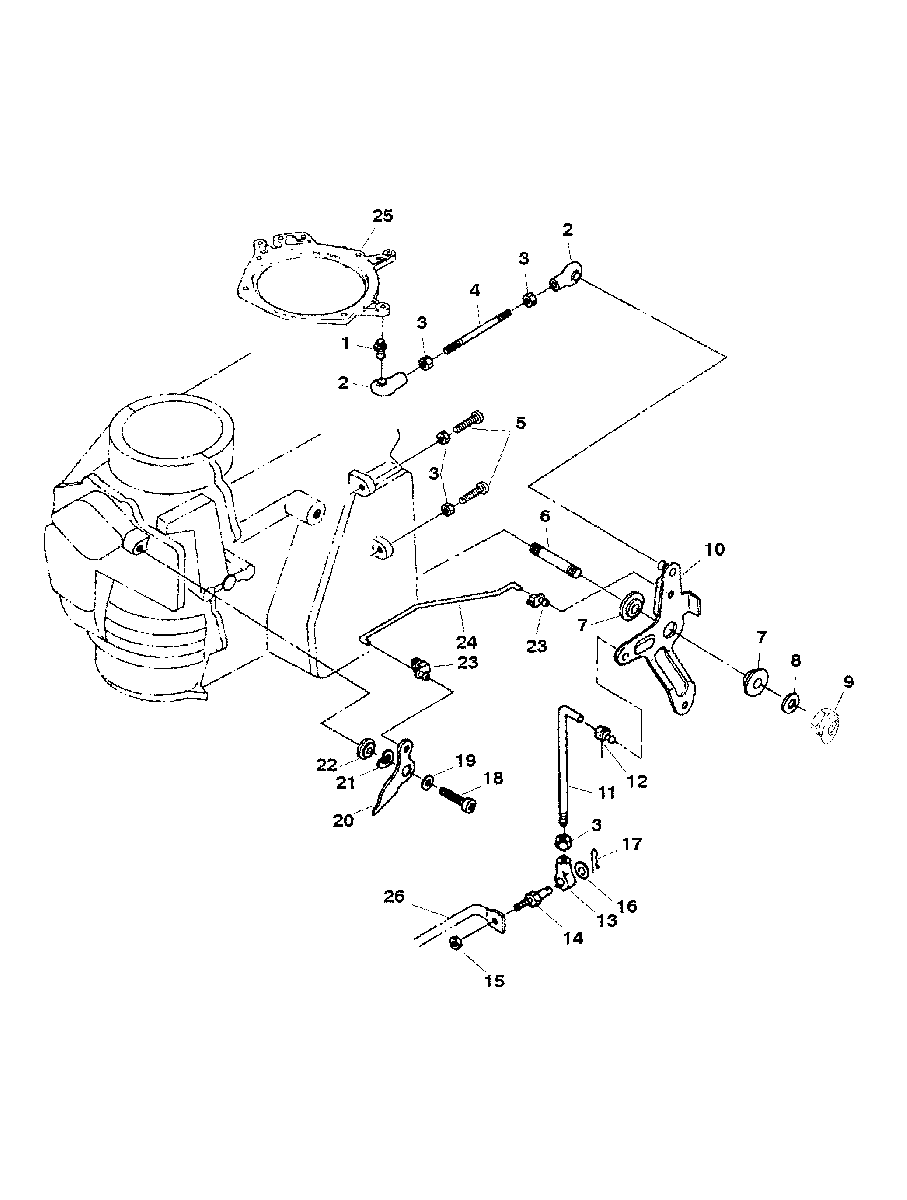

THROTTLE LINKAGE для Mariner - 30 (2 CYL.)(International) 0G575500 AND UP

  • №
    Артикул
    Название
  • 1
    853744001 BALL JOINT
    BALL JOINT
  • 2
    853745 SOCKET
    SOCKET
  • 3
    11-16081 NUT
    NUT
  • 4
    853746004 LINK ROD
    (S/N-0N001324 & UP)
    LINK ROD
    (S/N-0N001324 & UP)
  • 4
    853746 LINK ROD
    (S/N-0N001323 & BELOW)
    LINK ROD
    (S/N-0N001323 & BELOW)
  • 5
    10-16123 SCREW
    SCREW
  • 6
    16-879194297 STUD
    STUD
  • 7
    23-853743 BUSHING
    BUSHING
  • 8
    12-8M0135942 WASHER
    WASHER
  • 9
    11-815088 NUT
    NUT
  • 10
    8M0103002 ACTUATOR ARM
    S/N-0N001324 & UP
    ACTUATOR ARM
    S/N-0N001324 & UP
  • 11
    853747009 LINK ROD
    S/N-0N001324 & UP
    LINK ROD
    S/N-0N001324 & UP
  • 10
    853742 ACTUATOR ARM
    S/N-0N001323 & BELOW
    ACTUATOR ARM
    S/N-0N001323 & BELOW
  • 11
    853747009 LINK ROD
    S/N-0N001323 & BELOW
    LINK ROD
    S/N-0N001323 & BELOW
  • 12
    853748 ROD SNAP
    ROD SNAP
  • 13
    8537451 ROD JOINT
    ROD JOINT
  • 14
    853749001 PIN
    PIN
  • 15
    11-400212 NUT
    NUT
  • 16
    12-953925 WASHER
    WASHER
  • 17
    18-8150262 COTTER PIN
    COTTER PIN
  • 18
    10-162452 SCREW
    SCREW
  • 19
    12-953921 WASHER
    WASHER
  • 20
    8537503 THROTTLE CAM
    (S/N-0N001324 & UP)
    THROTTLE CAM
    (S/N-0N001324 & UP)
  • 20
    853750 THROTTLE CAM
    (S/N-0N001323 & BELOW)
    THROTTLE CAM
    (S/N-0N001323 & BELOW)
  • 21
    13-8537232 WAVE WASHER
    WAVE WASHER
  • 22
    23-8537431 BUSHING
    BUSHING
  • 23
    176431 ROD SNAP
    ROD SNAP
  • 24
    853747010 THROTTLE LINK ROD
    THROTTLE LINK ROD
  • 25
    853710 SET RING
    SHOWN AS REF. #14 ON "CYLINDER BLOCK"
    SET RING
    SHOWN AS REF. #14 ON "CYLINDER BLOCK"
  • 26
    160932 THROTTLE SHAFT
    SHOWN AS REF. #16 ON "TILLER HANDLE"
    THROTTLE SHAFT
    SHOWN AS REF. #16 ON "TILLER HANDLE"
