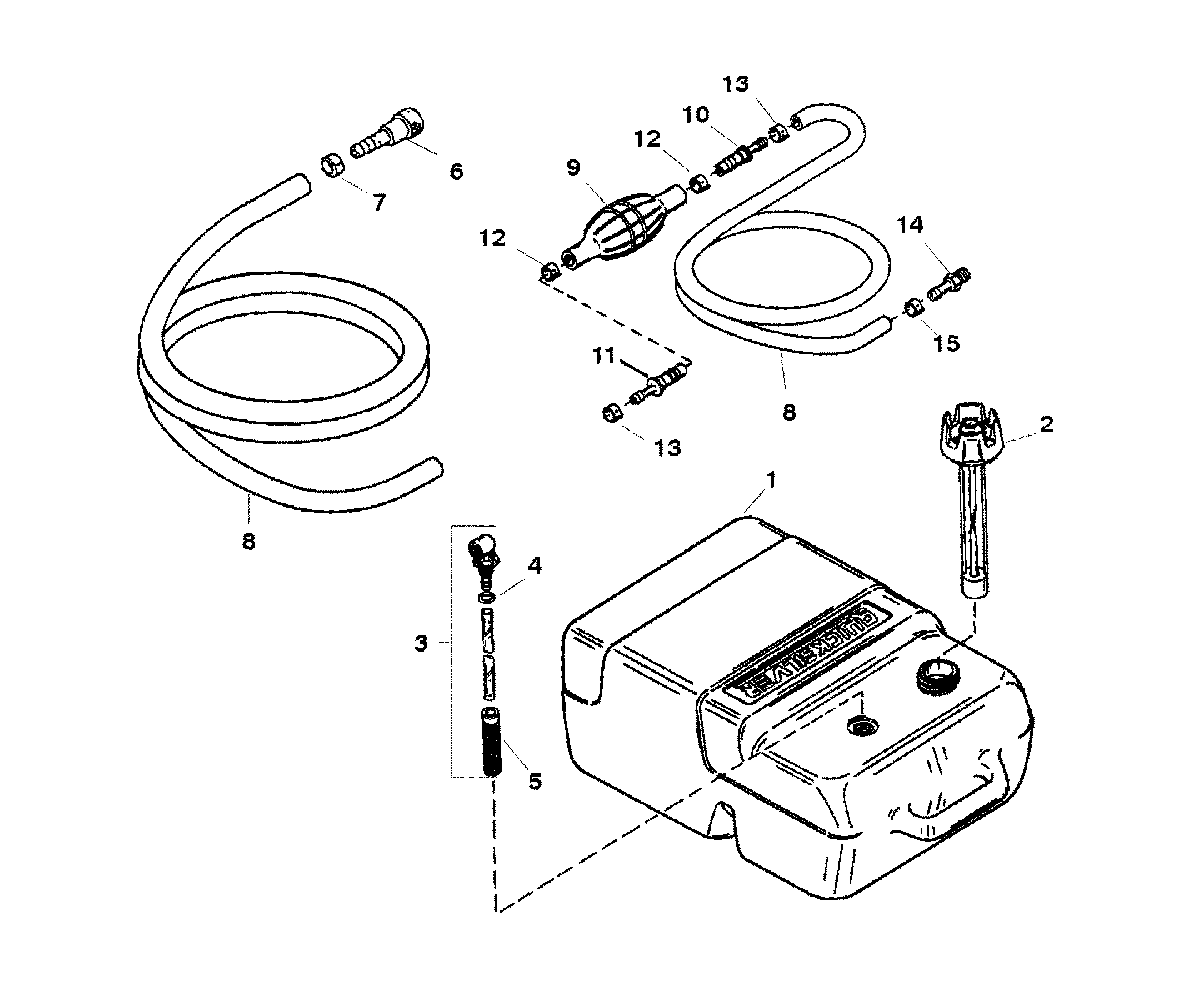

FUEL TANK (PLASTIC - 6.6 GALLON) для Mariner - 30 (2 CYL.)(International) 0G575500 AND UP
-
№АртикулНазвание
-
11259-859063A1 TANK ASSEMBLY-FUEL (PLASTIC-6.6 GALLON)TANK ASSEMBLY-FUEL (PLASTIC-6.6 GALLON)
-
2823536 GAUGE AND CAP ASSEMBLYGAUGE AND CAP ASSEMBLY
-
322-823532A1 CONNECTOR ASSEMBLY-FUELCONNECTOR ASSEMBLY-FUEL
-
425-823533 O RINGO RING
-
535-823534 SCREEN-FUEL PICK UPSCREEN-FUEL PICK UP
-
622-8M0120628 FUEL CONNECTOR-ENGINE ENDFUEL CONNECTOR-ENGINE END
-
754-853798 CLAMPCLAMP
-
832-8M0044638 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
913330Q07 PRIMER BULB ASSEMBLYPRIMER BULB ASSEMBLY
-
1021-13331A3 CHECK VALVE (INLET)CHECK VALVE (INLET)
-
1121-13331A4 CHECK VALVE (OUTLET)CHECK VALVE (OUTLET)
-
1254-4158210 CLAMP (LARGE)CLAMP (LARGE)
-
1354-41582Q7 CLAMP (SMALL)CLAMP (SMALL)
-
1422-89771Q2 CONNECTOR-FUEL TANKCONNECTOR-FUEL TANK
-
1554-41582Q7 CLAMPCLAMP
