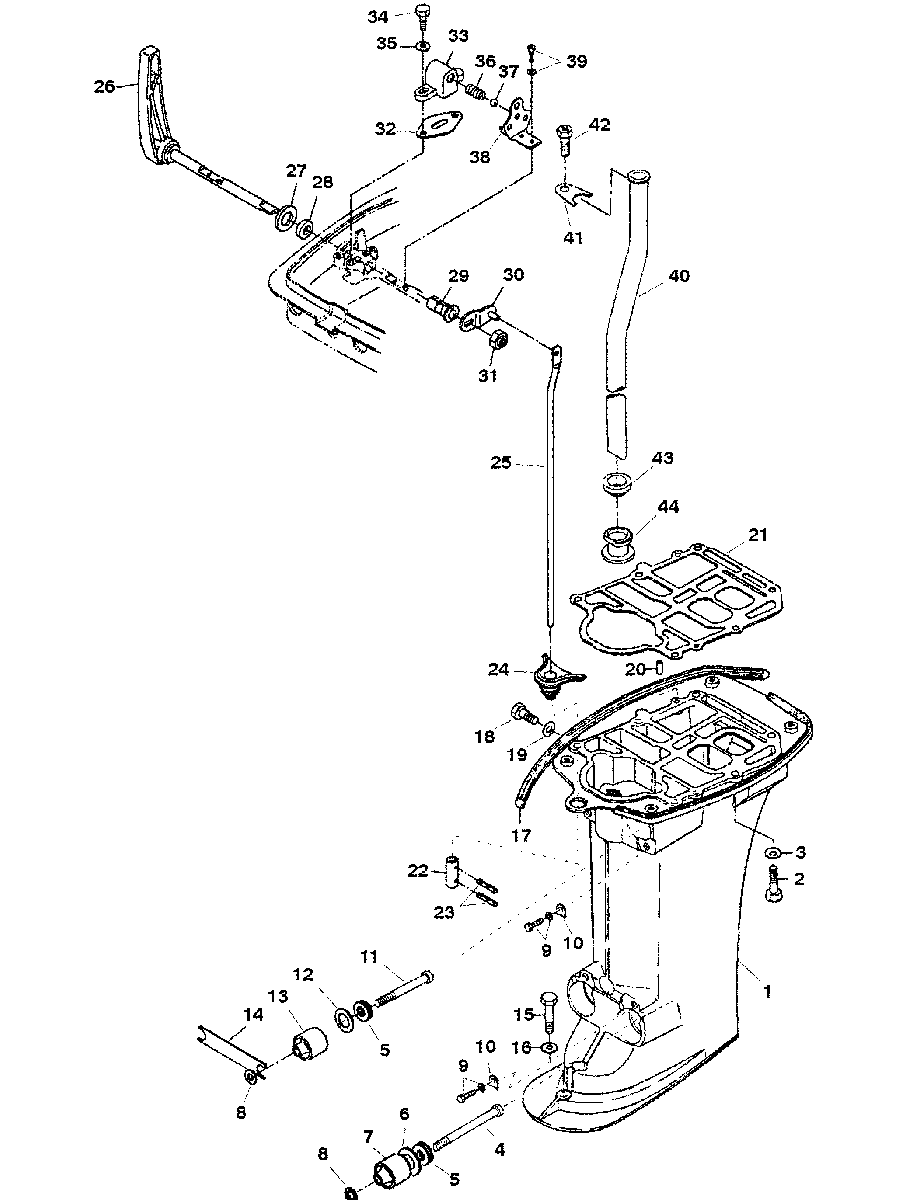

DRIVE SHAFT HOUSING для Mariner - 30 (2 CYL.)(International) 0G575500 AND UP

№

Артикул

Название
1

1500-8M0065998 DRIVE SHAFT HOUSING
(SHORT-BLACK)

DRIVE SHAFT HOUSING
(SHORT-BLACK)
1

1599-8129422 DRIVE SHAFT HOUSING )
(SHORT-GRAY

DRIVE SHAFT HOUSING )
(SHORT-GRAY
1

1500-8M0065999 DRIVE SHAFT HOUSING
(LONG-BLACK)

DRIVE SHAFT HOUSING
(LONG-BLACK)
1

1500-8M0065999 DRIVE SHAFT HOUSING
(LONG-GRAY)

DRIVE SHAFT HOUSING
(LONG-GRAY)
2

10-8230423 BOLT

BOLT
3

12-8M0135942 WASHER

WASHER
4

10-8129354 BOLT

BOLT
5

12-161405 WASHER

WASHER
6

12-161407 WASHER

WASHER
7

8M0074132 LOWER MOUNT

LOWER MOUNT
8

12-168261 WASHER

WASHER
9

10-8230426 BOLT

BOLT
10

853772005 RETAINER

RETAINER
11

10-812935008 BOLT

BOLT
12

12-161406 WASHER

WASHER
13

8M0074133 UPPER MOUNT

UPPER MOUNT
14

853773 BUMPER

BUMPER
15

10-879194307 BOLT

BOLT
15

10-879194308 BOLT
(FOR 125 MM SPACER ONLY)

BOLT
(FOR 125 MM SPACER ONLY)
16

12-8M0135942 WASHER

WASHER
17

853986 SEAL

SEAL
18

19-879194296 WATER PLUG

WATER PLUG
19

8M0082880 GASKET

GASKET
20

17-16119 DOWEL PIN

DOWEL PIN
21

27-853987001 GASKET

GASKET
22

853768 SHIFT ROD JOINT
INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT

SHIFT ROD JOINT
INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
23

17-952189 DOWEL PIN
INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT

DOWEL PIN
INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
24

25-8537094 GROMMET

GROMMET
25

161862 SHIFT ROD

SHIFT ROD
26

813027008 SHIFT LEVER
(BLACK)

SHIFT LEVER
(BLACK)
26

8130274 SHIFT LEVER
(GRAY)

SHIFT LEVER
(GRAY)
27

23-8537153 SPACER

SPACER
28

26-8537075 OIL SEAL

OIL SEAL
29

23-8537434 BUSHING

BUSHING
30

161842 SHIFT ROD LEVER

SHIFT ROD LEVER
31

11-85372212 NUT

NUT
32

15-853795 SHIM

SHIM
33

853767 BRACKET

BRACKET
34

10-16832 BOLT

BOLT
35

12-16826 WASHER

WASHER
36

24-8130281 SPRING

SPRING
37

30-812937 BALL

BALL
38

853766 PLATE

PLATE
39

10-898101354 SCREW

SCREW
40

32-161691 WATER TUBE
(SHORT)

WATER TUBE
(SHORT)
40

32-161701 WATER TUBE
(LONG)

WATER TUBE
(LONG)
40

32-161702 WATER TUBE
(X-LONG)

WATER TUBE
(X-LONG)
40

32-161703 WATER TUBE
(XX-LONG)

WATER TUBE
(XX-LONG)
41

8107531 LOCK PLATE

LOCK PLATE
42

10-953961 BOLT

BOLT
43

26-161711 SEAL

SEAL
44

26-8537074 SEAL

SEAL
-

27-8M0089639 LOWER UNIT GASKET SET

LOWER UNIT GASKET SET
-

27-8M0119225 POWERHEAD GASKET SET

POWERHEAD GASKET SET
-

8M0119221 POWERHEAD
(S/N-0N001324 & UP)

POWERHEAD
(S/N-0N001324 & UP)
-

8M0119221 POWERHEAD
(S/N-0N001323 & BELOW)

POWERHEAD
(S/N-0N001323 & BELOW)
