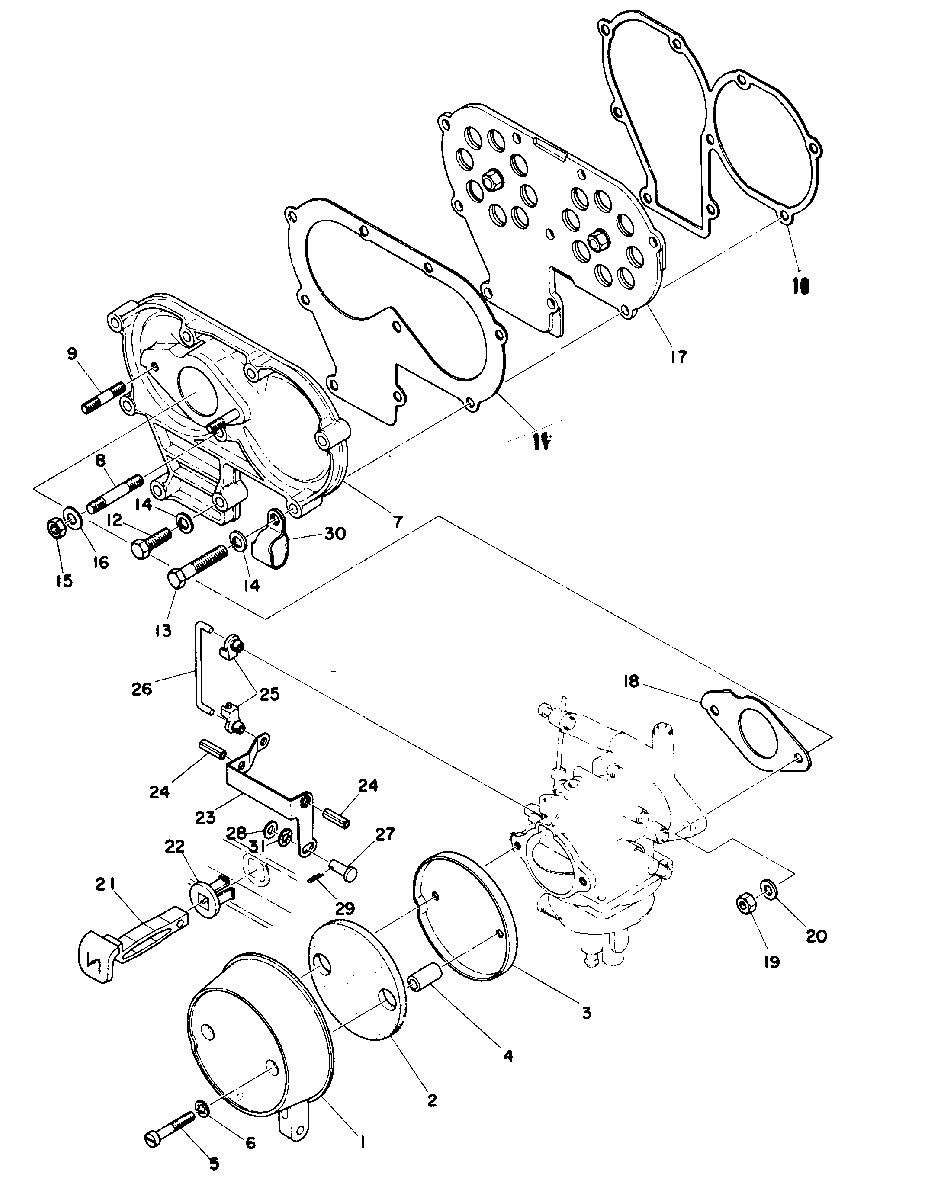

INTAKE MANIFOLD для Mariner - 28 664-38145 AND BELOW

  • №
    Артикул
    Название
  • 1
    81562M COVER, AIR INTAKE
    COVER, AIR INTAKE
  • 2
    35-80594M AIR FILTER
    SERIAL 00000000-00004605
    AIR FILTER
    SERIAL 00000000-00004605
  • 3
    80595M BASE, AIR FILTER .
    SERIAL 00000000-00004605
    BASE, AIR FILTER .
    SERIAL 00000000-00004605
  • 4
    23-81972M SPACER, INTAKE COVER TO BASE
    SPACER, INTAKE COVER TO BASE
  • 5
    10-82493M SCREW, COVER ATTACHING
    SCREW, COVER ATTACHING
  • 6
    12-82195M WASHER, COVER BOLT
    WASHER, COVER BOLT
  • 7
    80570002 MANIFOLD, INTAKE
    MANIFOLD, INTAKE
  • 8
    16-81733M STUD, MANIFOLD ATTACHING
    STUD, MANIFOLD ATTACHING
  • 9
    16-811028M STUD, CARBURETOR ATTACHING
    STUD, CARBURETOR ATTACHING
  • 10
    27-80569M GASKET, INTAKE MANIFOLD
    GASKET, INTAKE MANIFOLD
  • 11
    27-80571M GSKET, REED VALVE
    GSKET, REED VALVE
  • 12
    10-82405M BOLT, MANIFOLD ATTACHING
    BOLT, MANIFOLD ATTACHING
  • 13
    10-83285M BOLT, MANIFOLD ATTACHING
    BOLT, MANIFOLD ATTACHING
  • 14
    13-82212M LOCK WASHER, MANIFOLD BOLT
    LOCK WASHER, MANIFOLD BOLT
  • 15
    11-82389M NUT, MANIFOLD ATTACHING
    NUT, MANIFOLD ATTACHING
  • 16
    12-82213M WASHER, MANIFOLD ATTACHING STUD
    WASHER, MANIFOLD ATTACHING STUD
  • 17
    811027M REED VALVE
    REED VALVE
  • 18
    27-80572 GASKET, CARBURETOR MANIFOLD
    GASKET, CARBURETOR MANIFOLD
  • 19
    11-82389M NUT, CARBURETOR ATTACHING
    NUT, CARBURETOR ATTACHING
  • 20
    12-82214M WASHER, CARBURETOR ATTACHING STUD
    WASHER, CARBURETOR ATTACHING STUD
  • 21
    81578M KNOB, CHOKE
    KNOB, CHOKE
  • 22
    82063M GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 23
    81576M LIVER, CHOKE
    LIVER, CHOKE
  • 24
    17-82155M PIN, ROLL-CHOKE LEVER
    PIN, ROLL-CHOKE LEVER
  • 25
    16333 SWIVEL, LINK ROD
    SWIVEL, LINK ROD
  • 26
    81577M LINK ROD, CHOKE LEVER
    LINK ROD, CHOKE LEVER
  • 27
    17-81880M PIN, CLEVIS-CHOKE LEVER
    PIN, CLEVIS-CHOKE LEVER
  • 28
    12-81790M WASHER, CLEVIS PIN
    WASHER, CLEVIS PIN
  • 29
    18-82051M PIN, CLEVIS
    PIN, CLEVIS
  • 30
    54-96348M CLAMP, WIRE HARNESS
    CLAMP, WIRE HARNESS
  • 31
    13-81865M WASHER, WAVE-CLEVIS PIN
    WASHER, WAVE-CLEVIS PIN
