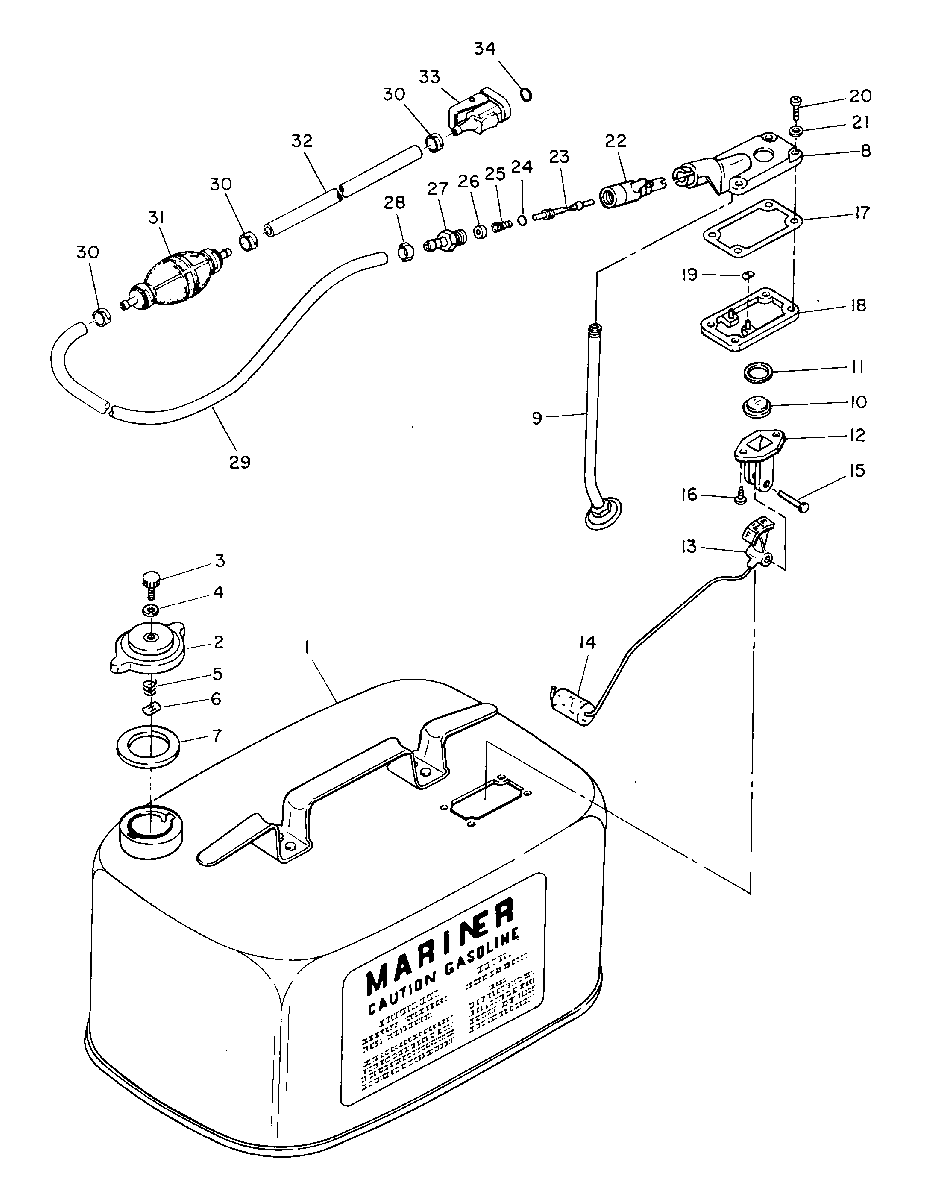

FUEL TANK (U.S.A.) для Mariner - 28 664-38145 AND BELOW
-
№АртикулНазвание
-
0-11259-812410A1 FUEL TANK COMPLETEFUEL TANK COMPLETE
-
11259-812410A1 FUEL TANK, (6 GALLON)FUEL TANK, (6 GALLON)
-
236-18962M FILLER CAP ASSEMBLYFILLER CAP ASSEMBLY
-
310-25575 SCREW, VENT - FILLER CAPSCREW, VENT - FILLER CAP
-
412-49221 WASHER, VENT SCREWWASHER, VENT SCREW
-
524-22227 SPRING, TENION - VENT SCREWSPRING, TENION - VENT SCREW
-
611-28587 NUT, SPEED - SPRING RETAINERNUT, SPEED - SPRING RETAINER
-
727-41065 GASKET, FILLER CAP TO FUEL TANKGASKET, FILLER CAP TO FUEL TANK
-
817792A1 COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)
-
932-75239 TUBE ASS'Y, (1/4-18 CONNECTOR - 1/2" TUBE) (#32-75239)TUBE ASS'Y, (1/4-18 CONNECTOR - 1/2" TUBE) (#32-75239)
-
1098542A1 LENS ASSEMBLY, FUEL GAUGELENS ASSEMBLY, FUEL GAUGE
-
1198542A1 GASKET, FUEL GAUGE LENSGASKET, FUEL GAUGE LENS
-
1220430 RETAINER, FUEL GAUGERETAINER, FUEL GAUGE
-
1328897A1 INDICATOR AND FLOAT ASSEMBLYINDICATOR AND FLOAT ASSEMBLY
-
1499274 FLOAT, FUEL GAUGEFLOAT, FUEL GAUGE
-
1517-20426 RIVET, INDICATOR TO RETAINERRIVET, INDICATOR TO RETAINER
-
1610-62568 SCREW, RETAINER TO FUEL TANK COVER (5/16")SCREW, RETAINER TO FUEL TANK COVER (5/16")
-
1727-28862 GASKET, COVER ASSEMBLY TO FRAMEGASKET, COVER ASSEMBLY TO FRAME
-
1828860 FRAME, RETAINING - FUEL TANK COVERFRAME, RETAINING - FUEL TANK COVER
-
1911-28903 FASTENER, RETAINING FRAME TO FUEL TANKFASTENER, RETAINING FRAME TO FUEL TANK
-
2010-20411 SCREW, FUEL TANK COVER TO FUEL TANKSCREW, FUEL TANK COVER TO FUEL TANK
-
2112-29070 WASHER, FUEL TANK COVER FASTENING SCREWWASHER, FUEL TANK COVER FASTENING SCREW
-
2230185Q3 BODY,BAYONET ASS'YBODY,BAYONET ASS'Y
-
2330185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
2425-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
2524-30189 SPRING, BAYONET BODY STEMSPRING, BAYONET BODY STEM
-
2630188 WASHER, CAP BAYONET BODY SPRINGWASHER, CAP BAYONET BODY SPRING
-
2722-63187 FITTING, FUEL LINE (TANK END)FITTING, FUEL LINE (TANK END)
-
2854-55206 CLAMP, HOSE TO BAYONET BODY ASS'YCLAMP, HOSE TO BAYONET BODY ASS'Y
-
2932-94727M HOSE, FUEL TANK TO PRIMER BULBHOSE, FUEL TANK TO PRIMER BULB
-
3054-16725M CLAMP, HOSECLAMP, HOSE
-
3189396Q01 PRIMER BULB, FUEL LINEPRIMER BULB, FUEL LINE
-
3232-94727M HOSE, PRIMER BULB TO FUEL CONNECTORHOSE, PRIMER BULB TO FUEL CONNECTOR
-
3322-14213Q HOUSING ASS'Y, FUEL CONNECTORHOUSING ASS'Y, FUEL CONNECTOR
-
3425-82789M O-RINGO-RING
