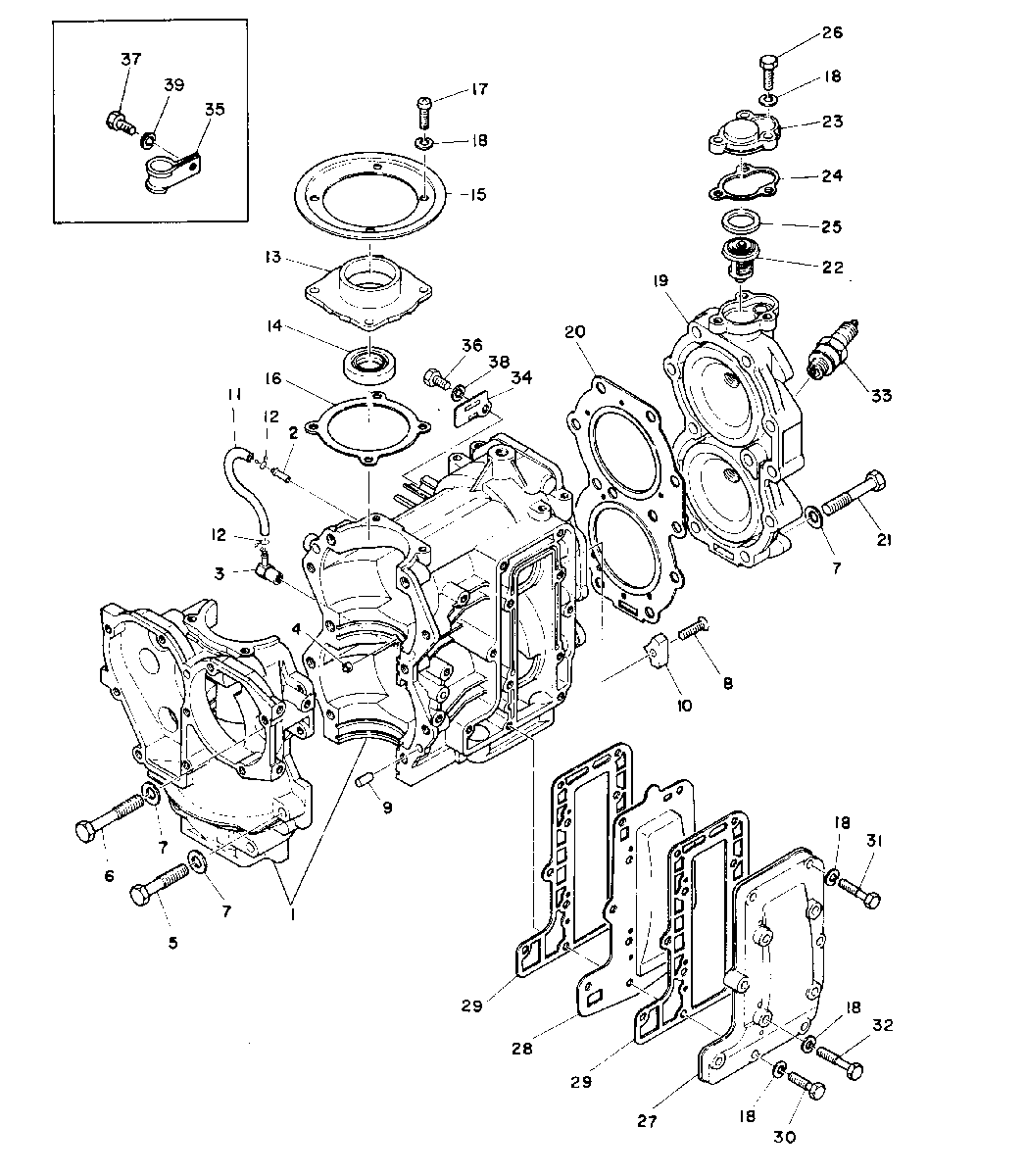

CRANKCASE AND CYLINDER HEAD для Mariner - 28 664-38145 AND BELOW
-
№АртикулНазвание
-
1870-6851M CRANKKCASE ASS'YCRANKKCASE ASS'Y
-
222-80122M FITTING, CRANKCASE DRAINFITTING, CRANKCASE DRAIN
-
321-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
421-80107M CHECK VALVE, CRANKCASECHECK VALVE, CRANKCASE
-
510-82406M BOLT, CRANKCASE ATTACHINGBOLT, CRANKCASE ATTACHING
-
610-82408M BOLT,CRANKCASE ATTACHINGBOLT,CRANKCASE ATTACHING
-
712-80564M WASHERWASHER
-
810-95209M SCREW, ANODE ATTACHINGSCREW, ANODE ATTACHING
-
917-82364M PIN, DOWEL-CRANKCASEPIN, DOWEL-CRANKCASE
-
1097-84732M ANODEANODE
-
1132-811045M HOSE, CYLINDER DRAINHOSE, CYLINDER DRAIN
-
1254-82046M CLAMP, DRAIN HOSECLAMP, DRAIN HOSE
-
1381564M HOUSING, OIL SEALHOUSING, OIL SEAL
-
1426-82245M OIL SEAL, CRANKSHAFT UPPPERaOIL SEAL, CRANKSHAFT UPPPERa
-
1583199M RETAINER, MAGNETO BASE
SERIAL 00000000-00004605RETAINER, MAGNETO BASE
SERIAL 00000000-00004605 -
1583199M RETAINER, MAGNETO BASE .
SERIAL 00004606-09999999RETAINER, MAGNETO BASE .
SERIAL 00004606-09999999 -
1627-81565M GASKET, OIL SEAL HOUSINGGASKET, OIL SEAL HOUSING
-
1710-11828M SCREW, MAGNETO BASSE ATTACHINGSCREW, MAGNETO BASSE ATTACHING
-
1813-82212M LOCK WASHERLOCK WASHER
-
19968-8400M HEAD, CYLINDERHEAD, CYLINDER
-
2027-81555 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2110-82407M BOLT, CYLINDER HEAD ATTACHINGBOLT, CYLINDER HEAD ATTACHING
-
2299080M THERMOSTATTHERMOSTAT
-
2382658M COVER, THERMOSTAT .
SERIAL 00000000-00001725COVER, THERMOSTAT .
SERIAL 00000000-00001725 -
2381030M COVER, THERMOSTAT .
SERIAL 00001726-09999999COVER, THERMOSTAT .
SERIAL 00001726-09999999 -
2427-81031 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
2523-82622M SPACER, THERMOSTAT .
SERIAL 00000000-00001725SPACER, THERMOSTAT .
SERIAL 00000000-00001725 -
2512-81835M WASHER
SERIAL 00001726-09999999WASHER
SERIAL 00001726-09999999 -
2610-84058M BOLT, THERMOSTAT COVER ATTACHINGBOLT, THERMOSTAT COVER ATTACHING
-
2781569M COVER EXHAUST-OUTERCOVER EXHAUST-OUTER
-
2881568M COVER, EXHAUST-INNERCOVER, EXHAUST-INNER
-
2927-81570 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
301484-9797M BOLT8 EXHAUST COVER ATTACHINGBOLT8 EXHAUST COVER ATTACHING
-
3110-83285M BOLT, EXHAUST COVER ATTACHINGBOLT, EXHAUST COVER ATTACHING
-
3210-83285M BOLT, EXHUAST COVER ATTACHINGBOLT, EXHUAST COVER ATTACHING
-
3333-8M0114739 SPARK PLUGM B-7HS (NGK)SPARK PLUGM B-7HS (NGK)
-
3481659M CLAMP, WIRE .
SERIAL 00000000-00002010CLAMP, WIRE .
SERIAL 00000000-00002010 -
3554-82033M CLAMP .
SERIAL 00000000-00004605CLAMP .
SERIAL 00000000-00004605 -
3554-96348M CLAMP
SERIAL 00004606-09999999CLAMP
SERIAL 00004606-09999999 -
3610-91772M BOLT, CLAMP ATTACHING
SERIAL 00000000-00025300BOLT, CLAMP ATTACHING
SERIAL 00000000-00025300 -
3710-91772M BOLT .
SERIAL 00002011-09999999BOLT .
SERIAL 00002011-09999999 -
3813-82212M WASHER .
SERIAL 00000000-00002010WASHER .
SERIAL 00000000-00002010 -
3913-82212M WASHER
SERIAL 00002011-09999999WASHER
SERIAL 00002011-09999999
