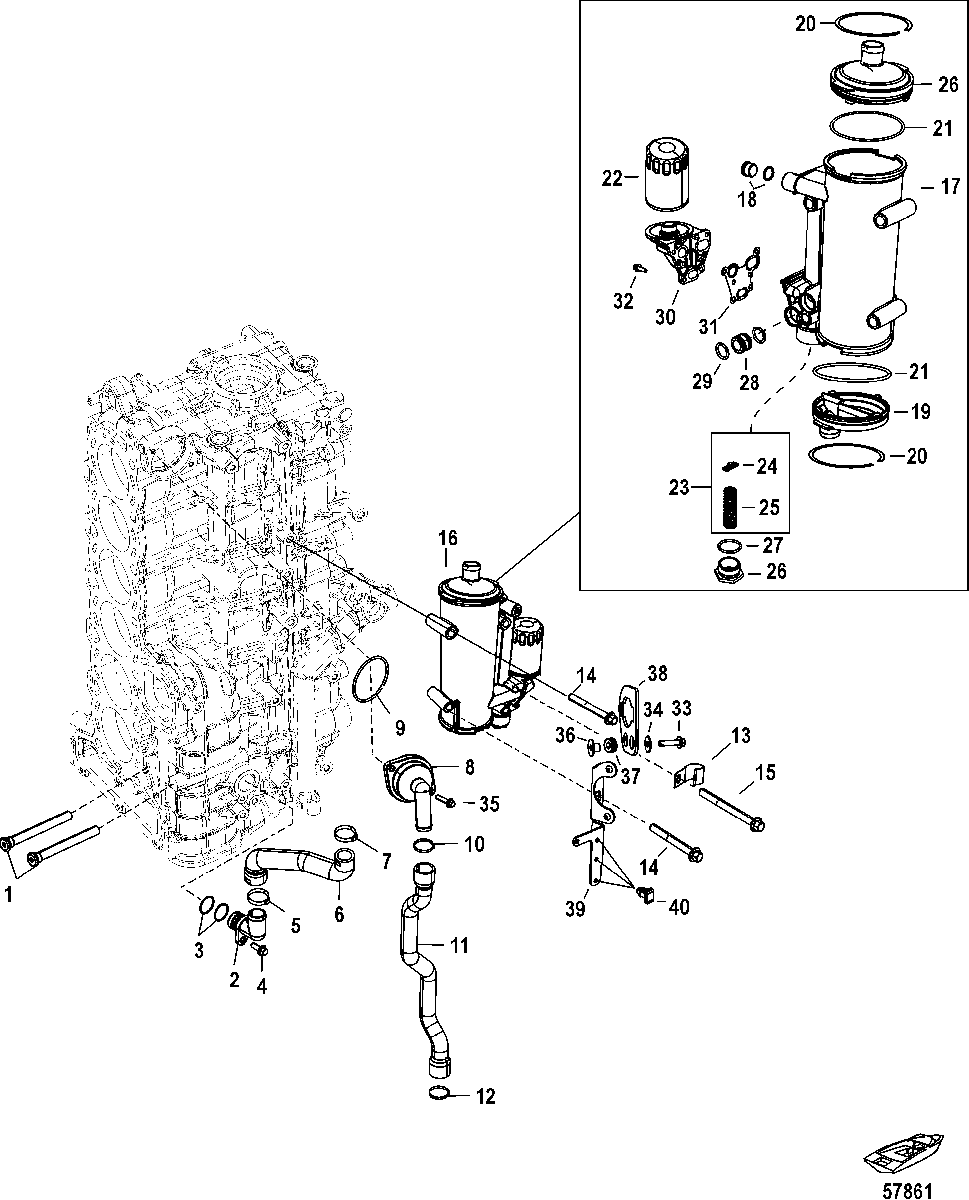

Starboard Cylinder Block/Oil Cooler для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up

  • №
    Артикул
    Название
  • 1
    892404A05 DEFLECTOR ASSEMBLY, Water
    DEFLECTOR ASSEMBLY, Water
  • 2
    22-885518A02 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 3
    25-62701 O-RING
    O-RING
  • 4
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • 5
    54-888988011 CLAMP, (38.1 mm)
    CLAMP, (38.1 mm)
  • 6
    32-888930003 HOSE
    HOSE
  • 7
    54-888988008 CLAMP, (34.6 mm)
    CLAMP, (34.6 mm)
  • 8
    892864T04 THERMOSTAT ASSEMBLY
    THERMOSTAT ASSEMBLY
  • 9
    25-8M0005958 O-RING
    O-RING
  • 10
    54-888988001 CLAMP, (36.1 mm)
    CLAMP, (36.1 mm)
  • 11
    32-892865 HOSE, Thermostat
    HOSE, Thermostat
  • 12
    54-888988007 CLAMP, (42.5 mm)
    CLAMP, (42.5 mm)
  • 13
    54-78945 J CLAMP
    J CLAMP
  • 14
    10-8M0103824 SCREW, (M10 x 85)
    SCREW, (M10 x 85)
  • 15
    10-8M0103820 SCREW, (M10 x 105)
    SCREW, (M10 x 105)
  • 16
    8M0132390 MODULE, Integrated Oil
    MODULE, Integrated Oil
  • 17
    NSS NOT SOLD SEPARATE, Oil Cooler Housing
    NOT SOLD SEPARATE, Oil Cooler Housing
  • 18
    19-891953 PLUG, (18 mm)
    PLUG, (18 mm)
  • 19
    8M0046698 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 20
    53-8M0039464 RING, Retaining
    RING, Retaining
  • 21
    25-8M0039516 O-RING
    O-RING
  • 22
    35-877769K01 FILTER, Oil (Mercury Branded)
    FILTER, Oil (Mercury Branded)
  • 23
    8M0046693 THERMOSTAT ASSEMBLY
    THERMOSTAT ASSEMBLY
  • 24
    NSS NOT SOLD SEPARATE, Thermostat Stop
    NOT SOLD SEPARATE, Thermostat Stop
  • 25
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 26
    19-8M0046697 PLUG
    PLUG
  • 27
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 28
    8M0046696 ADAPTOR ASSEMBLY (Contains 2 Adaptors)
    ADAPTOR ASSEMBLY (Contains 2 Adaptors)
  • 29
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 30
    8M0046694 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 31
    27-8M0034568 GASKET
    GASKET
  • 32
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • 33
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 34
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 35
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 36
    23-822003 BUSHING
    BUSHING
  • 37
    25-834985 GROMMET
    GROMMET
  • 38
    8M0011480 PLATE, Mounting, 14 Pin
    PLATE, Mounting, 14 Pin
  • 39
    8M8021186 BRACKET, Mounting, 14 Pin
    BRACKET, Mounting, 14 Pin
  • 40
    54-879962 CLIP
    CLIP
  • -
    27-880552A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    61-896966A07 ASSEMBLY, Long Block
    ASSEMBLY, Long Block
