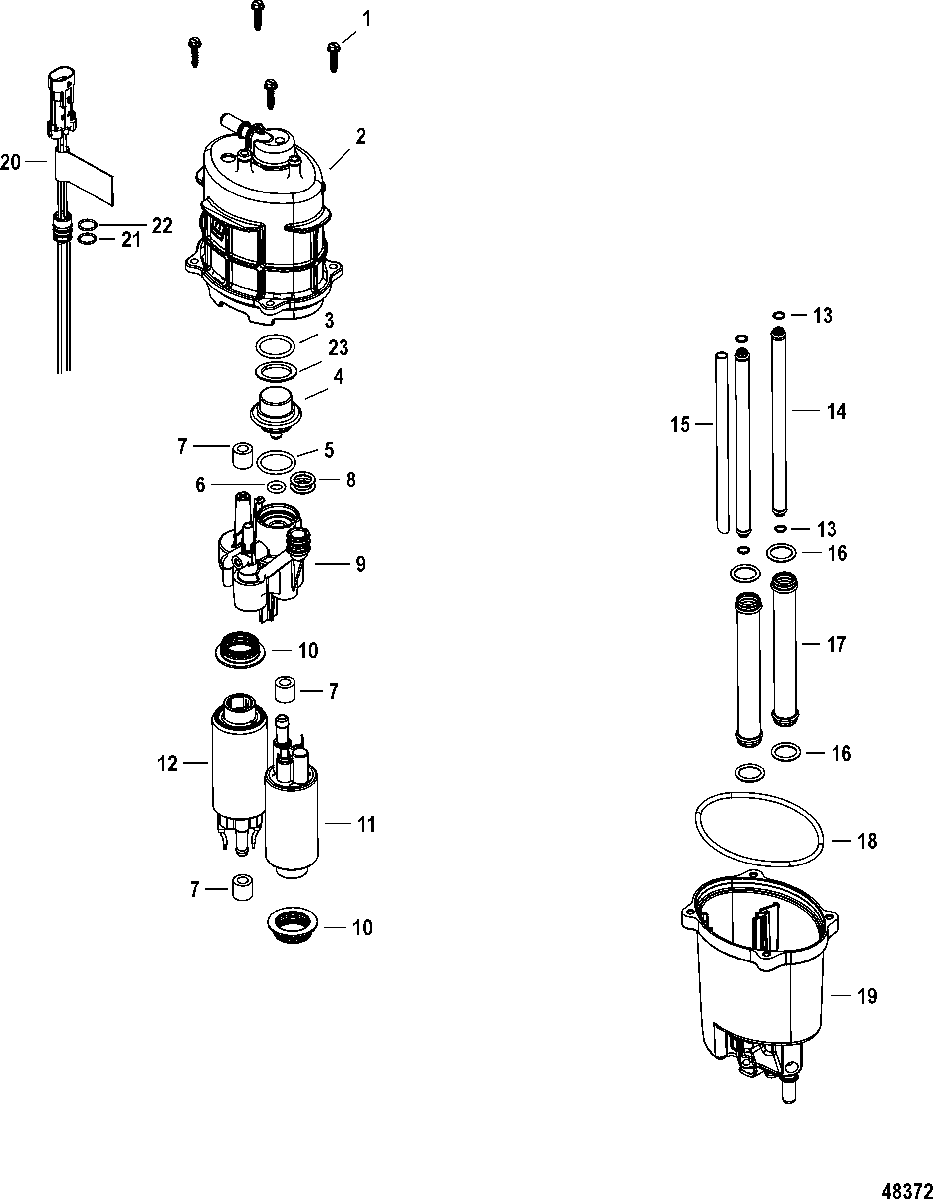

Fuel Supply Module для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up

  • №
    Артикул
    Название
  • -
    8M0132732 MODULE, Fuel Supply
    MODULE, Fuel Supply
  • 1
    10-8M0053756 SCREW, Plastite W/ HX WSR HD
    SCREW, Plastite W/ HX WSR HD
  • 2
    8M0053726 FSM TOP HOUSING
    FSM TOP HOUSING
  • 3
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 4
    8M0053749 REGULATOR ASSEMBLY
    REGULATOR ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 6
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 7
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 8
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 9
    8M0053727 FSM CAP
    FSM CAP
  • 10
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 11
    8M0103289 PUMP ASSEMBLY, Low Pressure
    PUMP ASSEMBLY, Low Pressure
  • 12
    8M0103288 PUMP ASSEMBLY, High Pressure
    PUMP ASSEMBLY, High Pressure
  • 13
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 14
    32-8M0119250 TUBE
    TUBE
  • 15
    32-8M0053755 TUBE
    TUBE
  • 16
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 17
    8M0120073 TUBE
    TUBE
  • 18
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 19
    8M0053725 FSM BOTTOM HOUSING
    FSM BOTTOM HOUSING
  • 20
    84-8M0103287 HARNESS ASSEMBLY, FSM
    HARNESS ASSEMBLY, FSM
  • 21
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 22
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 23
    NSS NOT SOLD SEPARATE, Spacer
    NOT SOLD SEPARATE, Spacer
  • -
    8M0057679 FSM SEAL KIT
    FSM SEAL KIT
