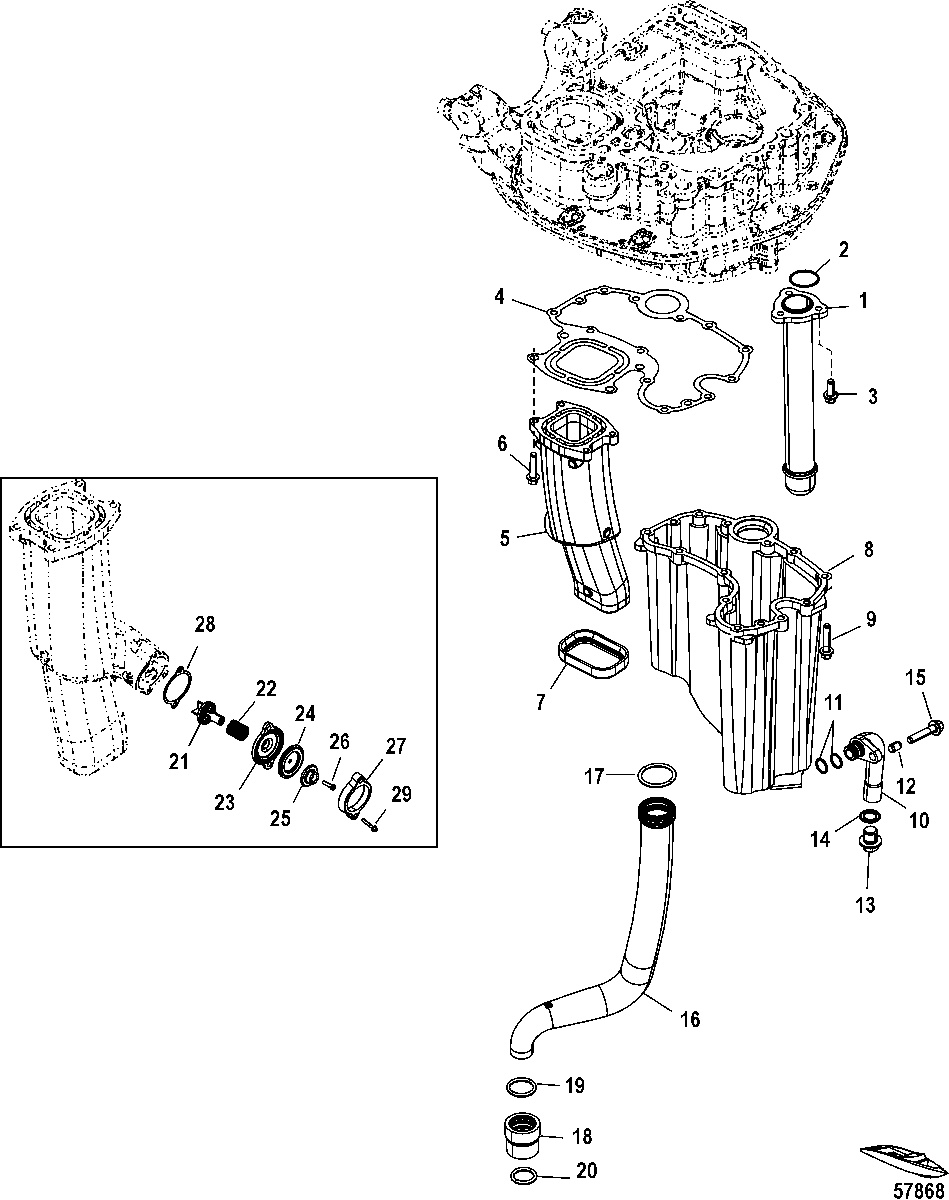

Adaptor Plate-Lower для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up

  • №
    Артикул
    Название
  • 1
    887623T03 PICKUP ASSEMBLY, Oil
    PICKUP ASSEMBLY, Oil
  • 2
    25-8M0092943 O-RING
    O-RING
  • 3
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 4
    27-889618001 GASKET, Oil Sump
    GASKET, Oil Sump
  • 5
    8M0080961 TUBE ASSEMBLY, Exhaust
    TUBE ASSEMBLY, Exhaust
  • 6
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 7
    26-880629 SEAL, Exhaust Tube
    SEAL, Exhaust Tube
  • 8
    880639T SUMP ASSEMBLY, Oil
    SUMP ASSEMBLY, Oil
  • 9
    10-8M0103808 SCREW, (M6 x 30 MM) Stainless Steel
    SCREW, (M6 x 30 MM) Stainless Steel
  • 10
    887753A02 TUBE ASSEMBLY, Oil Drain
    (Long)
    TUBE ASSEMBLY, Oil Drain
    (Long)
  • 10
    8M0082193 TUBE ASSEMBLY, Oil Drain
    (X-Long/XX-Long)
    TUBE ASSEMBLY, Oil Drain
    (X-Long/XX-Long)
  • 11
    25-892446 O-RING, (14 X 1.78 MM)
    O-RING, (14 X 1.78 MM)
  • 12
    17-892228 PIN, Dowel
    PIN, Dowel
  • 13
    888592005 PLUG ASSEMBLY, Oil Drain
    PLUG ASSEMBLY, Oil Drain
  • 14
    26-888593 SEAL, Drain Plug
    SEAL, Drain Plug
  • 15
    10-8M0103808 SCREW, (M6 x 30 MM) Stainless Steel
    SCREW, (M6 x 30 MM) Stainless Steel
  • 16
    32-885541A01 TUBE ASSEMBLY, Water (20.00 Inch)
    (Long)
    TUBE ASSEMBLY, Water (20.00 Inch)
    (Long)
  • 16
    32-885541A02 TUBE ASSEMBLY, Water (25.00 Inch)
    (X-Long)
    TUBE ASSEMBLY, Water (25.00 Inch)
    (X-Long)
  • 16
    32-885541A03 TUBE ASSEMBLY, Water (30.00 Inch)
    (XX-Long)
    TUBE ASSEMBLY, Water (30.00 Inch)
    (XX-Long)
  • 17
    25-892445 O-RING
    O-RING
  • 18
    22-887987A1 COUPLING
    COUPLING
  • 19
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 20
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 21
    8M0114707 POPPET ASSEMBLY
    POPPET ASSEMBLY
  • 22
    24-64878 SPRING, (Black)
    SPRING, (Black)
  • 23
    893385001 RETAINER
    RETAINER
  • 24
    648771 DIAPHRAGM
    DIAPHRAGM
  • 25
    889706 WASHER
    WASHER
  • 26
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 27
    893384001 COVER, Poppet
    COVER, Poppet
  • 28
    27-889561 GASKET, Poppet
    GASKET, Poppet
  • 29
    10-88552535 SCREW, (M6 x 35 MM) Stainless Steel
    SCREW, (M6 x 35 MM) Stainless Steel
  • -
    27-880552A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    61-896966A07 ASSEMBLY, Long Block
    ASSEMBLY, Long Block
