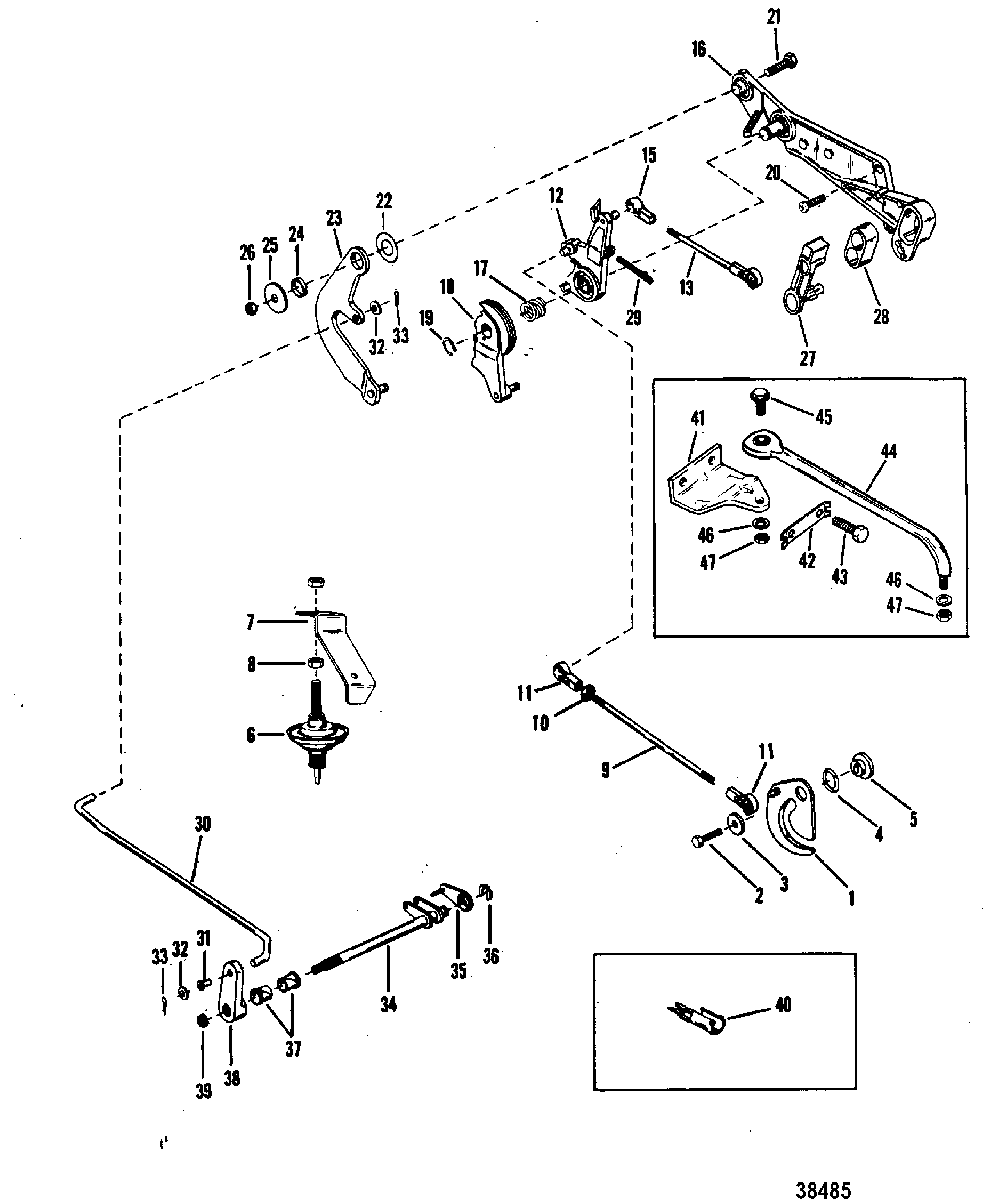

THROTTLE AND SHIFT LINKAGE(ELECTRIC) для Mariner - 25XD 7209533 THRU 0A730006
-
№АртикулНазвание
-
117764A2 CAM, Throttle
SN# US-0B114230/Aus-9467987/Can-0A719660 & BelowCAM, Throttle
SN# US-0B114230/Aus-9467987/Can-0A719660 & Below -
117764A2 CAM, Throttle
SN# US-0B114231/Aus-9467988/Can-0A719661 & UpCAM, Throttle
SN# US-0B114231/Aus-9467988/Can-0A719661 & Up -
210-400035 SCREW, (M5 x 16)
SN# US-0B114230/Aus-9467987/Can-0A719660 & BelowSCREW, (M5 x 16)
SN# US-0B114230/Aus-9467987/Can-0A719660 & Below -
210-4000117 SCREW, (M5 x 20)
SN# US-0B114231/Aus-9467988/Can-0A719661 & UpSCREW, (M5 x 20)
SN# US-0B114231/Aus-9467988/Can-0A719661 & Up -
312-87791 WASHER, THROTTLE CAM SCREWWASHER, THROTTLE CAM SCREW
-
413-69150 WAVE WASHER, THROTTLE CAM SCREWWAVE WASHER, THROTTLE CAM SCREW
-
517764A2 BUSHING, THROTTLE CAM SCREWBUSHING, THROTTLE CAM SCREW
-
692425 DASHPOTDASHPOT
-
793001 BRACKET, DASHPOTBRACKET, DASHPOT
-
811-22053 NUT, (.312-24), DASHPOT TERMINALNUT, (.312-24), DASHPOT TERMINAL
-
998463A2 ROD ASSEMBLY, ThrottleROD ASSEMBLY, Throttle
-
1011-68219 NUT, (#10-32) Stainless Steel, LOCK-THROTTLE RODNUT, (#10-32) Stainless Steel, LOCK-THROTTLE ROD
-
118M0084742 SOCKET, THROTTLE RODSOCKET, THROTTLE ROD
-
12433601 LEVER, CONTROLLEVER, CONTROL
-
13817429 TIMING RODTIMING ROD
-
158M0084742 SOCKET, TIMING RODSOCKET, TIMING ROD
-
1642026A2 PLATFORM, CONTROLPLATFORM, CONTROL
-
1724-89540 SPRING, SPARK ADVANCESPRING, SPARK ADVANCE
-
1842343 LEVER, ACTUATINGLEVER, ACTUATING
-
1953-46250 RING, Retaining, ACTUATING AND CONTROL LEVERRING, Retaining, ACTUATING AND CONTROL LEVER
-
2010-4000171 SCREW, (M6 x 16), CONTROL PLATFORMSCREW, (M6 x 16), CONTROL PLATFORM
-
2010-4000329 SCREW, (M6 x 20), CONTROL PLATFORMSCREW, (M6 x 20), CONTROL PLATFORM
-
2110-40007127 SCREW, SHIFT LEVER TO PLATFORM (16MM)SCREW, SHIFT LEVER TO PLATFORM (16MM)
-
2212-95093 WASHER, SHIFT LEVER TO PLATFORMWASHER, SHIFT LEVER TO PLATFORM
-
2343424 LEVER, SHIFTLEVER, SHIFT
-
2423-95091 SLEEVE, SHIFT LEVER TO PLATFORMSLEEVE, SHIFT LEVER TO PLATFORM
-
2512-35280 WASHER, (.255 x .620 x .030) Stainless Steel, SHIFT LEVER TO SCREWWASHER, (.255 x .620 x .030) Stainless Steel, SHIFT LEVER TO SCREW
-
2611-401386 NUT, (M6), SHIFT LEVER SCREWNUT, (M6), SHIFT LEVER SCREW
-
2742846A2 COVER ASSEMBLYCOVER ASSEMBLY
-
2839519 CUP, RETAINERCUP, RETAINER
-
2910-118591 SCREW, (.190-32 x 1.75), IDLE STOP - CONTROL LEVERSCREW, (.190-32 x 1.75), IDLE STOP - CONTROL LEVER
-
3017724A1 SHIFT LINKSHIFT LINK
-
3123-96202 BUSHING, NYLON - SHIFT LINKBUSHING, NYLON - SHIFT LINK
-
3212-89302 WASHER, (.203 x .406 x .040), SHIFT LINKWASHER, (.203 x .406 x .040), SHIFT LINK
-
3318-210711 COTTER PIN, SHIFT LINKCOTTER PIN, SHIFT LINK
-
3495027A6 SHIFT SHAFT ASSEMBLY, HORIZONTALSHIFT SHAFT ASSEMBLY, HORIZONTAL
-
3595023 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
3653-95019 RING, Retaining, LEVER TO SHIFT SHAFTRING, Retaining, LEVER TO SHIFT SHAFT
-
3723-60762 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
3817724A1 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
3911-401385 NUT, (M5), SHIFT SHAFTNUT, (M5), SHIFT SHAFT
-
40424291 RETAINER, CABLERETAINER, CABLE
-
4196186A2 BRACKET ASSEMBLY, ATTACHINGBRACKET ASSEMBLY, ATTACHING
-
4296201 STRAP, KeySTRAP, Key
-
4310-1993325 SCREW, (M10 x 25), BRACKETSCREW, (M10 x 25), BRACKET
-
4441323A03 LINK ROD ASSEMBLY, STEERINGLINK ROD ASSEMBLY, STEERING
-
4510-849838 SCREW, (.375-24 x 1.25), LINK RODSCREW, (.375-24 x 1.25), LINK ROD
-
4612-34931 WASHER, (.406 x .734 x .063) Stainless Steel, SCREW AND LINK RODWASHER, (.406 x .734 x .063) Stainless Steel, SCREW AND LINK ROD
-
4711-8M0042636 NUT, (.375-24), SCREW AND LINK RODNUT, (.375-24), SCREW AND LINK ROD
