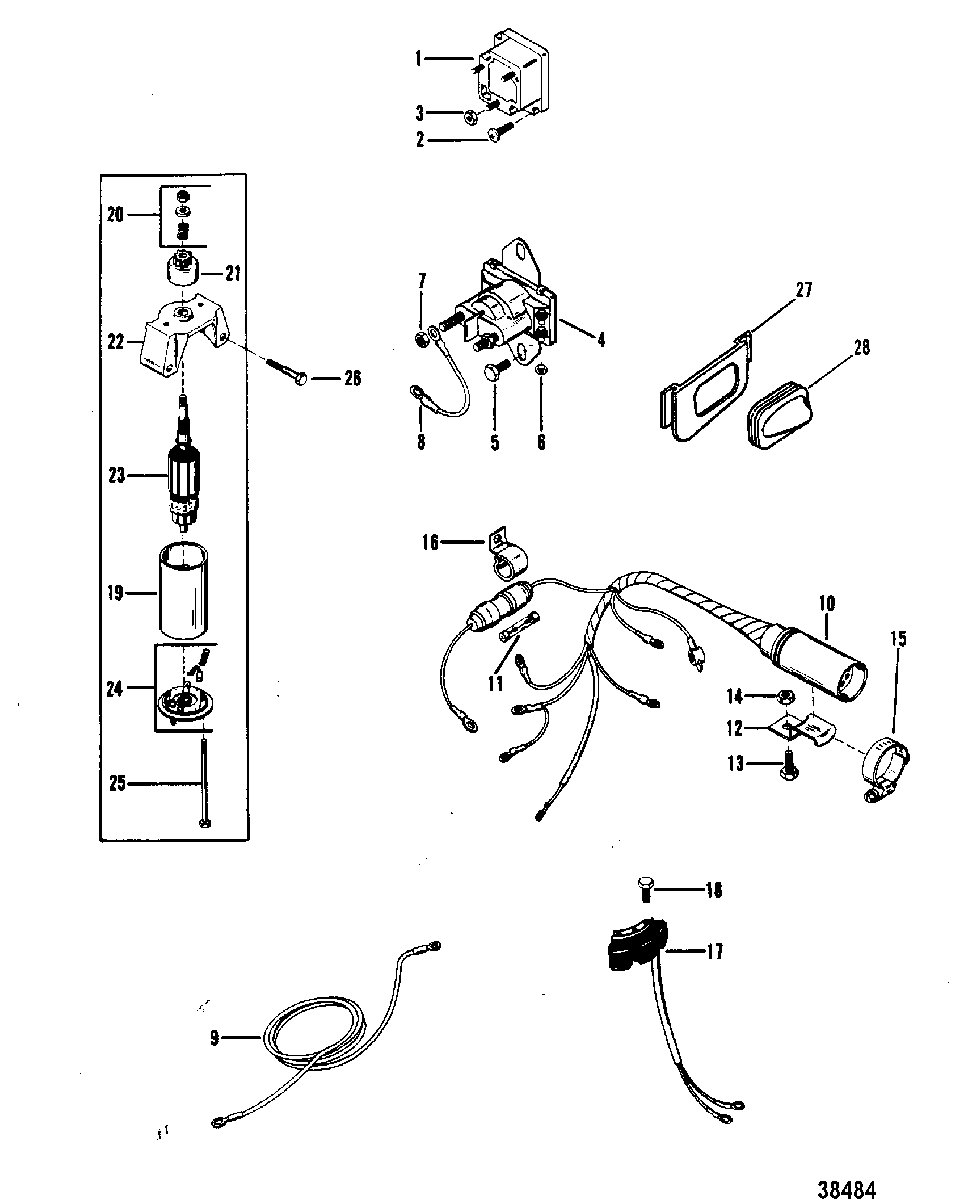

ELECTRIC COMPONENTS для Mariner - 25XD 7209533 THRU 0A730006

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 2
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
    SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
  • 3
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALS
    NUT, (#10-32) Brass, RECTIFIER TERMINALS
  • 4
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 5
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 6
    11-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
    NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
  • 7
    11-64015 NUT, (.250-20), STARTER SOLENOID TERMINAL
    NUT, (.250-20), STARTER SOLENOID TERMINAL
  • 8
    84-88809A5 WIRE ASSEMBLY, YELLOW
    WIRE ASSEMBLY, YELLOW
  • 9
    84-88439A27 CABLE ASSEMBLY, Battery, RED
    CABLE ASSEMBLY, Battery, RED
  • 9
    84-88439A28 CABLE ASSEMBLY, Battery, BLACK
    CABLE ASSEMBLY, Battery, BLACK
  • 10
    84-92436A5 HARNESS ASSEMBLY, ENGINE
    HARNESS ASSEMBLY, ENGINE
  • 11
    88-95085 FUSE
    FUSE
  • 12
    92439 BRACKET, WIRING HARNESS
    BRACKET, WIRING HARNESS
  • 13
    10-4000327 SCREW, (M6 x 14), BRACKET
    SCREW, (M6 x 14), BRACKET
  • 14
    11-401386 NUT, (M6), BRACKET SCREW
    NUT, (M6), BRACKET SCREW
  • 15
    54-815504310 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 16
    54-55098 J CLIP, WIRING HARNESS
    J CLIP, WIRING HARNESS
  • 17
    86704A10 STATOR ASSEMBLY, AUXILIARY
    STATOR ASSEMBLY, AUXILIARY
  • 18
    10-4000123 SCREW, (M5 x 30), STATOR ATTACHING
    SCREW, (M5 x 30), STATOR ATTACHING
  • 19
    50-8M0033984 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 20
    96561 DRIVE KIT
    DRIVE KIT
  • 21
    96562 DRIVE
    DRIVE
  • 22
    96563T END CAP
    END CAP
  • 23
    96565 ARMATURE
    ARMATURE
  • 24
    96564T END CAP, CUMMUTATOR W/SPRINGS AND BRUSHES
    END CAP, CUMMUTATOR W/SPRINGS AND BRUSHES
  • 25
    10-96566 THRU BOLT
    THRU BOLT
  • 26
    10-421251 SCREW, (M8 x 55), STARTER MOTOR ATTACHING
    SCREW, (M8 x 55), STARTER MOTOR ATTACHING
  • 27
    25-416042 PLATE, BOTTOM COWL
    (MERCURY)
    PLATE, BOTTOM COWL
    (MERCURY)
  • 27
    25-416042 PLATE, BOTTOM COWL
    (MARINER)
    PLATE, BOTTOM COWL
    (MARINER)
  • 28
    25-93527002 GROMMET, BOTTOM COWL (RUBBER)
    GROMMET, BOTTOM COWL (RUBBER)
