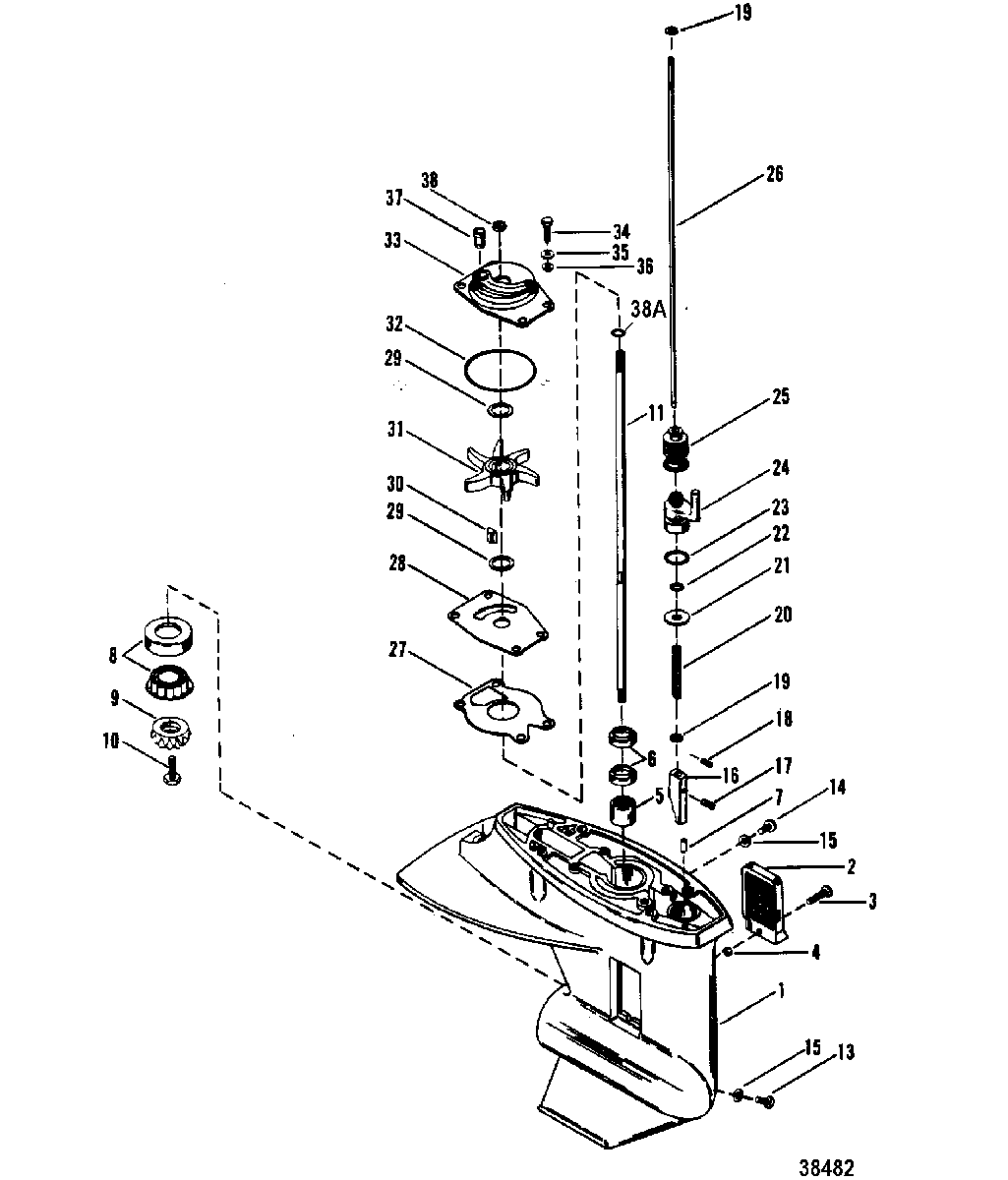

GEAR HOUSING(DRIVESHAFT) для Mariner - 25XD 7209533 THRU 0A730006

№

Артикул

Название
-

1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT)(MERCURY)

GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT)(MERCURY)

203 880 ₽
-

1665-8669T14 GEAR HOUSNIG, COMPLETE
(LONG)(MERCURY)

GEAR HOUSNIG, COMPLETE
(LONG)(MERCURY)

204 890 ₽
-

1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT)(MARINER)

GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT)(MARINER)

203 880 ₽
-

1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG(MARINER)

GEAR HOUSING ASSEMBLY, COMPLETE
(LONG(MARINER)

204 890 ₽
1

1600-8M0083538 GEAR HOUSING ASSEMBLY, Mercury, BASIC

GEAR HOUSING ASSEMBLY, Mercury, BASIC

87 110 ₽
1

1600-8M0083538 GEAR HOUSING ASSEMBLY, Mariner, BASIC

GEAR HOUSING ASSEMBLY, Mariner, BASIC

87 110 ₽
2

35-41134 SCREEN, WATER INLET
(STARBOARD)

SCREEN, WATER INLET
(STARBOARD)

430 ₽
2

35-41133 SCREEN, Water Inlet Port, WATER INLET
(PORT)

SCREEN, Water Inlet Port, WATER INLET
(PORT)

430 ₽
3

10-40031112 SCREW, (M5 x 40), SCREEN TO GEAR HOUSING

SCREW, (M5 x 40), SCREEN TO GEAR HOUSING

210 ₽
4

11-400263 NUT, (M5), SCREEEN SCREW

NUT, (M5), SCREEEN SCREW

0 ₽
5

31-41326 BEARING, Roller, UPPER

BEARING, Roller, UPPER

1 960 ₽
6

26-99325 SEAL, GEAR HOUSING

SEAL, GEAR HOUSING

740 ₽
7

17-8M0084726 PIN, Dowel (.187 x .530), GEAR HOUSING

PIN, Dowel (.187 x .530), GEAR HOUSING

370 ₽
8

31-98294A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

2 140 ₽
9

43-98302 GEAR, Pinion

GEAR, Pinion

7 220 ₽
10

10-49908 SCREW, (.250-28 x .750), PINION GEAR

SCREW, (.250-28 x .750), PINION GEAR

190 ₽
11

45-99199 DRIVESHAFT
(SHORT SHAFT)

DRIVESHAFT
(SHORT SHAFT)

71 590 ₽
11

45-99198 DRIVESHAFT
(LONG SHAFT)

DRIVESHAFT
(LONG SHAFT)

36 320 ₽
13

22-8M0058389 SCREW, Magnetic, DRAIN

SCREW, Magnetic, DRAIN

1 720 ₽
14

10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER

SCREW, (.375-16 x .250), GREASE FILLER

1 000 ₽
15

12-191833 WASHER, DRAIN AND FILLER SCREW

WASHER, DRAIN AND FILLER SCREW

60 ₽
16

85562A1 CAM ASSEMBLY, SHIFT

CAM ASSEMBLY, SHIFT

0 ₽
17

17-85096 PIN, Drive, SHIFT CAM

PIN, Drive, SHIFT CAM

290 ₽
18

17-85593 PIN, (.078 x .437), SHIFT SHAFT

PIN, (.078 x .437), SHIFT SHAFT

260 ₽
19

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT

WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT

120 ₽
20

24-93007 SPRING, SHIFT SHAFT

SPRING, SHIFT SHAFT

330 ₽
21

12-85091 WASHER, SHIFT SHAFT

WASHER, SHIFT SHAFT

190 ₽
22

25-85594 O-RING, (.239 x .174), SHIRT SHAFT

O-RING, (.239 x .174), SHIRT SHAFT

400 ₽
23

25-35276 O-RING, (.734 x .139), SHIFT SHAFT RETAINER

O-RING, (.734 x .139), SHIFT SHAFT RETAINER

350 ₽
24

93878 RETAINER, SHIFT SHAFT

RETAINER, SHIFT SHAFT

830 ₽
25

85552001 BOOT, SHIFT SHAFT

BOOT, SHIFT SHAFT

600 ₽
26

85126 SHIFT SHAFT
(SHORT SHAFT)

SHIFT SHAFT
(SHORT SHAFT)

0 ₽
26

86293 SHIFT SHAFT
(LONG SHAFT)

SHIFT SHAFT
(LONG SHAFT)

0 ₽
27

27-993261 GASKET, WATER PUMP

GASKET, WATER PUMP

150 ₽
28

85083 FACE PLATE

FACE PLATE

760 ₽
29

12-8M0027721 WASHER, IMPELLER

WASHER, IMPELLER

180 ₽
30

28-8M0032838 KEY, IMPELLER DRIVE

KEY, IMPELLER DRIVE

270 ₽
31

47-8508910 IMPELLER

IMPELLER

2 470 ₽
31

47-8508910 IMPELLER (COLD WATER)

IMPELLER (COLD WATER)

2 470 ₽
32

25-69202 O-RING, WATER PUMP

O-RING, WATER PUMP

480 ₽
33

46-99157A02 PUMP ASSEMBLY, Water

PUMP ASSEMBLY, Water

5 670 ₽
34

10-400035 SCREW, (M5 x 16), WATER PUMP TO GEAR HOUSING

SCREW, (M5 x 16), WATER PUMP TO GEAR HOUSING

0 ₽
35

12-89302 WASHER, (.203 x .406 x .040), WATER PUMP SCEW

WASHER, (.203 x .406 x .040), WATER PUMP SCEW

130 ₽
36

23-85095 BUSHING, WATER PUMP SCREW

BUSHING, WATER PUMP SCREW

170 ₽
37

26-85090001 SEAL, WATER TUBE

SEAL, WATER TUBE

460 ₽
38

25-86203 O-RING, DRIVESHAFT - RUBBER

O-RING, DRIVESHAFT - RUBBER

130 ₽
38A

25-99691 O-RING

O-RING

220 ₽
-

46-99157T2 REPAIR KIT, Water Pump

REPAIR KIT, Water Pump

9 220 ₽
-

26-85090A2 SEAL KIT

SEAL KIT

4 050 ₽
-

27-41499A88 GASKET SET

GASKET SET

11 760 ₽
