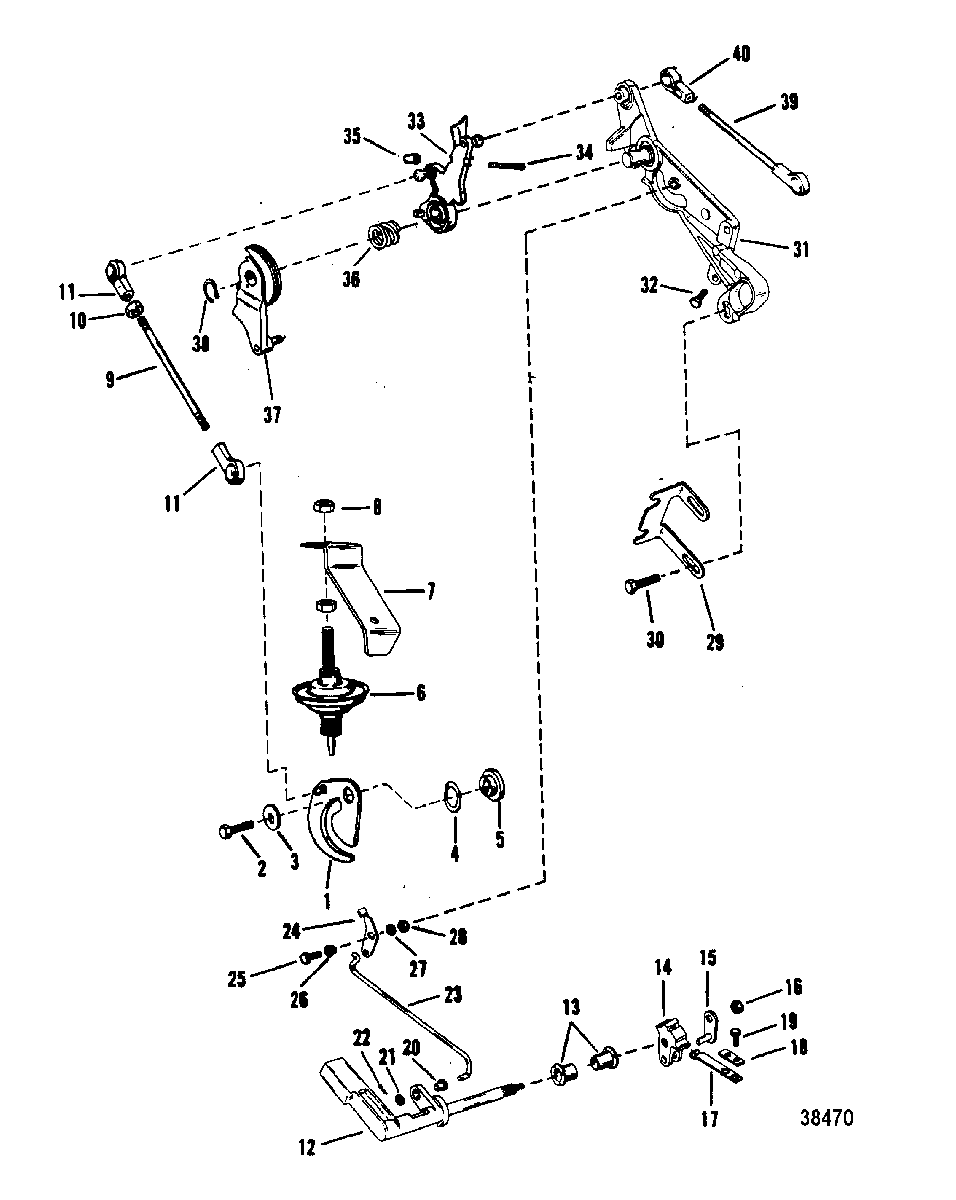

THROTTLE AND SHIFT LINKAGE(MARINER)(MANUAL) для Mariner - 25XD 6443973 THRU 0B238463

  • №
    Артикул
    Название
  • 1
    17764A2 CAM, Throttle
    SN# US-0B114230/Aus-9467987/Can-0A719660 & Below
    CAM, Throttle
    SN# US-0B114230/Aus-9467987/Can-0A719660 & Below
  • 1
    17764A2 CAM, Throttle
    SN# US-0B114231/Aus-9467988/Can-0A719661 & Up
    CAM, Throttle
    SN# US-0B114231/Aus-9467988/Can-0A719661 & Up
  • 2
    10-400035 SCREW, (M5 x 16)
    SN# US-0B114230/Aus-9467987/Can-0A719660 & Below
    SCREW, (M5 x 16)
    SN# US-0B114230/Aus-9467987/Can-0A719660 & Below
  • 2
    10-4000117 SCREW, (M5 x 20)
    SN# US-0B114231/Aus-9467988/Can-0A719661 & Up
    SCREW, (M5 x 20)
    SN# US-0B114231/Aus-9467988/Can-0A719661 & Up
  • 3
    12-87791 WASHER, THROTTLE CAM SCREW
    WASHER, THROTTLE CAM SCREW
  • 4
    13-69150 WAVE WASHER, THROTTLE CAM SCREW
    WAVE WASHER, THROTTLE CAM SCREW
  • 5
    17764A2 BUSHING, THROTTLE CAM SCREW
    BUSHING, THROTTLE CAM SCREW
  • 6
    92425 DASHPOT
    DASHPOT
  • 7
    93001 BRACKET, DASHPOT
    BRACKET, DASHPOT
  • 8
    11-22053 NUT, (.312-24), DASHPOT TERMINAL
    NUT, (.312-24), DASHPOT TERMINAL
  • 9
    98463A2 ROD ASSEMBLY, Throttle
    ROD ASSEMBLY, Throttle
  • 10
    11-68219 NUT, (#10-32) Stainless Steel, LOCK - THROTTLE ROD
    NUT, (#10-32) Stainless Steel, LOCK - THROTTLE ROD
  • 11
    8M0084742 SOCKET, THROTTLE ROD
    SOCKET, THROTTLE ROD
  • 12
    423301 HANDLE, SHIFT
    HANDLE, SHIFT
  • 13
    23-60762 BUSHING, SHIFT HANDLE
    BUSHING, SHIFT HANDLE
  • 14
    423291 LEVER, SHIFT
    LEVER, SHIFT
  • 15
    42358 BACKPLATE, SHIFT LEVER
    BACKPLATE, SHIFT LEVER
  • 16
    11-401385 NUT, (M5), SHIFT LEVER
    NUT, (M5), SHIFT LEVER
  • 17
    24-39627 SPRING, DETENT
    SPRING, DETENT
  • 18
    39601 PLATE, DETENT SPRING
    PLATE, DETENT SPRING
  • 19
    10-400011 SCREW, (M5 x 8), DETENT SPRING AND PLATE
    SCREW, (M5 x 8), DETENT SPRING AND PLATE
  • 20
    23-96202 BUSHING, SHIFT LINK
    BUSHING, SHIFT LINK
  • 21
    12-89302 WASHER, (.203 x .406 x .040), SHIFT LINK
    WASHER, (.203 x .406 x .040), SHIFT LINK
  • 22
    18-210711 COTTER PIN, SHIFT LINK
    COTTER PIN, SHIFT LINK
  • 23
    11042 LINK, SHIFT
    LINK, SHIFT
  • 24
    110501 LEVER, THROTTLE LIMIT
    LEVER, THROTTLE LIMIT
  • 25
    10-4000117 SCREW, (M5 x 20), THROTTLE LIMIT LEVER
    SCREW, (M5 x 20), THROTTLE LIMIT LEVER
  • 26
    23-85095 BUSHING, THROTTLE LIMIT LEVER
    BUSHING, THROTTLE LIMIT LEVER
  • 27
    12-89302 WASHER, (.203 x .406 x .040), THROTTLE LIMIT SCREW
    WASHER, (.203 x .406 x .040), THROTTLE LIMIT SCREW
  • 28
    11-401385 NUT, (M5)
    NUT, (M5)
  • 29
    11039 BRACKET, CABLE
    BRACKET, CABLE
  • 30
    10-4000177 SCREW, (M6 x 25), CABLE BRACKET
    SCREW, (M6 x 25), CABLE BRACKET
  • 31
    42026A2 PLATFORM, CONTROL
    PLATFORM, CONTROL
  • 32
    10-4000171 SCREW, (M6 x 16), PLATFORM TO BLOCK
    SCREW, (M6 x 16), PLATFORM TO BLOCK
  • 33
    110383 LEVER, CONTROL
    LEVER, CONTROL
  • 34
    10-118591 SCREW, (.190-32 x 1.75), CONTROL LEVER
    SCREW, (.190-32 x 1.75), CONTROL LEVER
  • 35
    48039 CAP, CONTROL LEVER SCREW
    CAP, CONTROL LEVER SCREW
  • 36
    24-89540 SPRING, SPARK ADVANCE
    SPRING, SPARK ADVANCE
  • 37
    42343 LEVER, ACTUATING
    LEVER, ACTUATING
  • 38
    53-46250 RING, Retaining, ACTUATING LEVER
    RING, Retaining, ACTUATING LEVER
  • 39
    817429 TIMING ROD
    TIMING ROD
  • 40
    8M0084742 SOCKET, TIMING LINK
    SOCKET, TIMING LINK
