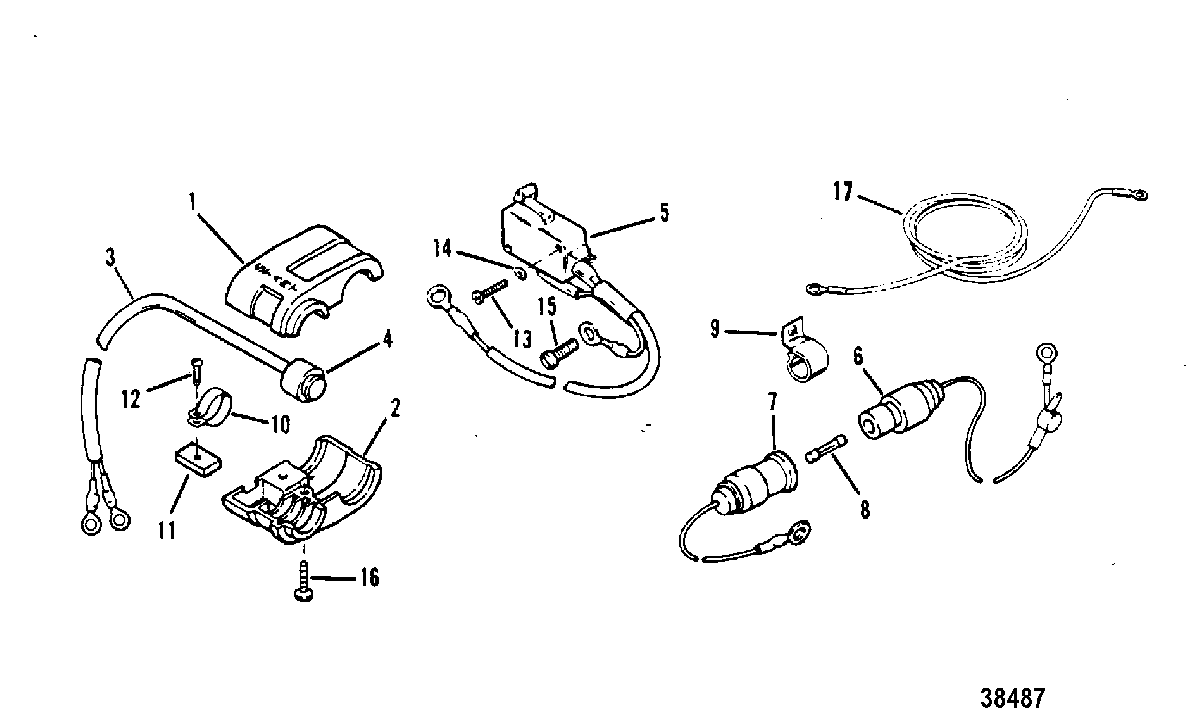

HARNESS AND START COMPONENTS для Mariner - 25XD 6443973 THRU 0B238463

  • №
    Артикул
    Название
  • 1
    95815 COVER, START SWITCH (TOP)
    COVER, START SWITCH (TOP)
  • 2
    95828 COVER, START SWITCH (BOTTOM)
    COVER, START SWITCH (BOTTOM)
  • 3
    87-95810A1 SWITCH ASSEMBLY, Start
    SWITCH ASSEMBLY, Start
  • 4
    11099A1 BOOT ASSEMBLY, START SWITCH
    BOOT ASSEMBLY, START SWITCH
  • 5
    87-88890A2 SWITCH ASSEMBLY
    (MERCURY)
    SWITCH ASSEMBLY
    (MERCURY)
  • 5
    87-93479A4 SWITCH ASSEMBLY
    (MARINER SHIFT SIDE)
    SWITCH ASSEMBLY
    (MARINER SHIFT SIDE)
  • 6
    84-95084A2 CABLE ASSEMBLY, FUSE - EARLY MODELS
    CABLE ASSEMBLY, FUSE - EARLY MODELS
  • 7
    84-95084A3 CABLE ASSEMBLY, FUSE - EARLY MODELS
    CABLE ASSEMBLY, FUSE - EARLY MODELS
  • 8
    88-79091 FUSE, 20 Ampere, EARLY MODELS
    FUSE, 20 Ampere, EARLY MODELS
  • 9
    54-55098 J CLIP, WIRE ASSEMBLY - EARLY MODELS
    J CLIP, WIRE ASSEMBLY - EARLY MODELS
  • 10
    95814 STRAP, CLAMP
    STRAP, CLAMP
  • 11
    95813 FASTENER, CLAMP STRAP
    FASTENER, CLAMP STRAP
  • 12
    10-40019108 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 13
    10-4005727 SCREW
    SCREW
  • 14
    12-45771 WASHER
    WASHER
  • 15
    10-62568 SCREW, (#10-16 x .375), SWITCH WIRE
    SCREW, (#10-16 x .375), SWITCH WIRE
  • 16
    10-69570 SCREW, (#10-16 x .750), COVER
    SCREW, (#10-16 x .750), COVER
  • 17
    84-79139A20 CABLE ASSEMBLY (RED) - LATER MODELS
    CABLE ASSEMBLY (RED) - LATER MODELS
