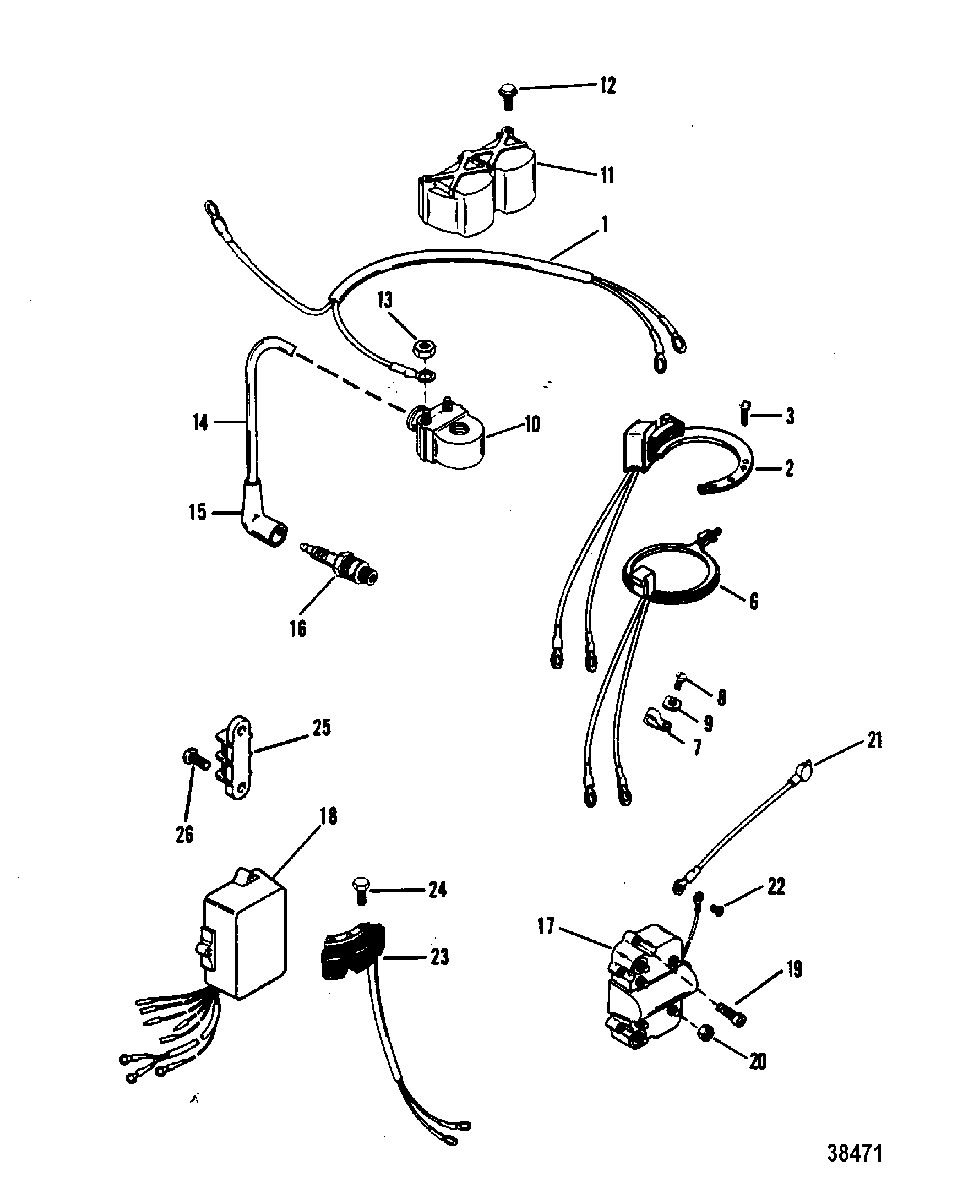

IGNITION COMPONENTS для Mariner - 25XD 6443973 THRU 0B238463
-
№АртикулНазвание
-
184-88891A1 HARNESS ASSEMBLY, PRIMARY
(W/NUT CONNECTIONS)HARNESS ASSEMBLY, PRIMARY
(W/NUT CONNECTIONS) -
286617A20 STATOR ASSEMBLYSTATOR ASSEMBLY
-
310-4000120 SCREW, (M5 x 25), STATOR ATTACHINGSCREW, (M5 x 25), STATOR ATTACHING
-
310-400015 SCREW, (M5 x 10), STATOR ATTACHING
MANUALSCREW, (M5 x 10), STATOR ATTACHING
MANUAL -
698450A10 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
754-24836 CLIP, TRIGGER LEADSCLIP, TRIGGER LEADS
-
810-77137 SCREW, (.190-16 x .620)SCREW, (.190-16 x .620)
-
98M0084613 C WASHER, CLIP SCREWC WASHER, CLIP SCREW
-
10339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
11997621 COVER, IGNITION COILCOVER, IGNITION COIL
-
1210-40007115 SCREW, (M5 x 55), IGNITION COIL COVERSCREW, (M5 x 55), IGNITION COIL COVER
-
1311-45076 NUT, (#10-32) Brass, COIL TERMINALNUT, (#10-32) Brass, COIL TERMINAL
-
1484-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
1585-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
1633-97180Q SPARK PLUGSPARK PLUG
-
1633-14103Q SPARK PLUG (CANADA AND BELGUIM)SPARK PLUG (CANADA AND BELGUIM)
-
17899883230 SWITCHBOX ASSEMBLY (WITH NUT CONNECTIONS)SWITCHBOX ASSEMBLY (WITH NUT CONNECTIONS)
-
18339-7452A19 SWITCHBOX ASSEMBLY (WITH BULLET CONNECTIONS)SWITCHBOX ASSEMBLY (WITH BULLET CONNECTIONS)
-
1910-40019108 SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCKSCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
-
2011-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALSNUT, (#10-32) Brass, SWITCH BOX TERMINALS
-
2184-88807A10 CABLE ASSEMBLY, GROUNDCABLE ASSEMBLY, GROUND
-
2210-43394 SCREW, (#10-24 x .500), GROUND WIRESCREW, (#10-24 x .500), GROUND WIRE
-
2386704A10 STATOR ASSEMBLY, AUXILIARY
(MARINER)STATOR ASSEMBLY, AUXILIARY
(MARINER) -
2410-4000123 SCREW, (M5 x 30), STATOR ATTACHING
(MARINER)SCREW, (M5 x 30), STATOR ATTACHING
(MARINER) -
2586-638131 TERMINAL BLOCK
(MARINER)TERMINAL BLOCK
(MARINER) -
2610-48409 SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
(MARINER)SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
(MARINER)
