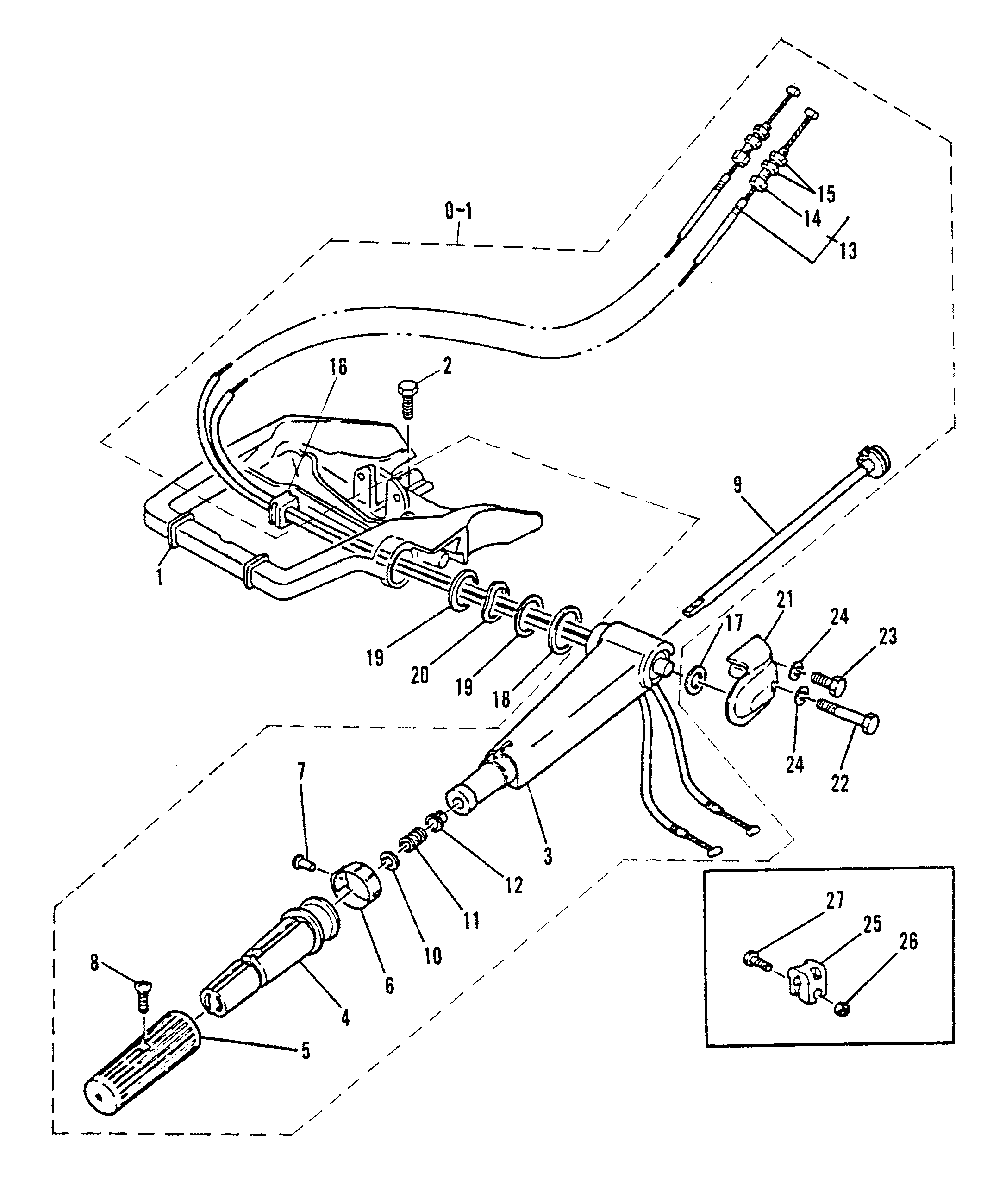

STEERING HANDLE для Mariner - 25C (THRU PROP. EXHAUST) 695-550101 THRU 555959

  • №
    Артикул
    Название
  • 1
    19113M BRACKET, STEERING
    BRACKET, STEERING
  • 2
    10-84830M BOLT
    BOLT
  • 0-1
    95673M STEERING HANDLE ASS'Y (SEE NOTE)
    STEERING HANDLE ASS'Y (SEE NOTE)
  • 3
    96664M HANDLE, STEERING
    HANDLE, STEERING
  • 4
    81585M HANDLE, THROTTLE
    HANDLE, THROTTLE
  • 5
    8M0080456 GRIP, THROTTLE HANDLE
    (SERIAL 00019911-09999999)
    GRIP, THROTTLE HANDLE
    (SERIAL 00019911-09999999)
  • 5
    8M0080456 GRIP, THROTTLE HANDLE
    (SERIAL 00000000-00019910)
    GRIP, THROTTLE HANDLE
    (SERIAL 00000000-00019910)
  • 6
    42432M INDICATOR, THROTTLE
    (SERIAL 00014871-09999999)
    INDICATOR, THROTTLE
    (SERIAL 00014871-09999999)
  • 6
    97773M INDICATOR, THROTTLE
    (SERIAL 00009921-00014870)
    INDICATOR, THROTTLE
    (SERIAL 00009921-00014870)
  • 6
    97773M INDICATOR, THROTTLE
    (SERIAL 00000000-00009920)
    INDICATOR, THROTTLE
    (SERIAL 00000000-00009920)
  • 7
    17-81907M RIVET
    RIVET
  • 8
    10-811916M SCREW
    SCREW
  • 9
    84856M LEVER, THROTTLE
    LEVER, THROTTLE
  • 10
    12-82220M WASHER, THROTTLE SHAFT
    WASHER, THROTTLE SHAFT
  • 11
    24-82095M SPRING
    SPRING
  • 12
    23-81945M BUSHING, STEERING ARM
    BUSHING, STEERING ARM
  • 13
    41892M CABLE ASS'Y, THROTTLE
    CABLE ASS'Y, THROTTLE
  • 14
    10-815139M ADJUSTER, CABLE
    ADJUSTER, CABLE
  • 15
    11-81765M NUT
    NUT
  • 16
    25-82064M GROMMET
    GROMMET
  • 17
    23-82119M SPACER
    SPACER
  • 18
    23-81861M SPACER
    SPACER
  • 19
    12-84850M WASHER
    WASHER
  • 20
    13-84851M WASHER, WAVE
    WASHER, WAVE
  • 21
    84852M RETAINER
    RETAINER
  • 22
    10-84931M BOLT
    BOLT
  • 23
    10-84058M BOLT
    BOLT
  • 24
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 25
    82895M PIECE, FRICTION (Optional Parts)
    PIECE, FRICTION (Optional Parts)
  • 26
    11-83056M NUT (Optional Parts)
    NUT (Optional Parts)
  • 27
    10-84058M BOLT (Optional Parts)
    BOLT (Optional Parts)
