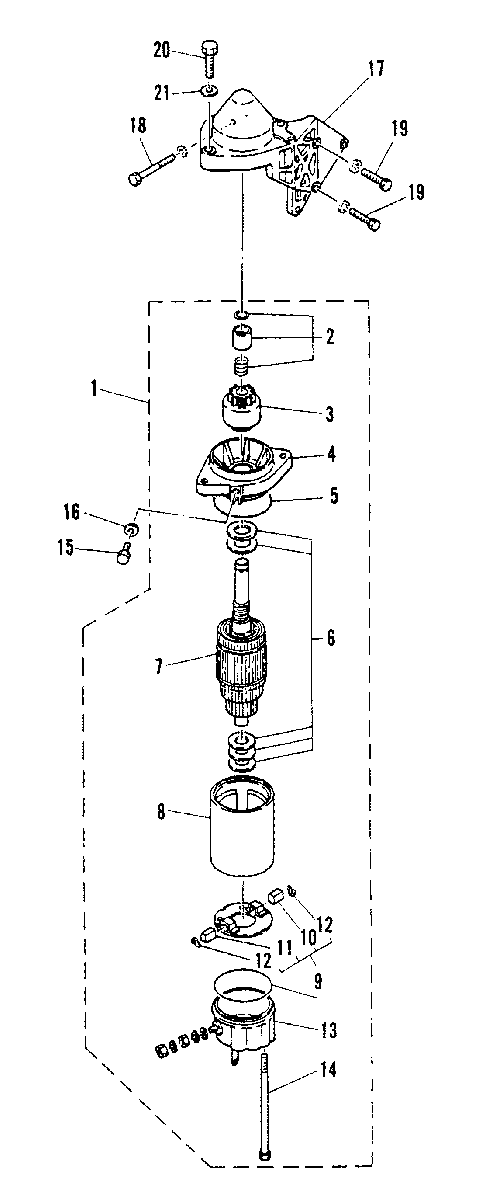

ELECTRIC START MOTOR (E-251106, EL-552121 & ABOVE) для Mariner - 25C (THRU PROP. EXHAUST) 695-550101 THRU 555959
-
№АртикулНазвание
-
150-97693M ELECTRIC MOTOR ASS'Y
(SERIAL 00009376-09999999)ELECTRIC MOTOR ASS'Y
(SERIAL 00009376-09999999) -
150-97693M ELECTRIC MOTOR ASS'Y
(SERIAL 00000000-00009375)ELECTRIC MOTOR ASS'Y
(SERIAL 00000000-00009375) -
296360M PINION STOP SETPINION STOP SET
-
397694T PINIONPINION
-
496362M COVER, FRONTCOVER, FRONT
-
525-96363M O-RINGO-RING
-
612-96364M WASHER KITWASHER KIT
-
796365M ARMATUREARMATURE
-
896366M STATORSTATOR
-
996367M BRUSH HOLDERBRUSH HOLDER
-
1096368M BRUSH, POSITIVEBRUSH, POSITIVE
-
1196369M BRUSH, NEGATIVEBRUSH, NEGATIVE
-
1224-84927M SPRING, BRUSHSPRING, BRUSH
-
1396370M COVER, REARCOVER, REAR
-
1410-84929M BOLTBOLT
-
1510-96371M BOLTBOLT
-
1612-82217M WASHERWASHER
-
1992609M BRACKET, MOTOR MOUNTINGBRACKET, MOTOR MOUNTING
-
1810-84931M BOLTBOLT
-
1910-83285M BOLTBOLT
-
2010-95416M BOLTBOLT
-
2112-82217M WASHERWASHER
